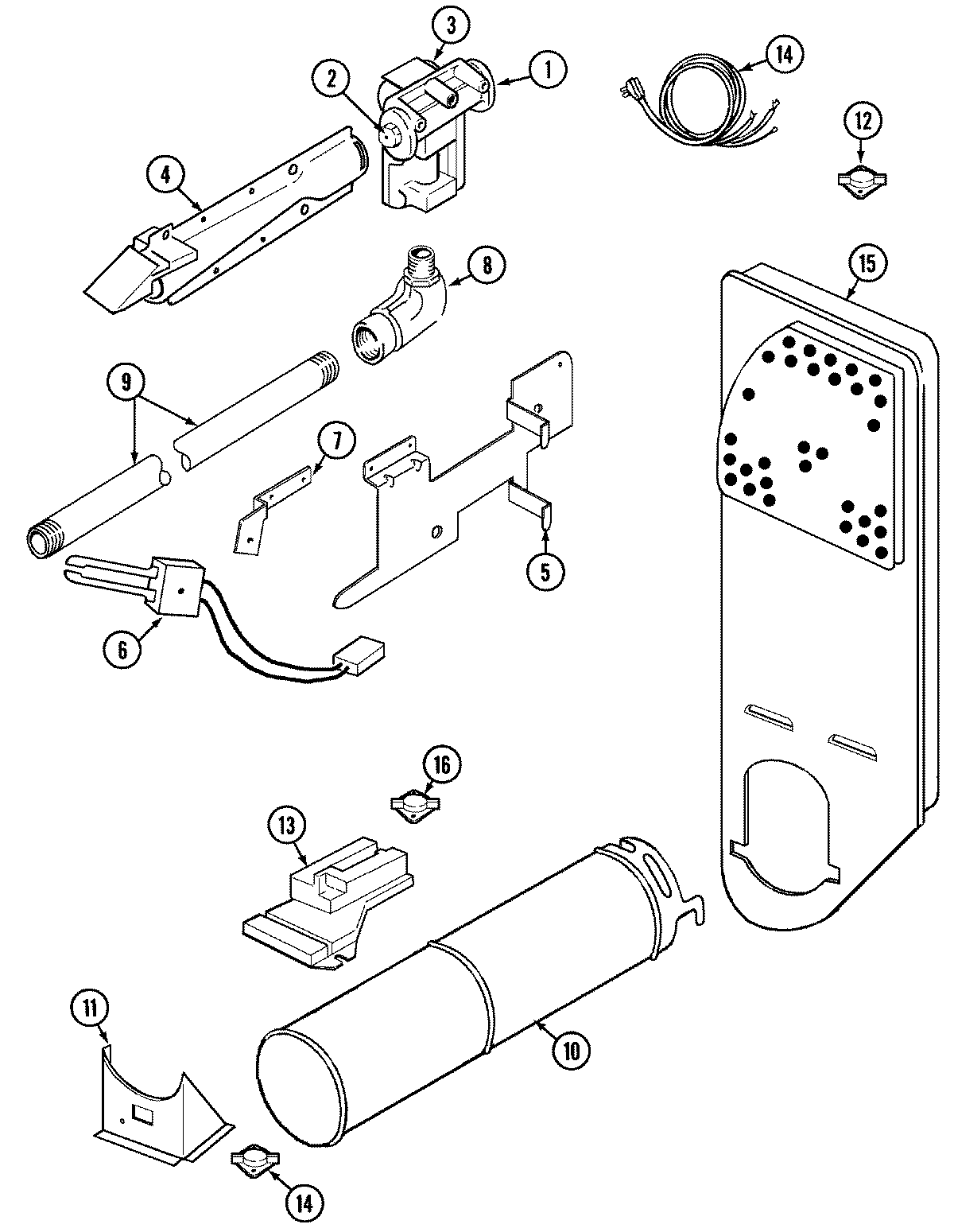

GDGM253WLP 04 – GAS CARRYING

Products

Position	Product
1	MAY 53-1686
3	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
4	MAY 63-6682
5	MAY 53-0140
6	WP31001556 Whirlpool Igniter
7	MAY 25-3034
7	MAY 25-7744
7	MAY 53-0686
8	MAY 53-0101
9	MAY 53-0173
9	MAY 53-2362
10	MAY 53-1884
10	MAY 25-3032
11	MAY 53-0139
11	MAY 53-2363
12	MAY 25-0168
12	MAY 53-0143
13	MAY 25-7741
13	WP90767 Whirlpool Screw
13	MAY 25-2134
13	WP338906 Whirlpool Dryer Gas Sensor
14	MAY 63-6259
15	MAY 53-0169
16	WP53-1096 Whirlpool Thermostat
16	LA-1053 Whirlpool Dryer Thermal Fuse
16	WP63-6766 Whirlpool LP Conversion Kit
