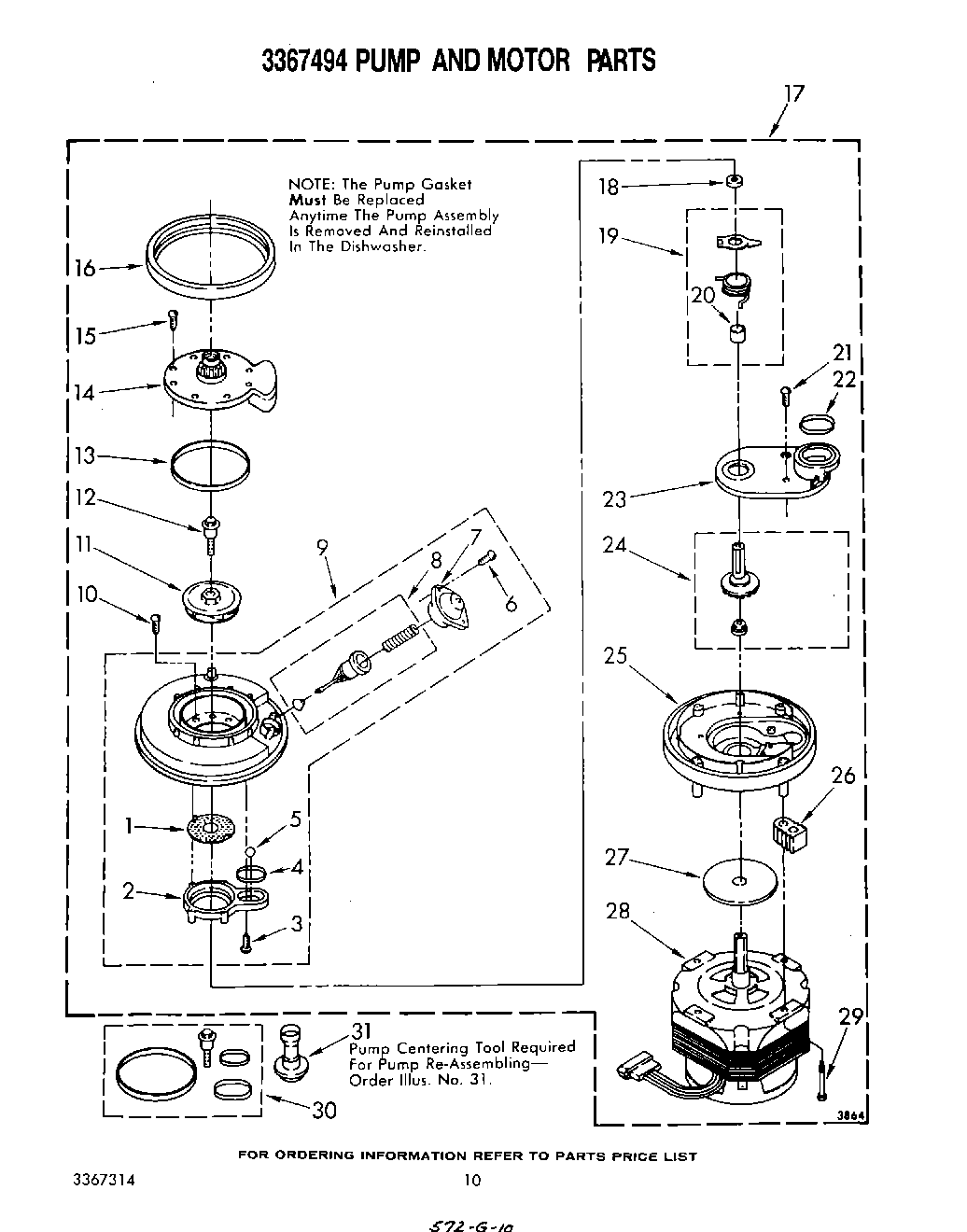

GDP6000XRP1 07 – PUMP AND MOTOR

Products

Position	Product
1	Plate, Perforated (Includes Illus. 5) (Also Order Illus. No. 30) See Note A.
2	Base, Inlet (Includes Items 1 & 5) (Also Order Illus. No. 30) See Note A.
4	WP302710 Whirlpool Dishwasher Ring Seal
5	Ball, Check
7	Cover, Valve
8	Valve Stem Kit (Includes Items 12, 13 & 22) See Note A.
9	Separator Assembly (Includes Items 12, 13 & 22) See Note A.
10	Screw, 8-18 x 1-5/8 St. Stl. (4)
12	WP3371152 Whirlpool Dishwasher Screw
13	WP302711 Whirlpool Dishwasher Ring Seal
14	Outlet, Pump (Includes Illus. 13)
15	WP9741232 Whirlpool Dishwasher Screw
16	717000 Whirlpool Dishwasher Gasket
17	Pump & Motor Assembly
18	Bushing, Grind
19	675806 Whirlpool Dishwasher Pump Impeller and Seal Kit
20	Sleeve, Drain Impeller
22	Seal, Drain Cover
23	Cover, Drain (Includes Item 33) (Also Order Item 30) See Note A.
25	Base, Pump (Includes Item 24) (Also Order Item 30) See Note A.
26	WP3367197 Whirlpool Dishwasher Support
27	W10909679 Whirlpool Dishwasher Slinger
28	Motor (Includes Illus. 24 & 27) (Also Order Illus. No. 30) See Note A. (For
29	Screw, 13-16 (4)
30	Pump Seal Kit (Includes Items 4, 12, 13 & 22)
31	Tool, Pump Centering
