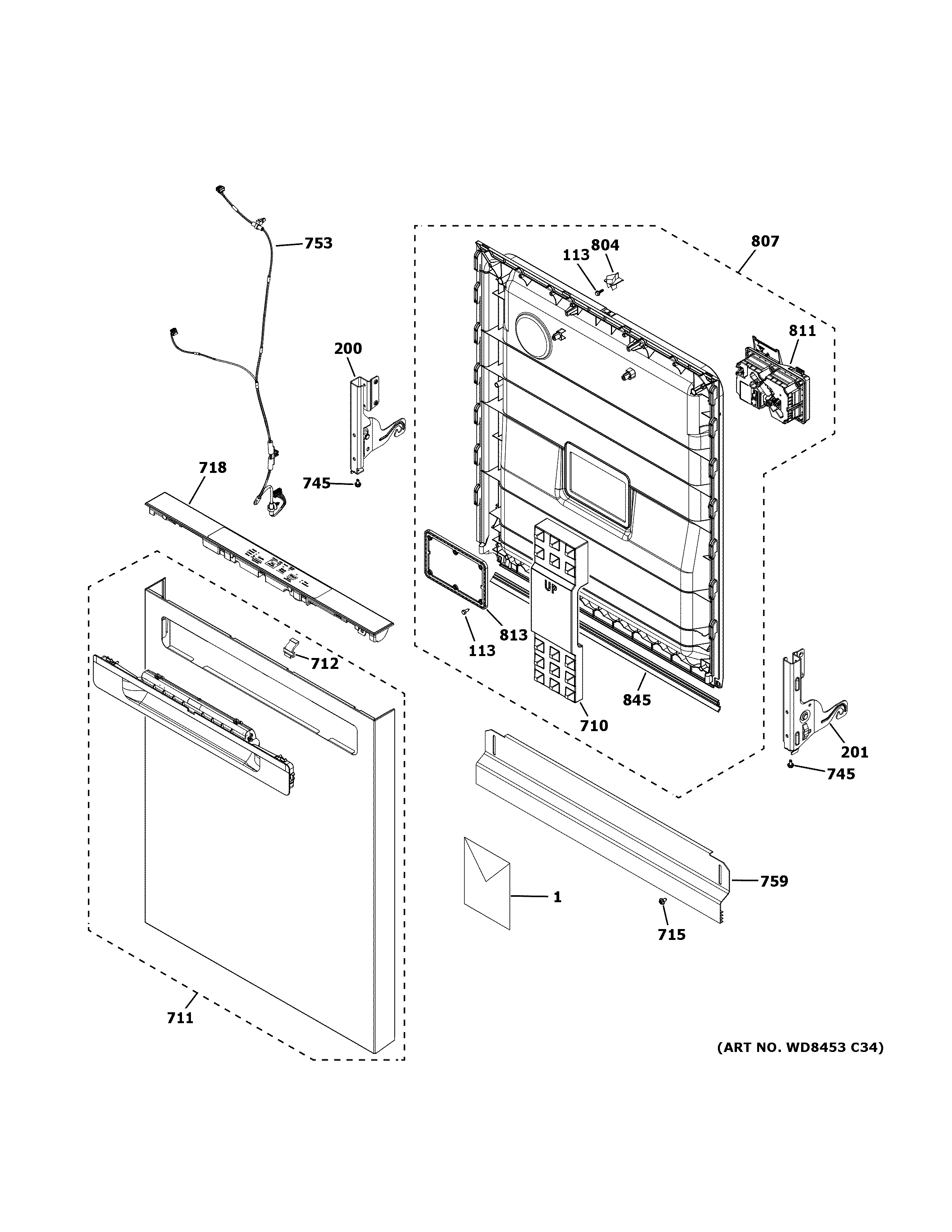

GDP630PGR7WW ESCUTCHEON & DOOR ASSEMBLY

GDP630PGR7WW ESCUTCHEON & DOOR ASSEMBLY

Written by

in

GDP630PGR7WW ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1PM OWNERS MANUAL
1PM QUICK OWNERS MANUAL
1PM INSTALL INSTRUCTIONS
1INSERT MINI MANUAL
1PM MINI MANUAL AND WIRING
113WD01X27719 GE Screw PL HXW 8-18 1/2
200WD01X27721 GE Dishwasher Door Hinge Assembly Left
201WD01X27720 GE Dishwasher Door Hinge Assembly Right
710WD01X29918 GE Door Foam Block
711WHITE OUTER DOOR PANEL
712WD01X29998 GE Door Lens
715WD02X10220 GE Dishwasher Hex Head 10-32 3/8" Screw
718WD21X33550 GE Console Cover and Configured Unit
745WD01X22514 GE Dishwasher Screw 10-32 GX IHXW 9/16 S
753WD21X32718 GE User Interface Harness
759WD27X27840 GE Dishwasher White Toekick
804WD13X10071 GE Dishwasher Door Strike
807WD27X30352 GE Dishwasher Inner Door
811DETERGENT MODULE
813WD12X10420 GE Dishwasher Detergent Plate
845WD08X21894 GE Dishwasher Door Gasket
