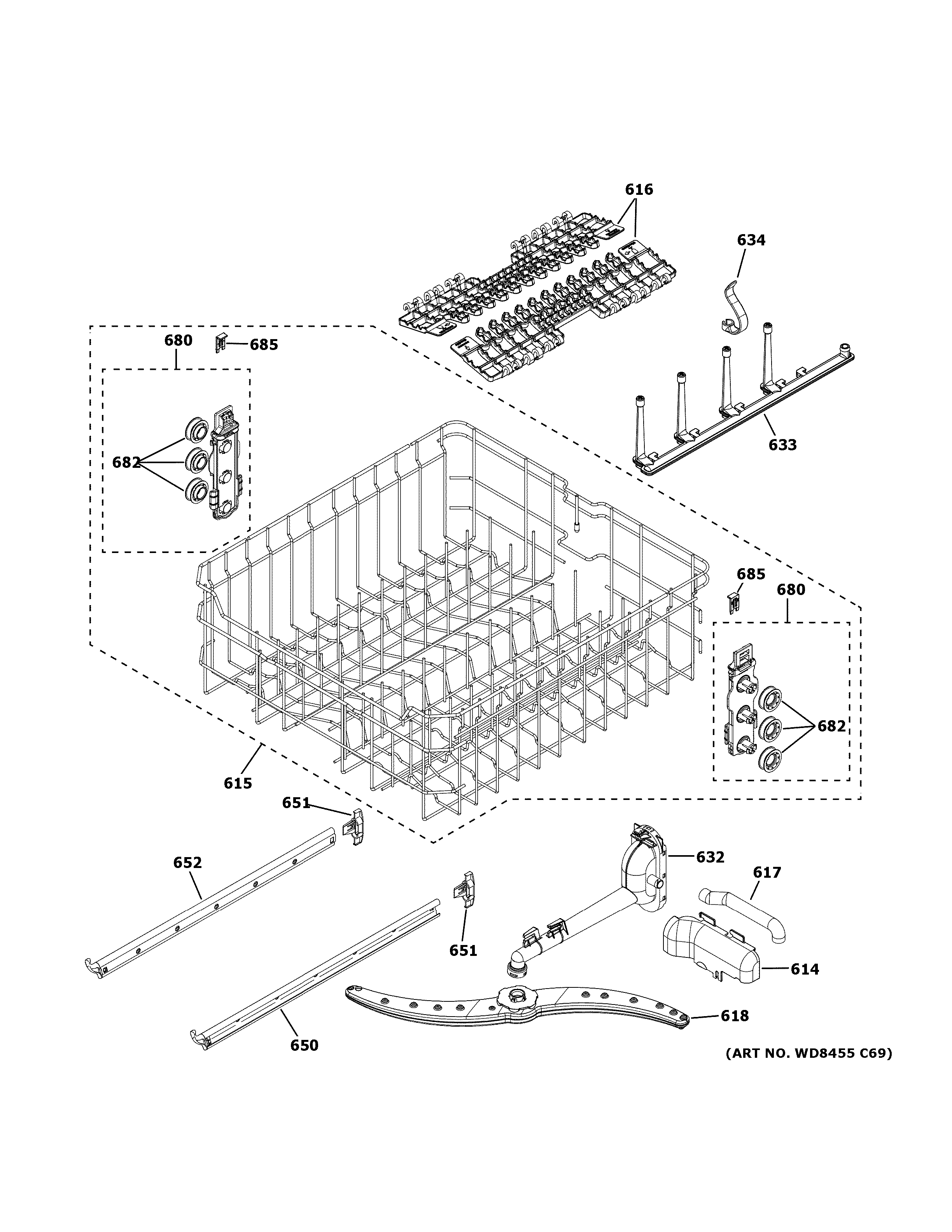

GDP645SYN3FS UPPER RACK ASSEMBLY

GDP645SYN3FS UPPER RACK ASSEMBLY

Written by

in

GDP645SYN3FS UPPER RACK ASSEMBLY

Products

PositionProduct
614WD24X20263 GE Dishwasher Bottle Blaster Cover
615WD28X26105 GE Dishwasher Complete Service Rack
616WD28X24827 GE Dishwasher Cup Shelf
617WD24X20262 GE Dishwasher Hose Bottle Blaster
618WD22X33498 GE Dishwasher Mid Spray Arm
632WD12X34182 GE Dishwasher Mid Conduit Blaster
633WD22X25478 GE Dishwasher Bottle Blaster Assembly
634WD12X25301 GE Dishwasher Bottle Washer Clip
650WD30X29859 GE Dishwasher Endcap and Rack Slide Right Hand
651END CAP
652WD30X29858 GE Dishwasher Left Hand Endcap and Rack Slide
680WD12X22801 GE Dishwasher Dishrack Roller
682WD12X27578 GE Dishwasher Rack Roller
685WD12X10430 GE Dishwasher Clip Bracket
