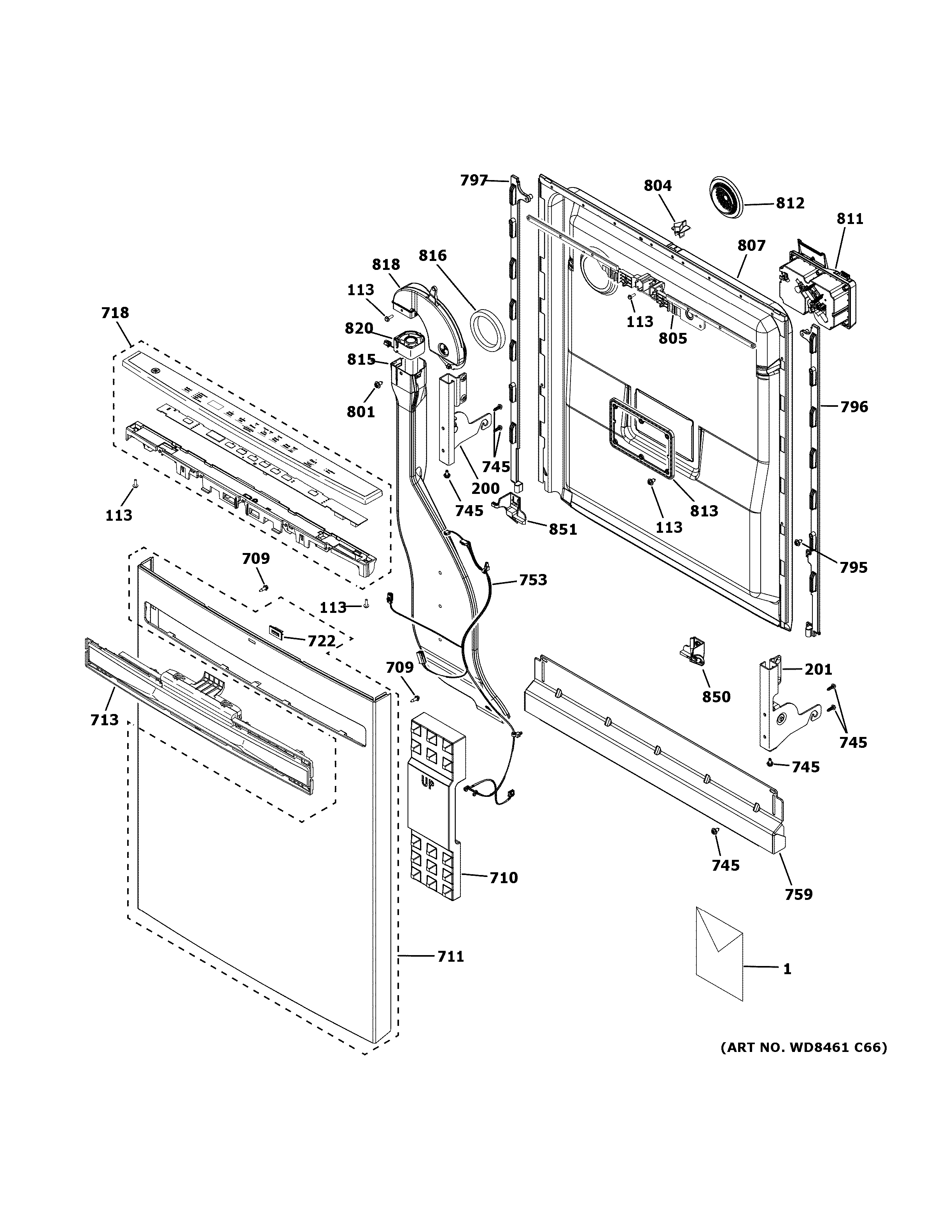

GDP645SYN4FS ESCUTCHEON & DOOR ASSEMBLY

GDP645SYN4FS ESCUTCHEON & DOOR ASSEMBLY

Written by

in

GDP645SYN4FS ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1PM MINI MANUAL AND WIRING
1INSERT MINI MANUAL
1PM INSTALL INSTRUCTIONS
1PM OWNERS MANUAL
1PM QUICK OWNERS MANUAL
113WD02X10067 GE Dishwasher Stainless Steel Screw 8-16 HXW
200WD14X23739 GE Dishwasher Arm Hinge Assembly Left Hand
201WD14X23738 GE Dishwasher Right Hand Arm Hinge Assembly
709WR01X11012 GE Refrigerator Screw 8-18 AB HXW 9/16"
710WD01X10585 GE Dishwasher Door Foam Block
711WD34X25751 GE Dishwasher Stainless Outer Door Service
713WD09X25927 GE Dishwasher Handle Pocket
718WD21X31089 GE Dishwasher Top User Interface Control Assembly
722WD01X25563 GE Dishwasher Lens and Adhesive Assembly
745WD01X22514 GE Dishwasher Screw 10-32 GX IHXW 9/16 S
753WD21X25474 GE Dishwasher Door Harness Assembly
759TOE KICK
795WD02X22628 GE Dishwasher Plastite Screw T15 8-16
796WD01X22836 GE Dishwasher Right Hand Attach Strip
797ATTACHMENT STRIP LH
801WB02T10324 GE Oven Screw 6-20 GXB IHXW 3/8 NI
804WD13X10071 GE Dishwasher Door Strike
805WD13X22837 GE Dishwasher Top Strip Attachment
807WD31X29644 GE Dishwasher Inner Door
811DETERGENT MODULE
812WD24X20586 GE Dishwasher Vent Cover
813WD12X10462 GE Dishwasher Detergent Plate
815WD12X20218 GE Dishwasher Vent Conduit Assembly
816DOOR VENT SEAL
818WD12X23557 GE Dishwasher Transition Piece Assembly
820WD24X25325 GE Dishwasher Fan Vent Assembly
850WD01X26418 GE Dishwasher Right Hand Door Trim
851WD01X26419 GE Dishwasher Door Trim Left Hand
