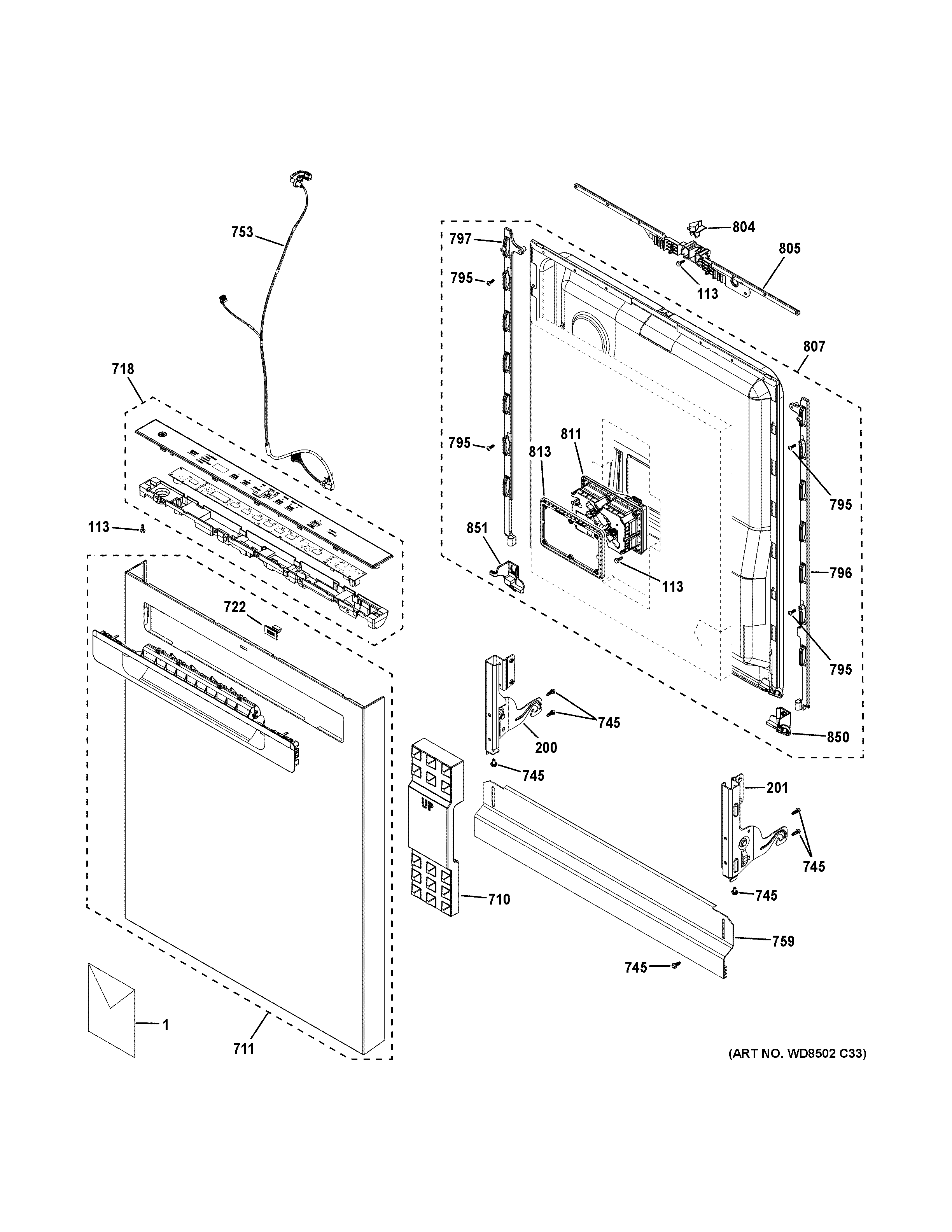

GDP670SGV0BB ESCUTCHEON & DOOR ASSEMBLY

GDP670SGV0BB ESCUTCHEON & DOOR ASSEMBLY

Written by

in

GDP670SGV0BB ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1PM OWNERS AND INSTALL
1PM MINI MANUAL AND WIRING
1INSERT MINI MANUAL
113WD01X27719 GE Screw PL HXW 8-18 1/2
200WD14X23739 GE Dishwasher Arm Hinge Assembly Left Hand
201WD14X23738 GE Dishwasher Right Hand Arm Hinge Assembly
710WD01X29918 GE Door Foam Block
711WD27X30339 GE Dishwasher Black Outer Door Panel
718WD21X33778 GE Control Assembly with Cover
722WD01X29998 GE Door Lens
745WD01X22514 GE Dishwasher Screw 10-32 GX IHXW 9/16 S
753WD21X32718 GE User Interface Harness
759BLACK TOE KICK
795WD02X22628 GE Dishwasher Plastite Screw T15 8-16
796WD01X22836 GE Dishwasher Right Hand Attach Strip
797ATTACHMENT STRIP LH
804WD13X10071 GE Dishwasher Door Strike
805WD13X22837 GE Dishwasher Top Strip Attachment
807WD27X30353 GE Stainless Steel Inner Door
811DETERGENT MODULE
813WD12X10462 GE Dishwasher Detergent Plate
850WD01X26418 GE Dishwasher Right Hand Door Trim
851WD01X26419 GE Dishwasher Door Trim Left Hand
