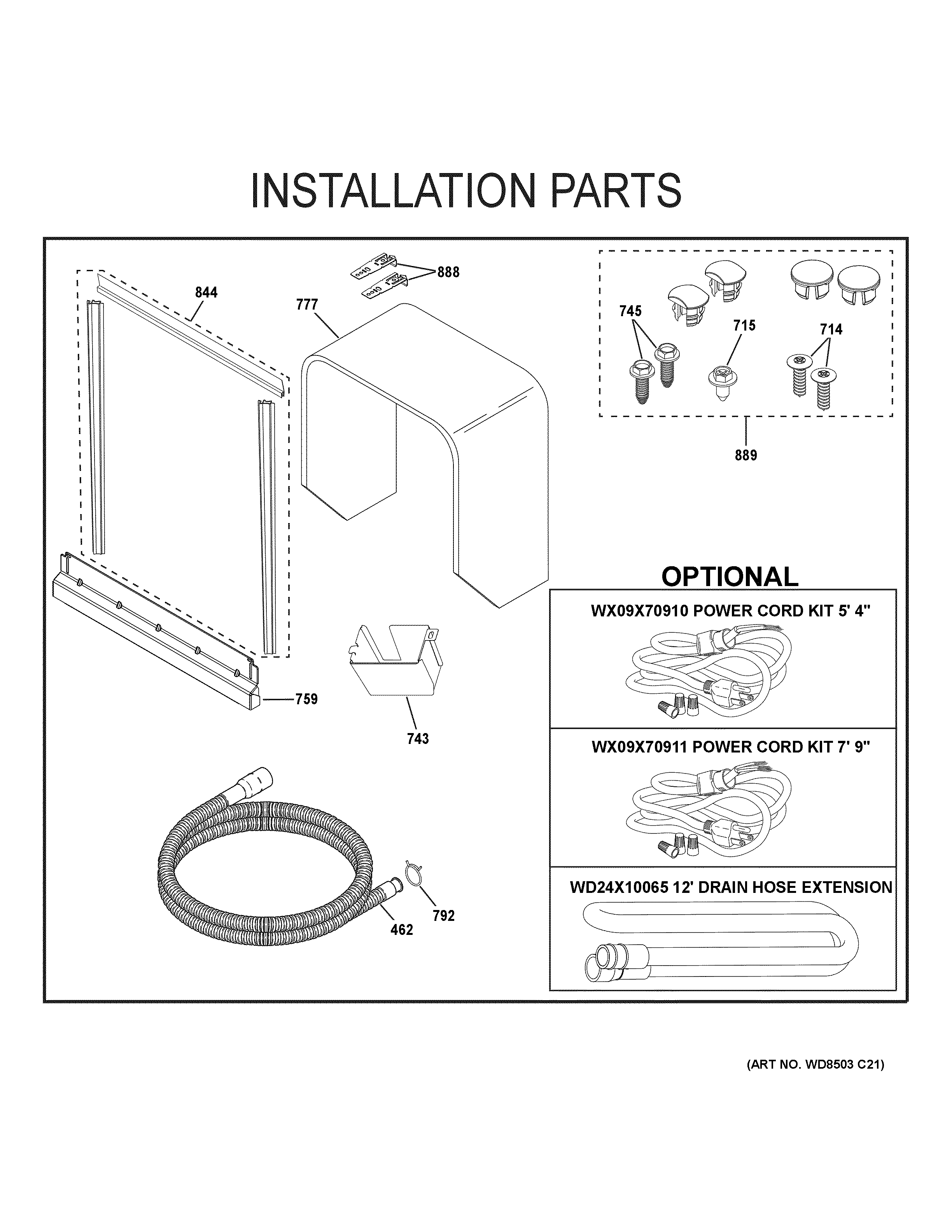

GDP670SGV0BB INSTALLATION PARTS

Products

PositionProduct
462DRAIN TUBE ASM
714WR01X10065 GE Screw
715WD02X10220 GE Dishwasher Hex Head 10-32 3/8" Screw
743WD12X10412 GE Dishwasher Wiring Cover
745WD01X22514 GE Dishwasher Screw 10-32 GX IHXW 9/16 S
759BLACK TOE KICK
777WD30X28658 GE Dishwasher Tub Insulation Blanket
792WD01X10104 GE Dishwasher Hose Clamp
844WD01X32842 GE Tub Trim Kit
888WD01X27759 GE Mounting Bracket
889WD02X33379 GE Countertop Plug and Screw Set
