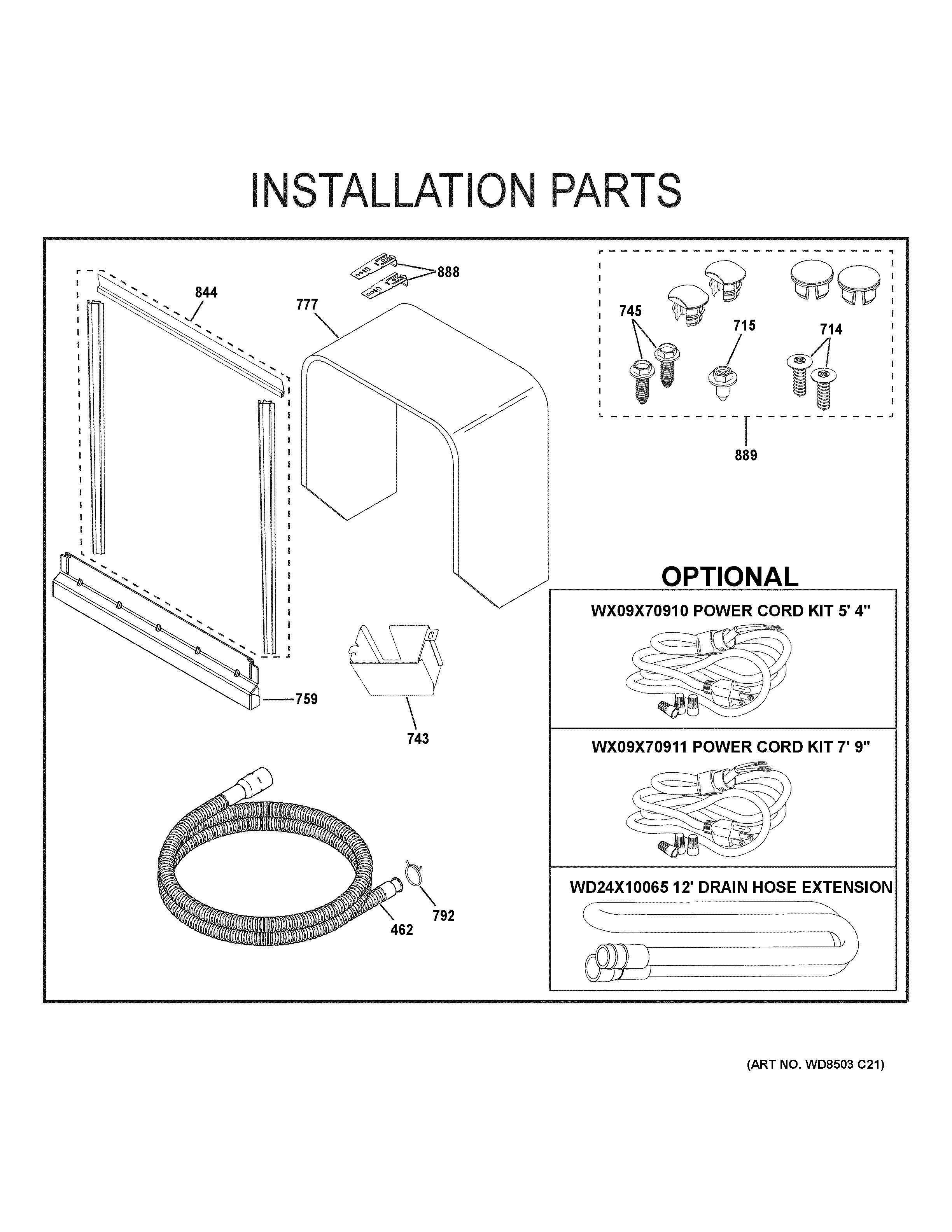

GDP670SGV1WW INSTALLATION PARTS

GDP670SGV1WW INSTALLATION PARTS

Written by

in

GDP670SGV1WW INSTALLATION PARTS

Products

PositionProduct
462DRAIN TUBE ASM
714WR01X10065 GE Screw
715WD02X10220 GE Dishwasher Hex Head 10-32 3/8" Screw
743WD12X10412 GE Dishwasher Wiring Cover
745WD01X22514 GE Dishwasher Screw 10-32 GX IHXW 9/16 S
759WD27X27840 GE Dishwasher White Toekick
777WD30X28658 GE Dishwasher Tub Insulation Blanket
792WD01X10104 GE Dishwasher Hose Clamp
844WD01X32842 GE Tub Trim Kit
888WD01X27759 GE Mounting Bracket
889WD02X33379 GE Countertop Plug and Screw Set
