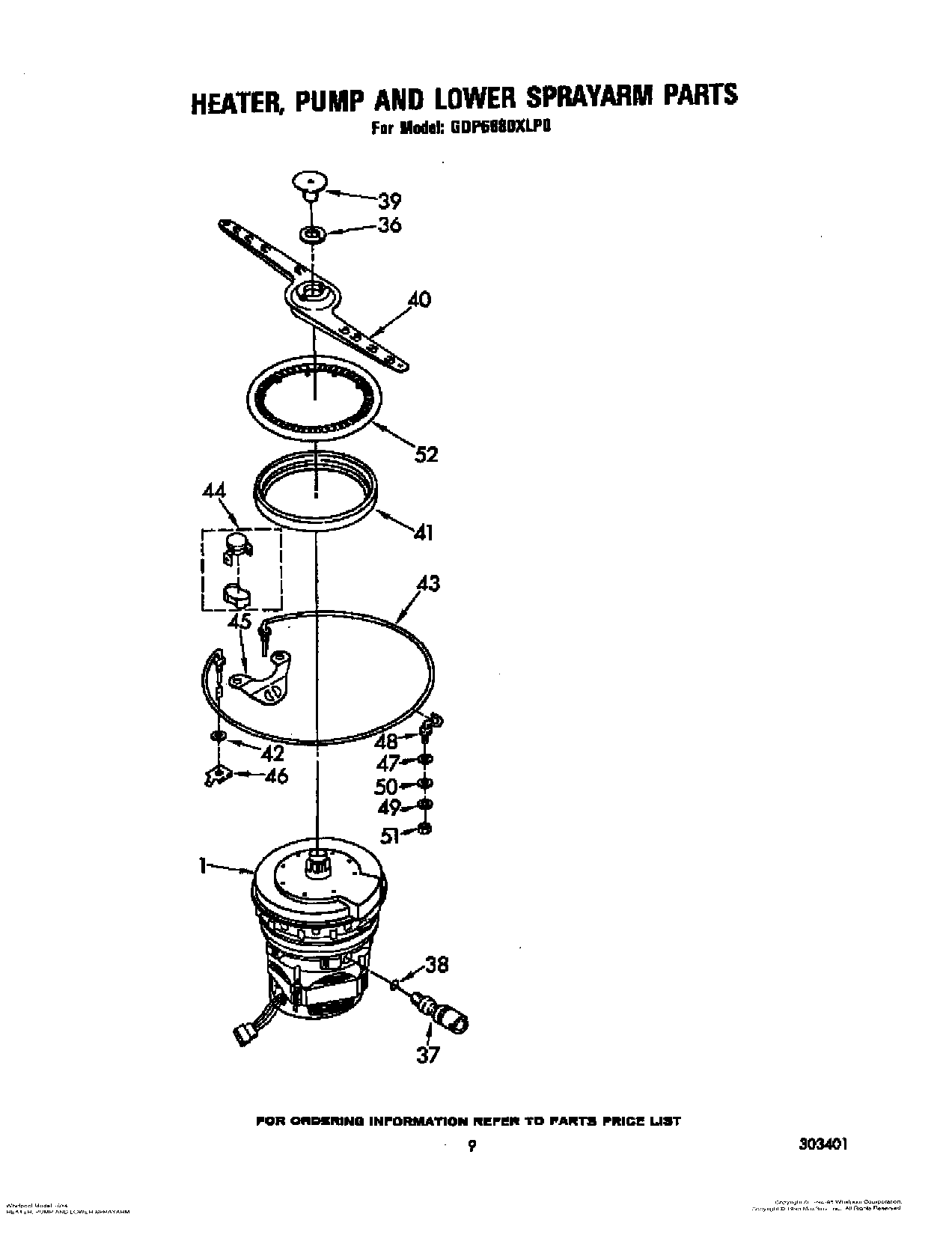

GDP6880XLP0 06 – HEATER, PUMP AND LOWER SPRAYARM

GDP6880XLP0 06 – HEATER, PUMP AND LOWER SPRAYARM

Written by

in

GDP6880XLP0 06 – HEATER, PUMP AND LOWER SPRAYARM

Products

PositionProduct
1Pump & Motor Assembly
36WP719576 Whirlpool Dishwasher Bearing
37Adapter, Valve Check (Includes Illus. 38)
38“O“ Ring
39Cap, Nozzle
40Spray Arm, Lower
41717000 Whirlpool Dishwasher Gasket
42WP717273 Whirlpool Dishwasher Rubber Washer
43Heater (Alternate)
43Heater (Alternate)
43Heater (Alternate)
43Heater (Alternate)
44Thermostat
45Bracket
46Nut, Heater Element
47Washer, Retainer (2)
48Support, Heater (2)
49Washer (2)
50Washer (2)
51Nut, 10-32 (2)
52Grate
