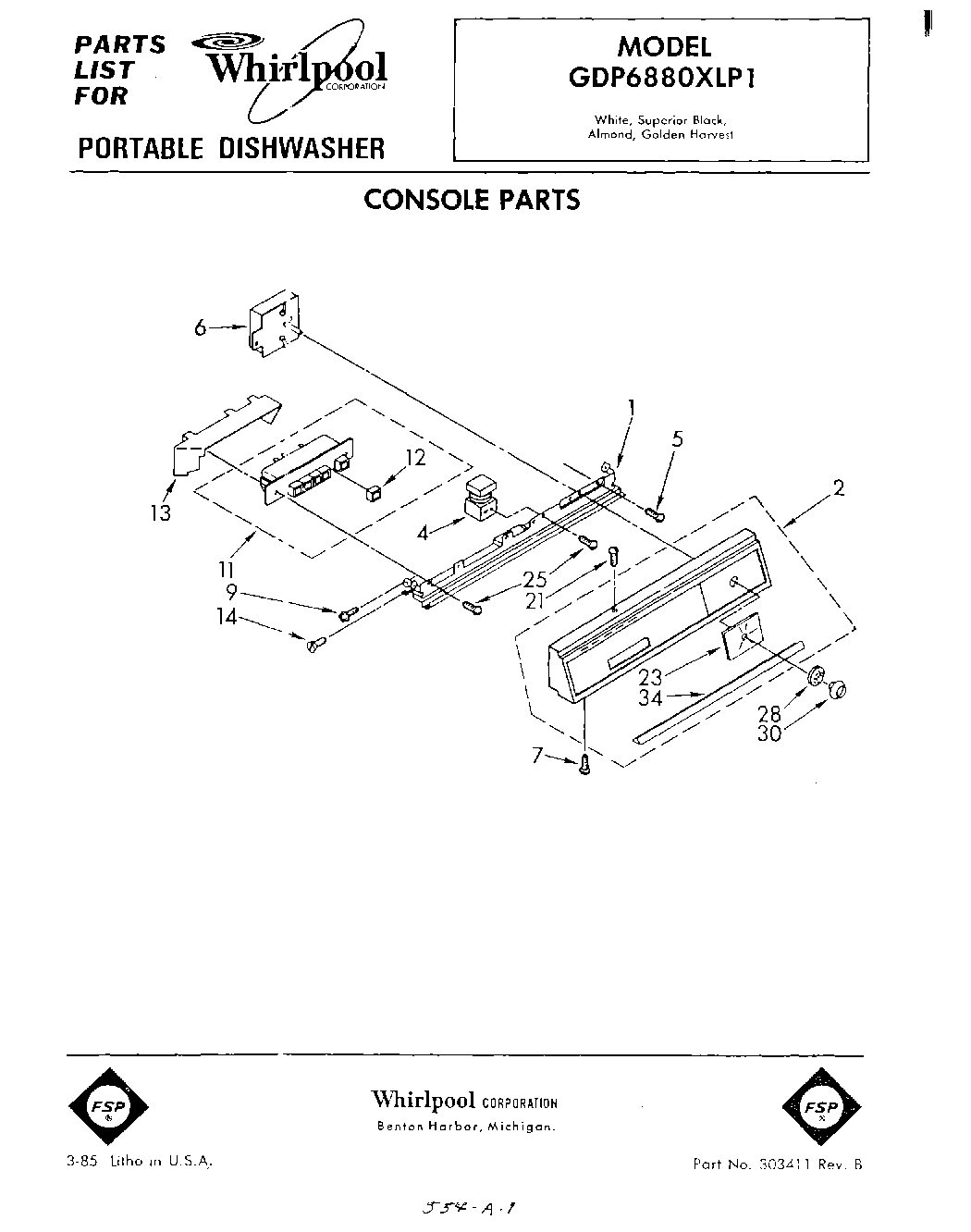

| 1 | Bracket, Console |
| 2 | Console Assembly |
| 4 | Relay, Start |
| 5 | WP356418 Whirlpool Screw |
| 6 | Spacer-Main Top |
| 7 | WP487353 Whirlpool Refrigerator Screw |
| 9 | WP302868 Whirlpool Screw |
| 11 | Switch, Push Button |
| 12 | Button |
| 13 | Barrier |
| 14 | Screw, 8-18 x 5/8 |
| 21 | W10759522 Whirlpool Screw |
| 23 | Insert |
| 25 | WP489128 Whirlpool Refrigerator Screw |
| 28 | Dial, Indicator |
| 30 | Knob |
| 34 | Support-Flue Deflector |
