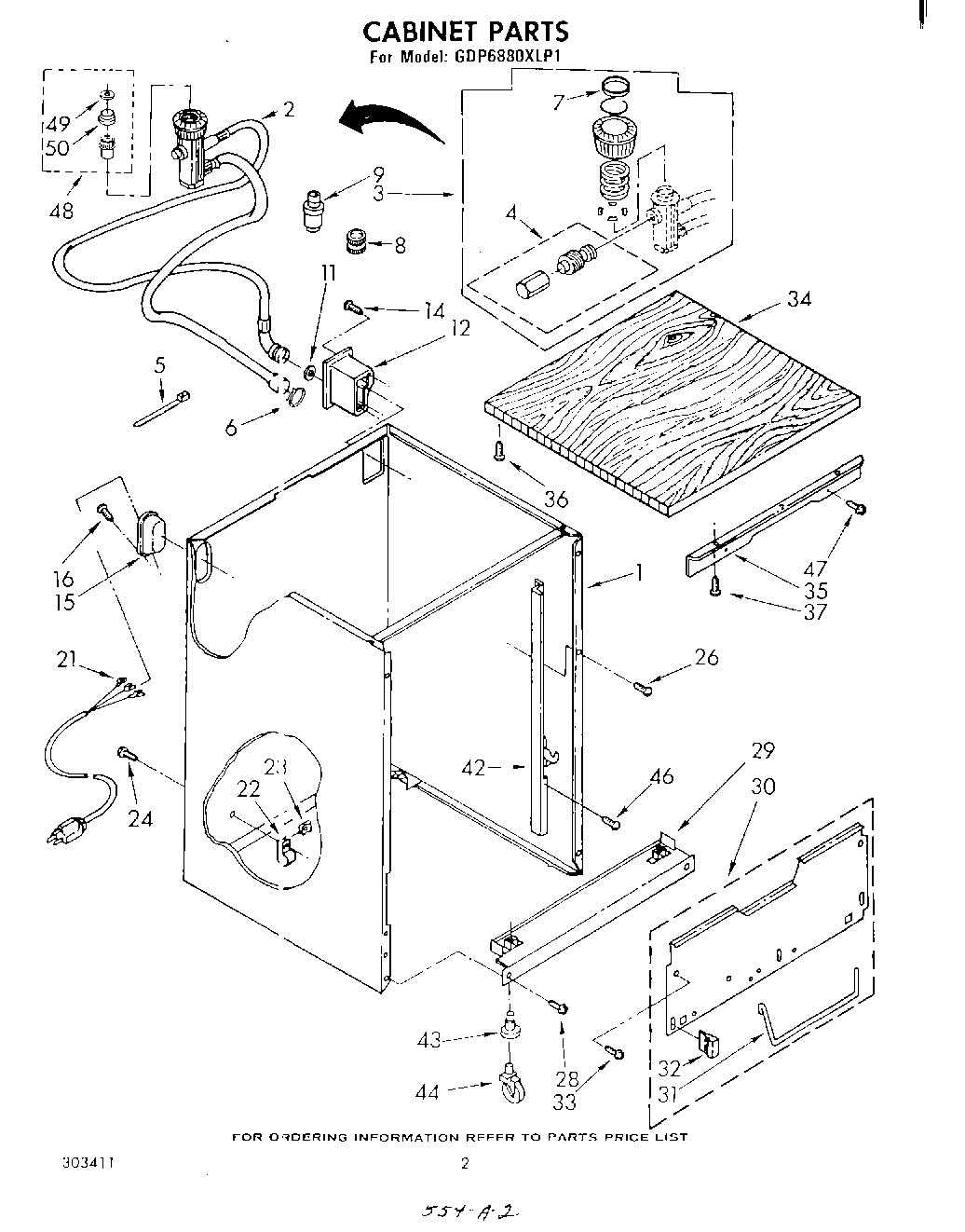

GDP6880XLP1 02 – CABINET

Products

Position	Product
1	Shell Assembly (Almond)
2	Coupler Assembly
3	WP285170 Whirlpool Collar
4	Valve, Pressure Relief
5	WPW10144763 Whirlpool Tie Wire
6	Clamp, Hose
7	Seal
8	Adapter, Faucet (Garden Hose)
9	Adapter, Faucet (Universal)
11	WP16123 Whirlpool Washer
12	Housing, Hose
15	Housing, Cord
21	Cord, Power
22	Clamp, Strain Relief
23	Nut, J-Type
28	WP90767 Whirlpool Screw
29	Toeplate Assembly (Includes Illus. 43)
30	Plate, Cover
31	Bar, Torsion (R.H.)
31	Bar, Torsion (L.H.)
32	Bumper, Rubber
33	WP302868 Whirlpool Screw
34	Panel, Top
34	Screw, 8-18 x 5/8
35	Trim, Front
36	WPL 343826
37	WP488787 Whirlpool Refrigerator Screw
42	Leg Assembly, L.H.
42	Leg Assembly, R.H.
43	Socket, Caster (Alternate)
43	Socket, Caster (Alternate)
44	WP3370639 Whirlpool Caster
47	W11693756 Whirlpool Screw Assembly
48	WPW10254672 Whirlpool Faucet Adapter
49	Washer
50	Bushing
