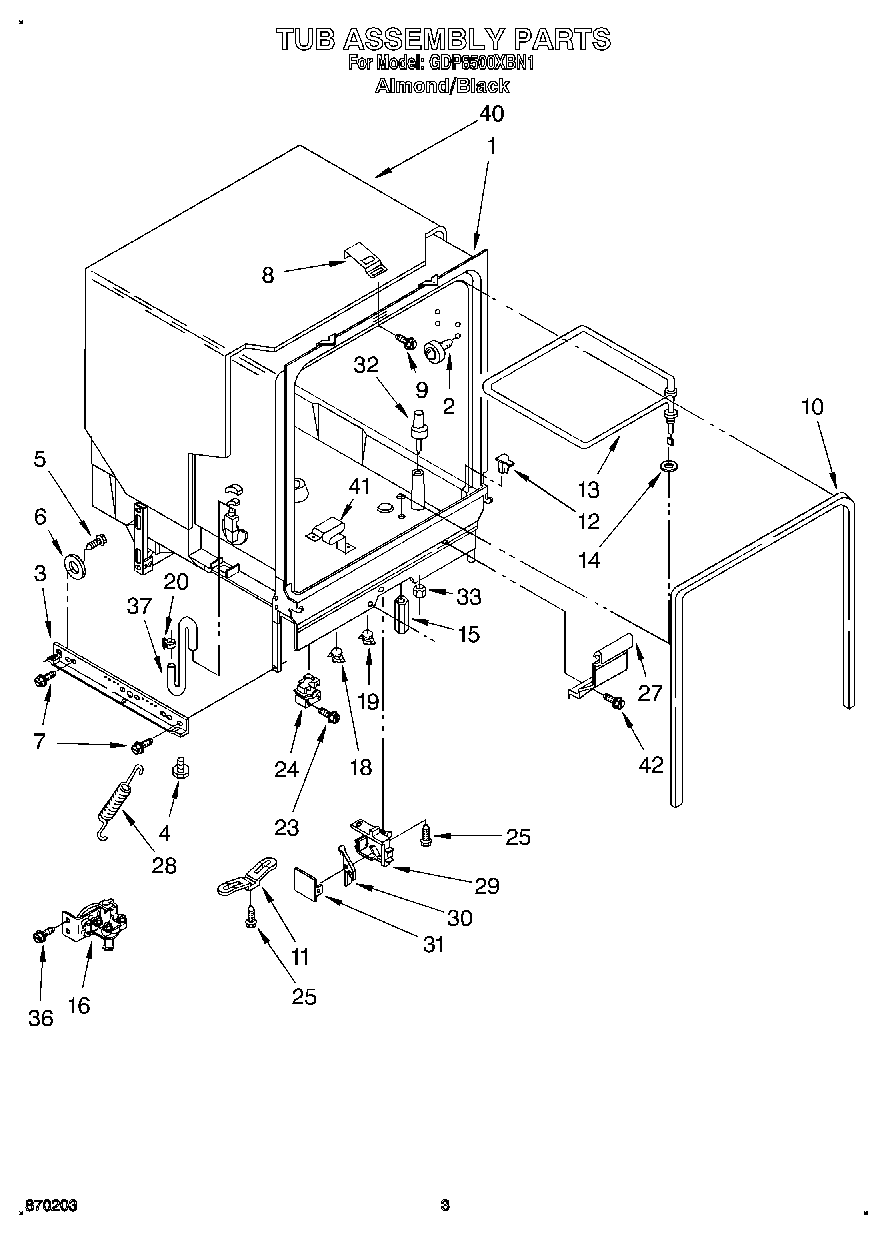

GDP8500XBN1 03 – TUB ASSEMBLYadmin2025-04-26T12:01:29+00:00GDP8500XBN1 03 – TUB ASSEMBLY
Products
| Position | Product |
|---|
| 1 | Tub Assembly |
| 2 | Tub, Wheel Assembly (8) |
| 3 | Runner (2) |
| 4 | 8193716 Whirlpool Leveling Leg |
| 5 | Screw (2) |
| 6 | WP302819 Whirlpool Dishwasher Wheel |
| 7 | SCREW |
| 8 | Plate, Latch |
| 9 | Screw, 8-32 |
| 10 | WPW10509257 Whirlpool Door Gasket |
| 11 | Bracket, Thermostat |
| 12 | DEFLECTOR-DISHWASHER |
| 13 | Heater |
| 14 | WP717273 Whirlpool Dishwasher Rubber Washer |
| 15 | Nut (2) (Heater Terminal) |
| 16 | WP8274220 Whirlpool Dishwasher Inlet Valve |
| 18 | WP661566 Whirlpool High Limit Thermostat |
| 19 | Thermostat |
| 20 | WP596669 Whirlpool Hose Clamp |
| 23 | WP489128 Whirlpool Refrigerator Screw |
| 24 | Relay |
| 25 | WP304231 Whirlpool Dishwasher Screw |
| 27 | Shield, Harness |
| 28 | WP3374343 Whirlpool Dishwasher Spring |
| 29 | Housing, Float Switch |
| 30 | Switch, Float |
| 31 | Cover, Switch Housing |
| 32 | WP3376397 Whirlpool Dishwasher Float Assembly |
| 33 | Nut |
| 36 | WP3390631 Whirlpool Screw |
| 37 | Hose, Inlet |
| 40 | Shield, Sound |
| 41 | Support, Heater |
| 42 | W11693756 Whirlpool Screw Assembly |
