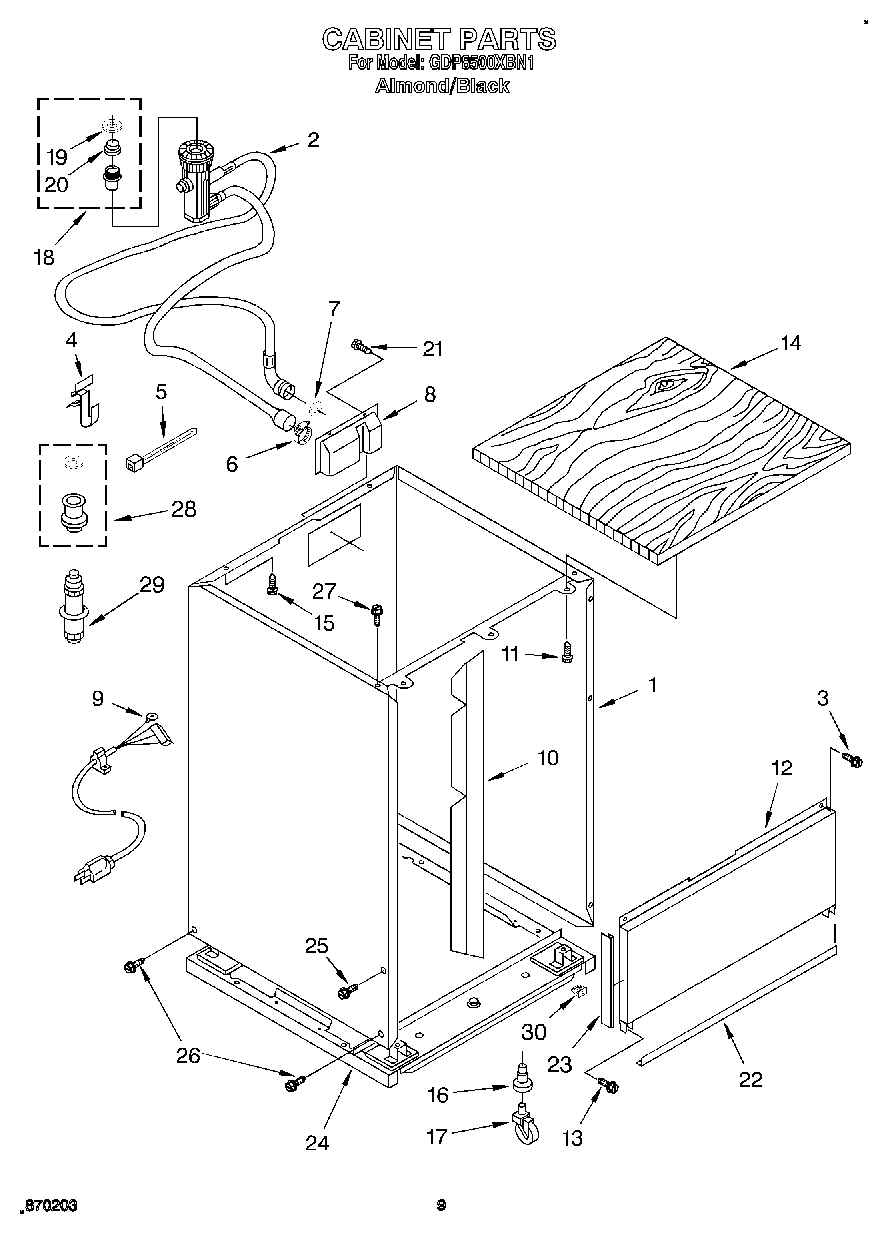

GDP8500XBN1 06 – CABINET

GDP8500XBN1 06 – CABINET

Written by

in

GDP8500XBN1 06 – CABINET

Products

PositionProduct
1Shell Assembly (Almond)
2WPW10273574 Whirlpool Dishwasher Filter & DRNHOS
3WP302868 Whirlpool Screw
4Retainer, Hose
5WPW10339879 Whirlpool Wire Tie
6WP3367052 Whirlpool Hose Clamp
7WP16123 Whirlpool Washer
8Housing, Hose
9Cord, Power
10Pad, Divider
11WP3373329 Whirlpool Dishwasher Screw
12Shroud, Caster
13Screw
14Panel, Top
15SCREW
16Socket, Caster (Alternate)
17WP3370639 Whirlpool Caster
18WPW10254672 Whirlpool Faucet Adapter
19Washer
20Bushing
21SCREW
22Trim, Bottom
23Trim, Side (2)
24Frame Assembly
25302251 Whirlpool Dishwasher Screw
26Screw
27Screw, 8-18 x 1/2
28Adapter, Faucet (Garden Hose)
29Faucet Adapter (Assembly)
30WP300096 Whirlpool Dishwasher Air Gap
30Clip, Grounding
30Conversion Kit (To Convert From Portable To Undercounter Installation)
