GDP8500XXN0 06 – DISHRACKadmin2025-04-26T12:02:18+00:00GDP8500XXN0 06 – DISHRACK
Products
| Position | Product |
|---|
| Energy Guide |
| Parts List |
| Guide, Use & Care |
| Instructions, Installation |
| Instructions, Installation (Supplement) (Locating Your Water Supply) |
| WPL LIT3370466 |

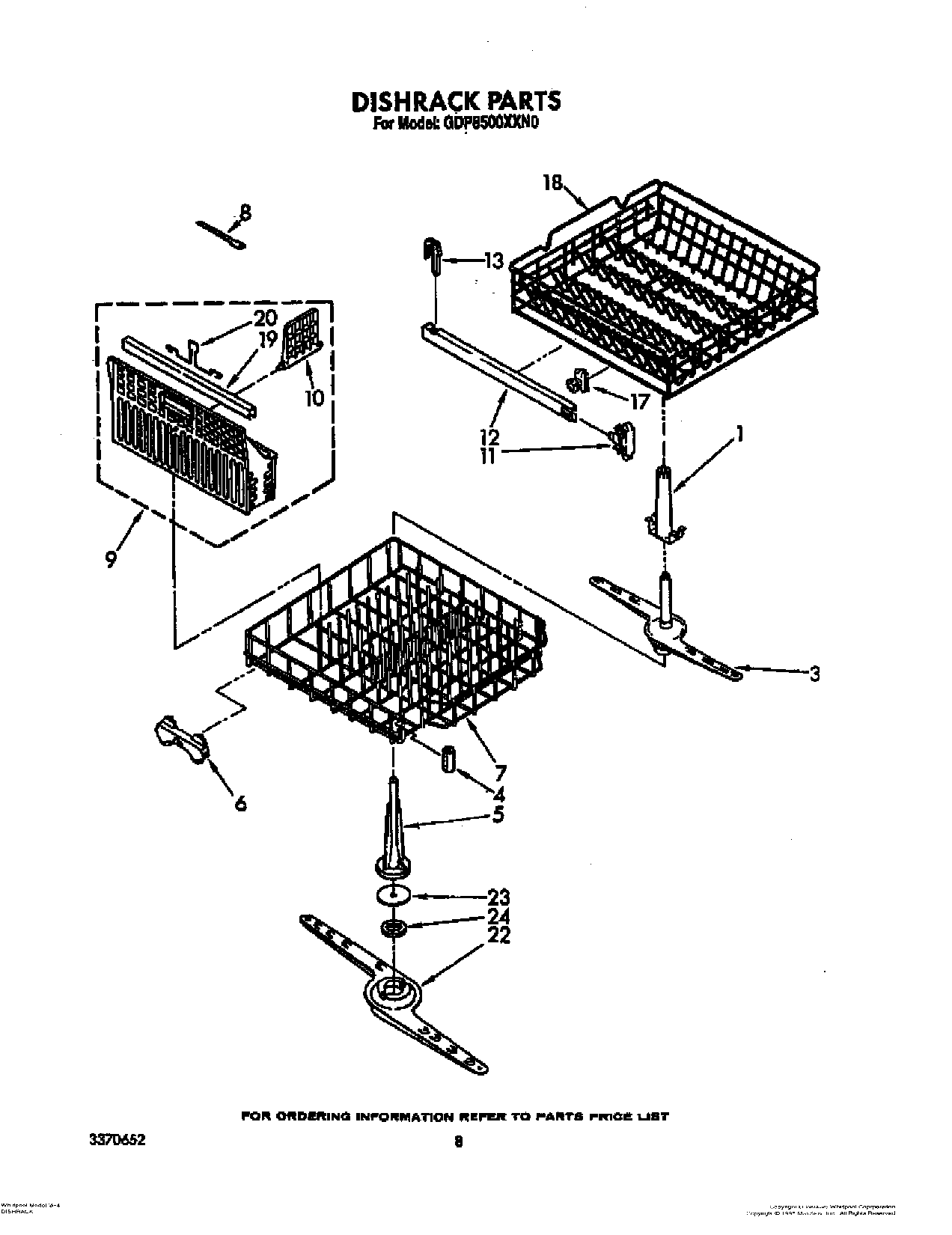

| 1 | Support, Arm |
| 3 | WP304204 Whirlpool Dishwasher Spray Arm |
| 4 | Bumper |
| 5 | Tower |
| 6 | WP3376961 Whirlpool Dishwasher Wheel |
| 7 | W10311986 Whirlpool Dishwasher Lower Rack |
| 8 | WPW10339879 Whirlpool Wire Tie |
| 9 | Silverware Basket Assembly |
| 10 | Cover, Basket |
| 11 | Endcap, Front or Rear (2) |
| 12 | Track, Rack |
| 13 | Stop, Track (2) |
| 17 | Wheel & Axle Assembly (4) |
| 18 | W11169039 Whirlpool Dishwasher Dish Rack |
| 19 | Trim, Basket |
| 20 | Handle, Basket |
| 22 | WP3376848 Whirlpool Dishwasher Spray Arm |
| 23 | Cap, Nozzle |
| 24 | Tine Tip Repair Kit (Blue-Enough For Two Complete Dishracks) |
| 24 | Leveler (Thinner) |
| 24 | WP72107 Whirlpool Touchup |
| 24 | 72017 Whirlpool Appliance Touch-Up Paint White |
| 24 | Almond (Uncut) |
| 24 | WPL 72112 |
| 24 | 350942 Whirlpool Spray Paint |
| 24 | Enamel, Black (1 Qt. Uncut) |
| 24 | 285006 Whirlpool Spray |
| 24 | Vinyl Touch Up (Blue) |
| 24 | WP719576 Whirlpool Dishwasher Bearing |
| 24 | 350956 Whirlpool Spray Assembly |
