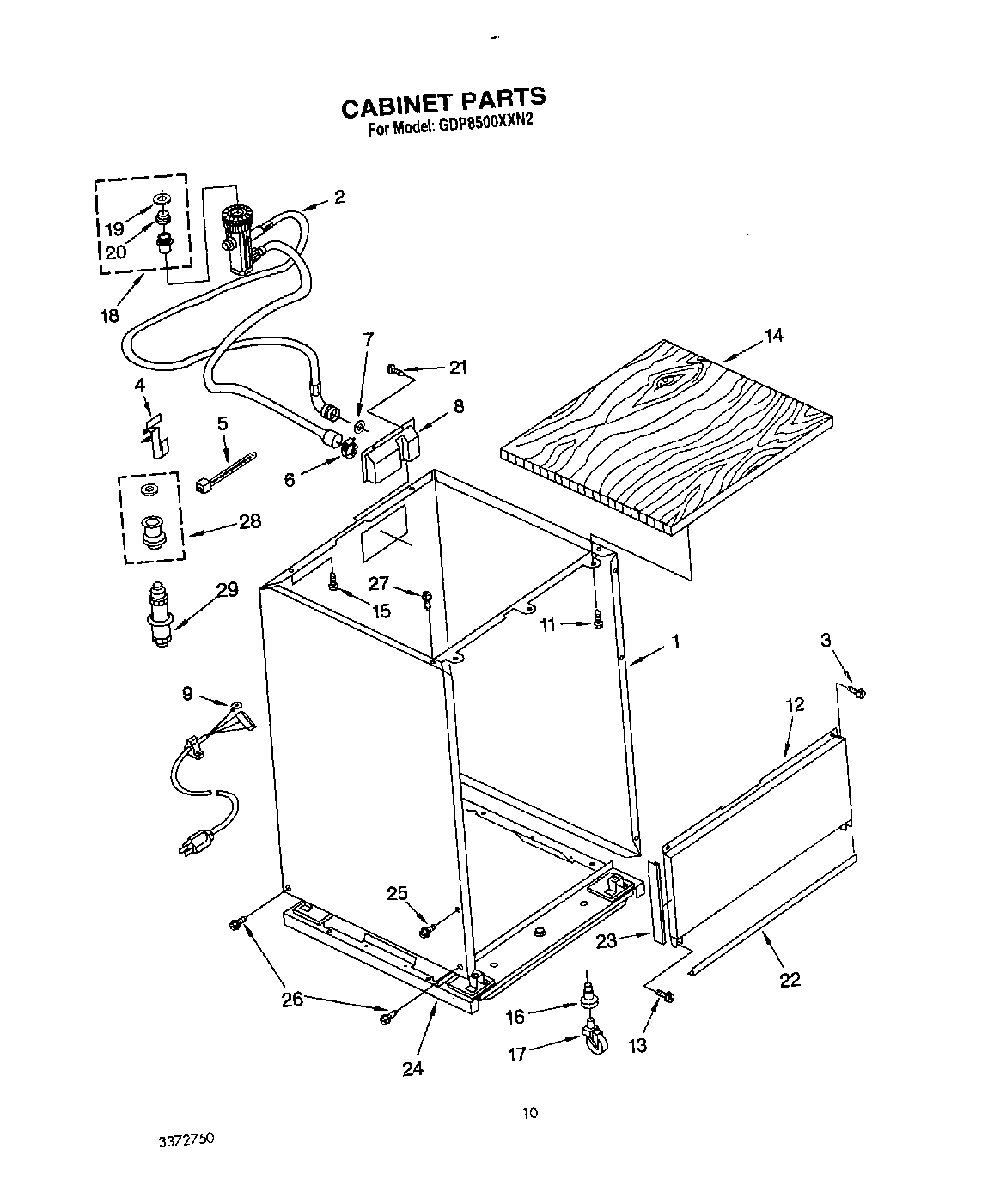

GDP8500XXN2 07 – CABINET

Products

Position	Product
1	Shell Assembly (Almond)
2	WPW10273574 Whirlpool Dishwasher Filter & DRNHOS
3	WP302868 Whirlpool Screw
4	Retainer, Hose
5	WPW10339879 Whirlpool Wire Tie
6	WP3367052 Whirlpool Hose Clamp
7	WP16123 Whirlpool Washer
8	Housing, Hose
9	Cord, Power
11	WP308685 Whirlpool Microwave Screw
12	Shroud, Caster
13	Screw
14	Panel, Top
15	SCREW
16	Socket, Caster (Alternate)
17	WP3370639 Whirlpool Caster
18	WPW10254672 Whirlpool Faucet Adapter
19	Washer
20	Bushing
21	SCREW
22	Trim, Bottom
23	Trim, Side (2)
24	Frame Assembly
25	302251 Whirlpool Dishwasher Screw
26	Screw
27	Screw, 8-18 x 1/2
28	Adapter, Faucet (Garden Hose)
29	WP300096 Whirlpool Dishwasher Air Gap
29	Conversion Kit (To Convert From Portable To Undercounter Installation)
29	Faucet Adapter (Assembly)
