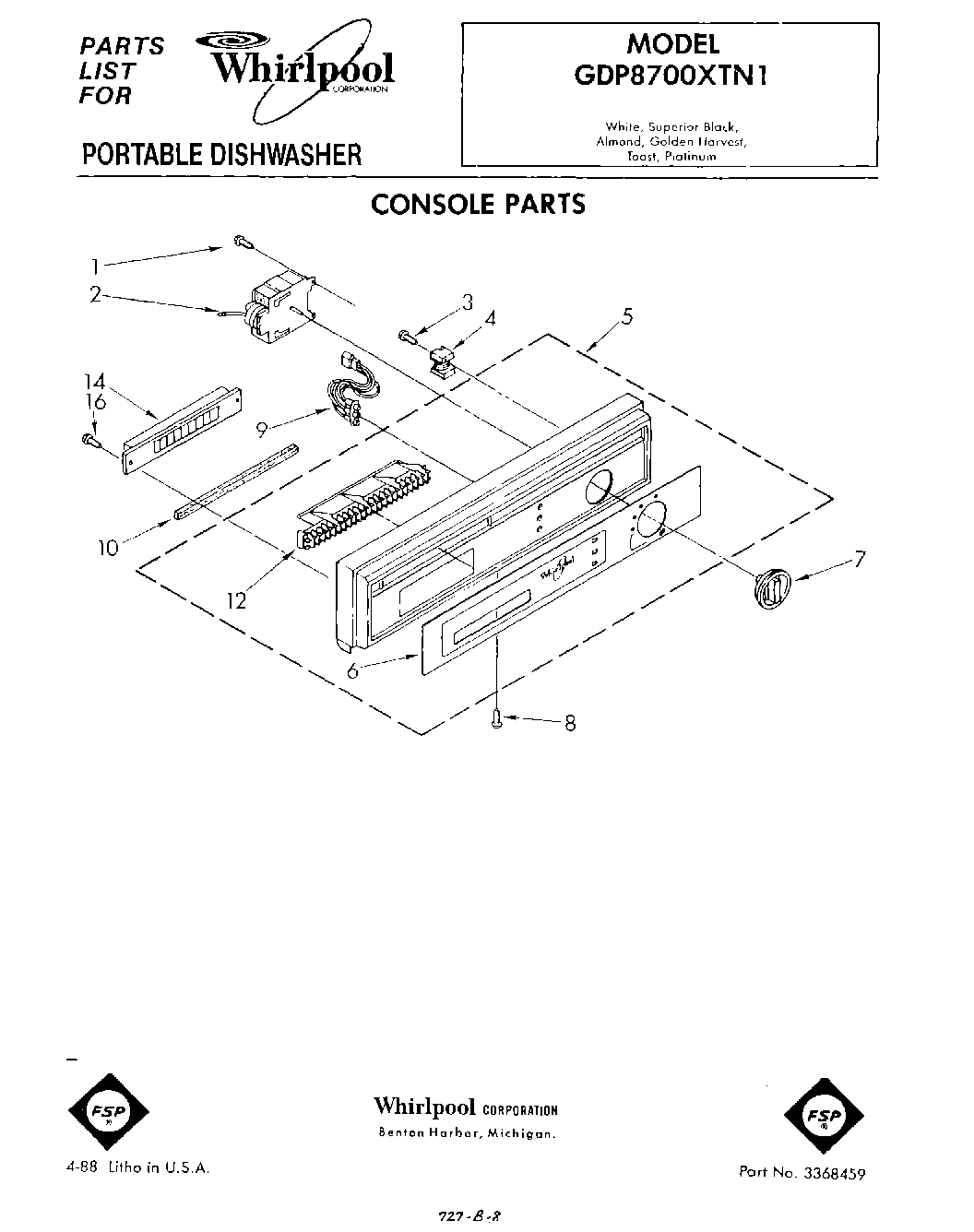

GDP8700XTN1 01 – CONSOLE

Written by

Products

Position	Product
2	Timer
3	Screw, 7-18 x 1-3/8 Slot Hex Wash Hd
4	Relay, Start
5	Console
6	Insert, Decorative
7	Knob, Timer
8	WP488729 Whirlpool Refrigerator Door Screw
9	Light, Indicator (For Electrical Connector Only, See Wiring Harness Parts Page).
10	Foam, Seal
12	Grill, Vent
14	Switch, Pushbutton
16	WP304231 Whirlpool Dishwasher Screw
