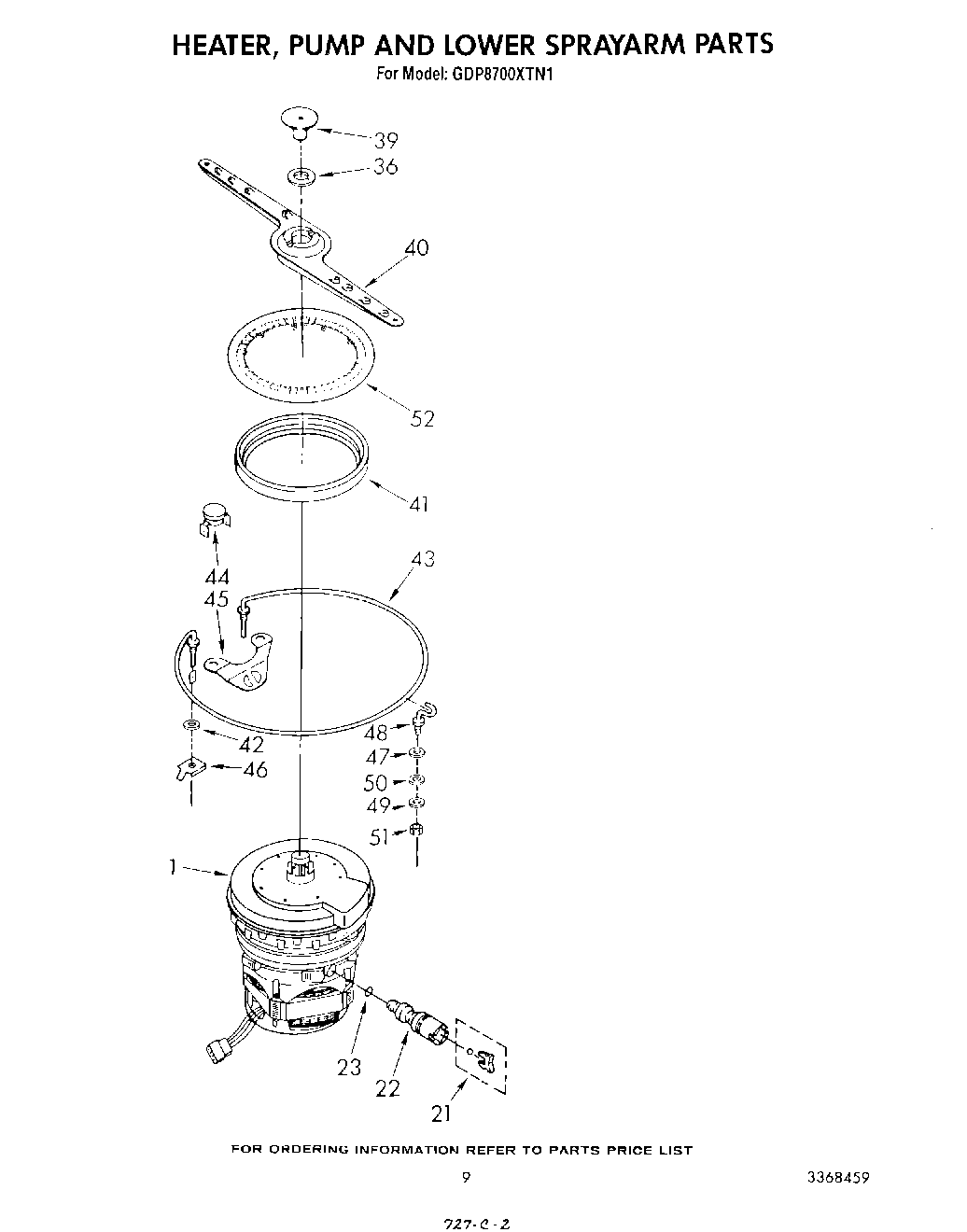

GDP8700XTN1 06 – HEATER, PUMP AND LOWER SPRAY ARM

Products

PositionProduct
1Pump & Motor Assembly
21Check Ball & Retainer
22675238 Whirlpool Check Valve
23“O“ Ring
36WP719576 Whirlpool Dishwasher Bearing
39Cap, Nozzle
40Spray Arm, Lower
41717000 Whirlpool Dishwasher Gasket
42WP717273 Whirlpool Dishwasher Rubber Washer
43Heater (Alternate)
43Heater
43Heater (Alternate)
43Heater (Alternate)
43Heater (Alternate)
44Thermostat
44Thermostat (Alt.)
44Thermostat (Alt.)
45Bracket, Thermostat
46Nut, Heater Element
47Washer, Retainer (2)
48Support, Heater (2)
49Washer (2)
50Washer (2)
51Nut, Hex
52Grate
