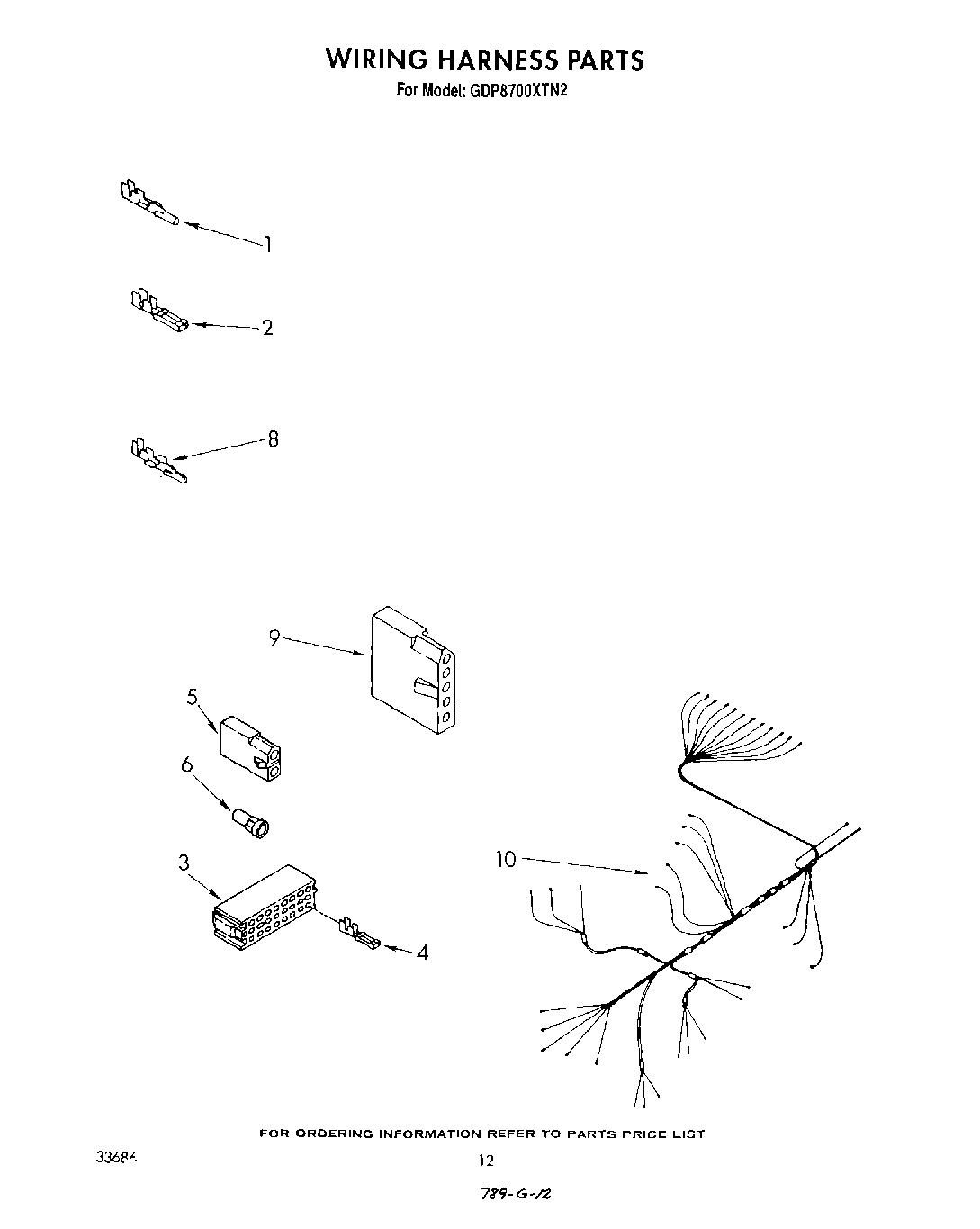

GDP8700XTN2 08 – WIRING HARNESS

Written by

Products

Position	Product
1	WP94614 Whirlpool Terminal
2	Terminal, Female
3	Block, Disconnect
3	Block, Timer (White)
4	Terminal, Female
5	Receptacle, Latching (2-Way) (Uses Terminal 94614)
6	Plug
8	WP596797 Whirlpool Terminal
9	Receptacle (5-Circuit)
10	Harness, Wiring
