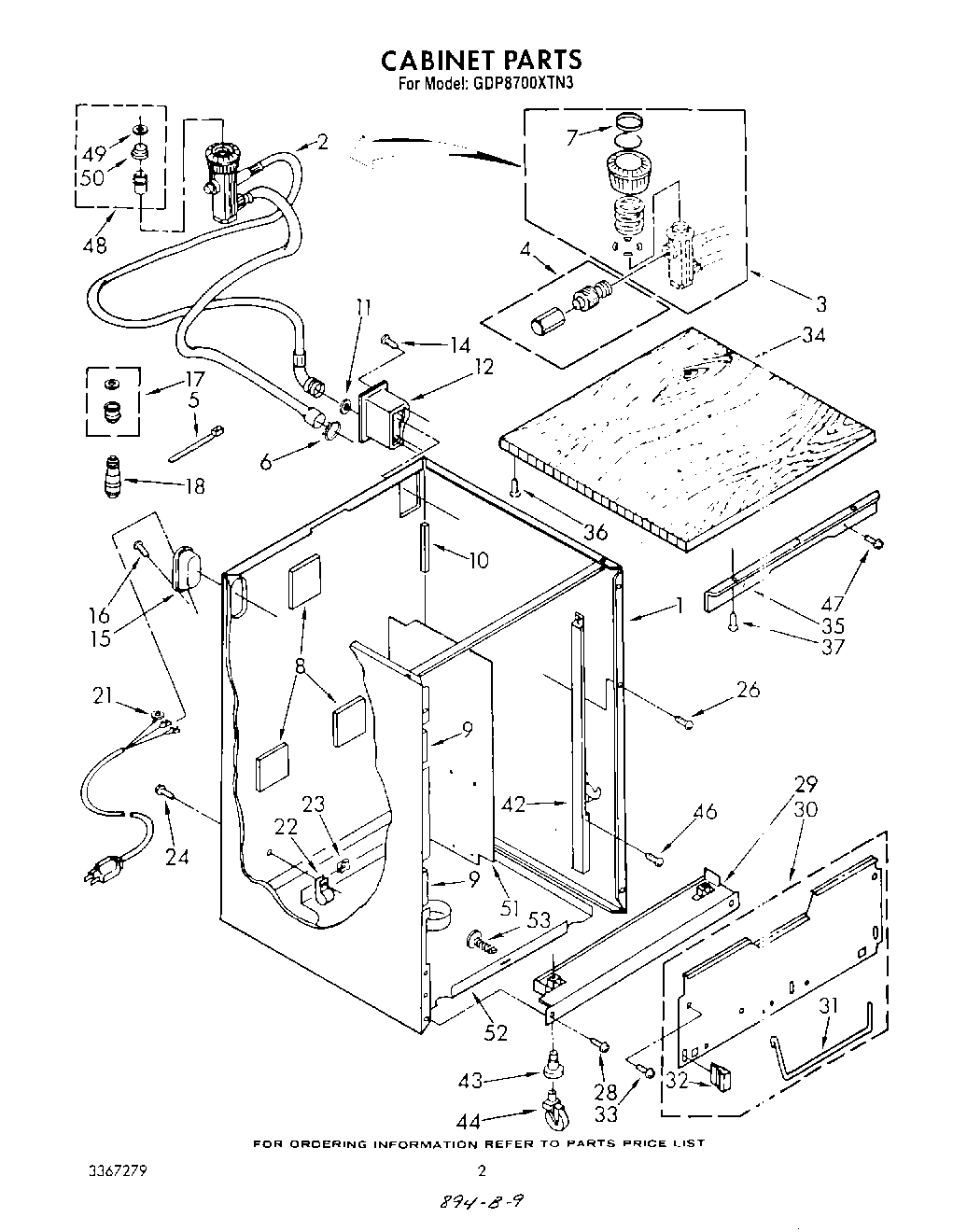

GDP8700XTN3 02 – CABINET

Products

Position	Product
1	Screw, 8-18 x 5/8
1	Shell Assembly (Almond)
2	Coupler Assembly
3	WP285170 Whirlpool Collar
4	Valve, Pressure Relief
5	WPW10144763 Whirlpool Tie Wire
6	Clamp, Hose
7	Seal
8	Pad (4)
9	Pad (3)
10	Pad
11	WP16123 Whirlpool Washer
12	Housing, Hose
15	Housing, Cord
17	Adapter, Faucet (Garden Hose)
18	Faucet Adapter (Assembly)
21	Cord, Power
22	Clamp, Strain Relief
23	Nut, J-Type
28	WP90767 Whirlpool Screw
29	Toeplate Assembly (Includes Item 43)
30	Plate, Cover
31	Bar, Torsion (R.H.)
31	Bar, Torsion (L.H.)
32	Bumper, Rubber
33	WP302868 Whirlpool Screw
34	Panel, Top
35	Trim, Front
36	SCREW
37	WP488787 Whirlpool Refrigerator Screw
42	Leg Assembly, L.H.
42	leg assembly, r.h.
43	Socket, Caster (Alternate)
43	Socket, Caster (Alternate)
44	WP3370639 Whirlpool Caster
46	WP489128 Whirlpool Refrigerator Screw
47	screw, 8-18 x 5/8 (2)
48	WPW10254672 Whirlpool Faucet Adapter
49	Washer
50	Bushing
51	Barrier, Hose
52	Sound Shield, Quiet Pack
53	Retainer
