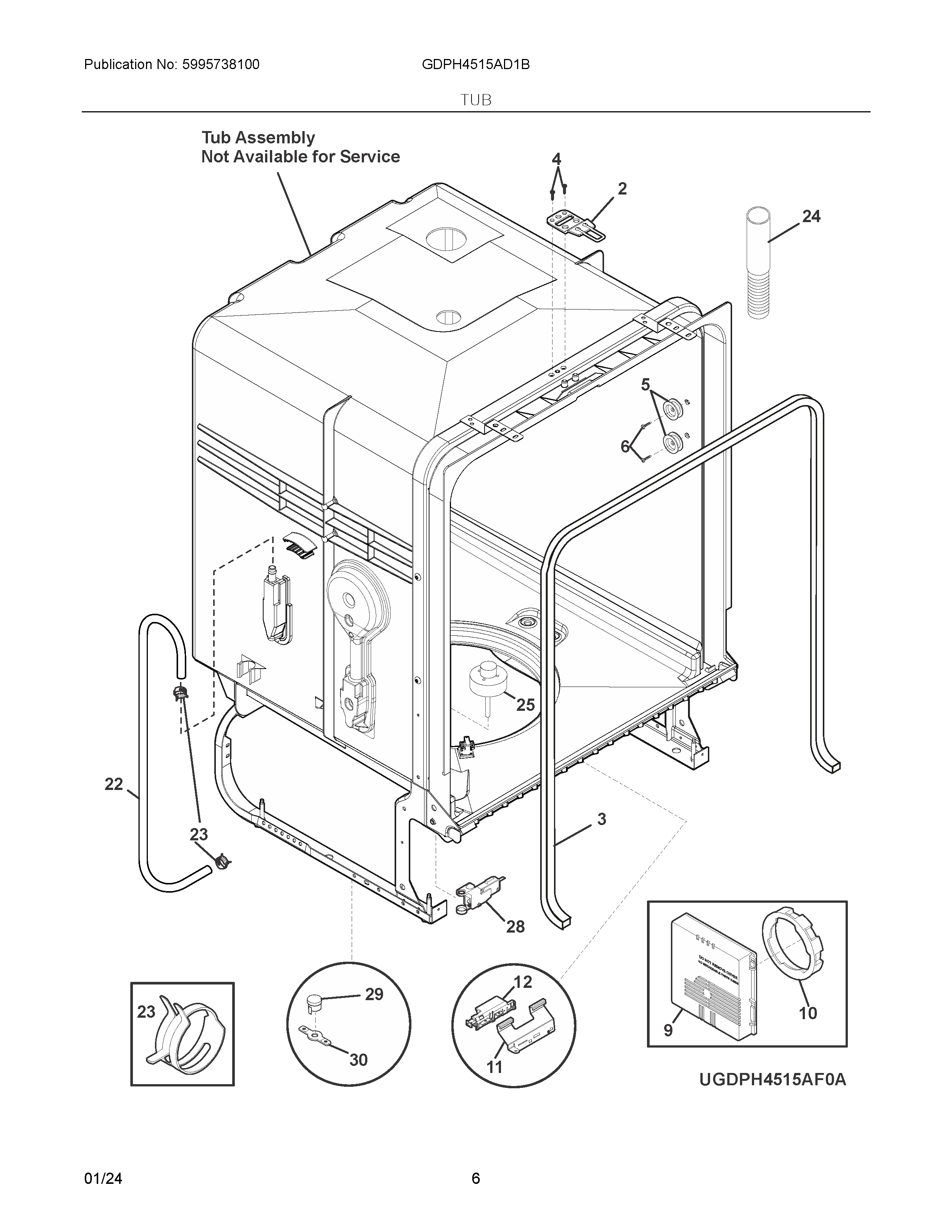

GDPH4515AD1B 04 – TUB

Products

Position	Product
NI	154406801 Frigidaire Dishwasher Anchor Kit (Anchors, Hardware, S)
NI	154380601 Frigidaire Dishwasher Clamp Assembly
NI	WCI 5300807270
NIA	154691601 Frigidaire Dishwasher Cover
NI	5304517603 Frigidaire Dishwasher Insulation
NIA	154297701 Frigidaire Dishwasher Screw
2	5304532796 Frigidaire Dishwasher Strike
3	154827601 Frigidaire Dishwasher Tub Gasket
4	808326801 Frigidaire Dishwasher Screw
5	ROLLER ASSEMBLY, TUB, MIDNIGHT INK, W/SCREW-WASHER
6	5303943103 Frigidaire Dishwasher P-1 Screw Kit (8 Each Wash/Screw)
9	5304523304 Frigidaire Dishwasher Blower Vent Assembly
10	154562904 Frigidaire Bezel
11	BRACKET, LAMP, FLOOR BEAM
12	5304532197 Frigidaire Lamp Assembly
22	5304523457 Frigidaire Inlet Hose
23	CLAMP, HOSE
24	807117001 Frigidaire Dishwasher Drain Hose
25	5304532207 Frigidaire Float
28	FLOAT SWITCH ASSY
29	5304525221 Frigidaire Dishwasher Thermostat
30	154241101 Frigidaire Dishwasher Retainer
