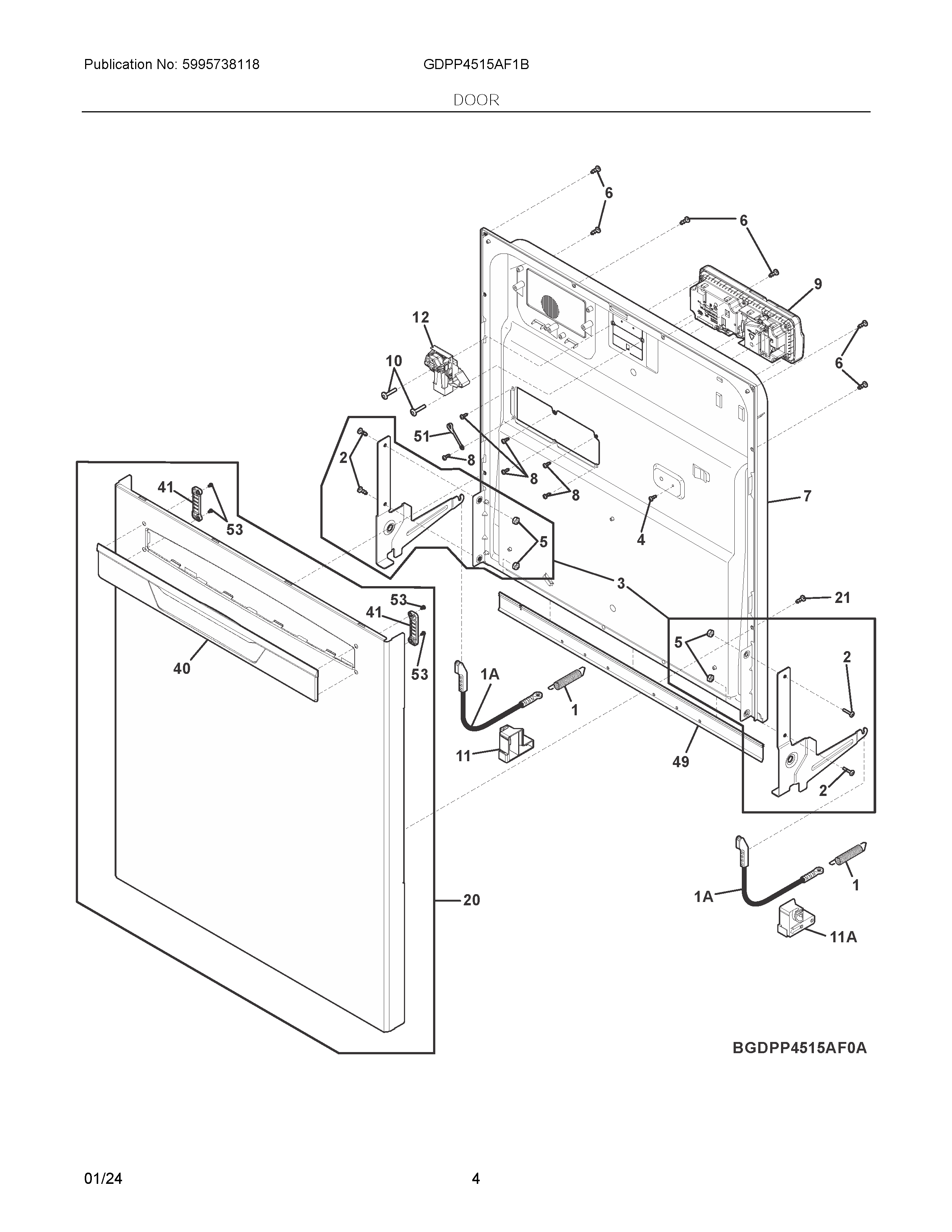

GDPP4515AF1B 03 – DOOR

GDPP4515AF1B 03 – DOOR

Written by

in

GDPP4515AF1B 03 – DOOR

Products

PositionProduct
NI154686401 Frigidaire Dishwasher Bearing
NIA5304525214 Frigidaire Dishwasher Shield
NIA5304529474 Frigidaire Seal
NI154647101 Frigidaire Dishwasher Pin Hinge
1A154756401 Frigidaire Hinge Cable
1154579101 Frigidaire Dishwasher Door Spring
2154093301 Frigidaire Dishwasher ARM Assembly Screw
35304513274 Frigidaire Dishwasher Counterbalance Arm Left Right
4808326801 Frigidaire Dishwasher Screw
55303013272 Frigidaire Oven Nut
6SCREW, PLT, 8-10, DARK FINISH
75304532799 Frigidaire Assembly Liner
8154294701 Frigidaire Dishwasher Screw
95304532199 Frigidaire Dishwasher Dispenser
10154103702 Frigidaire Dishwasher Screw
11A154579202 Frigidaire Dishwasher Pulley
11154579201 Frigidaire Dishwasher Pulley
125304525218 Frigidaire Door Latch Assembly
205304532267 Frigidaire Dishwasher Assembly-Door
21SCREW, TRUSS HD, 8-18 TYPE AB, DARK FINISH
40HANDLE, DOOR, NICKEL
41BRACKET, HANDLE
495304532198 Frigidaire Gasket
51WCI 154320301
53SCREW, RND-HD, M3 X 5, HANDLE MTG
