GDS20KBSBWW CABINET

GDS20KBSBWW CABINET

Written by

in

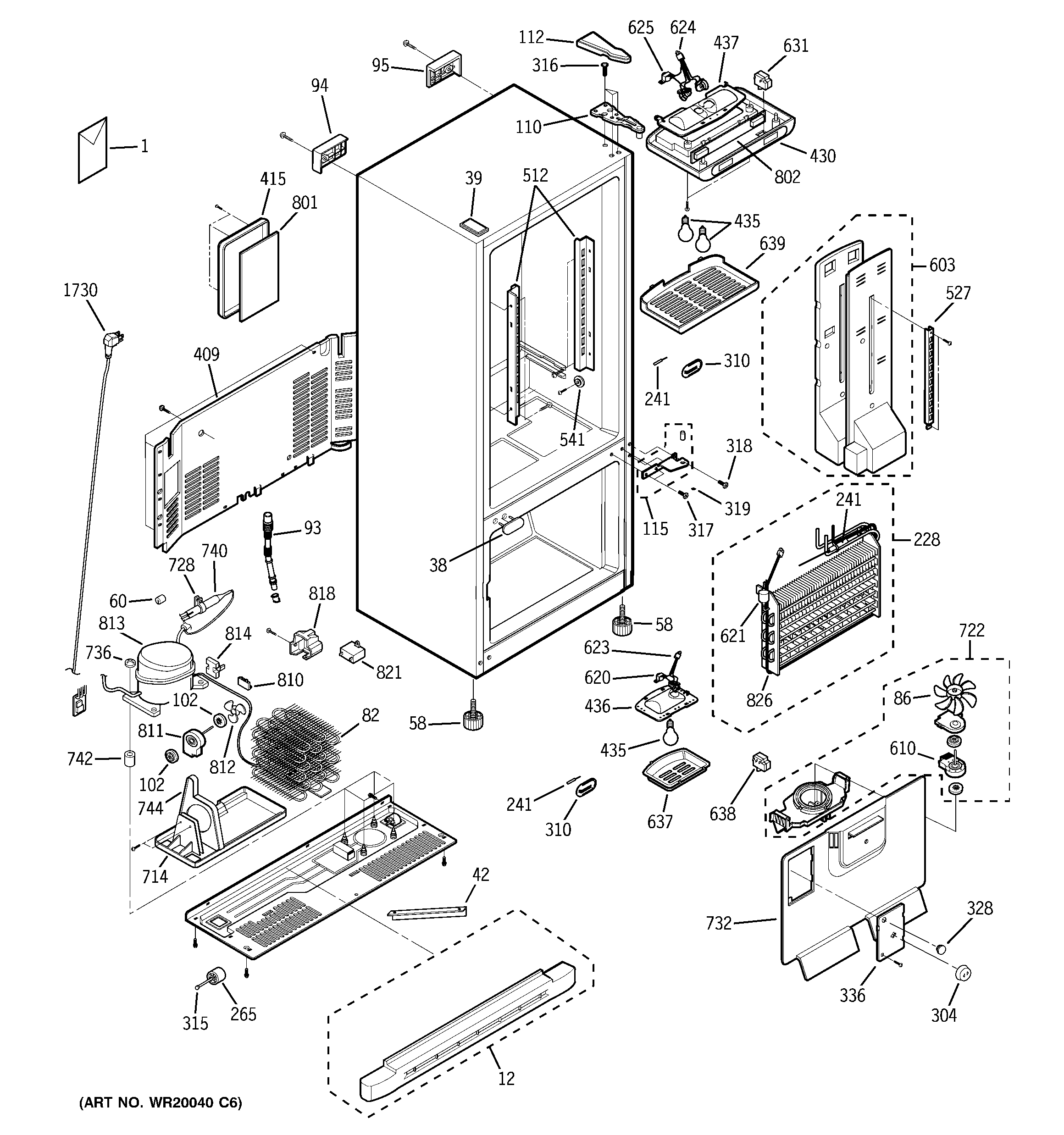

GDS20KBSBWW CABINET

Products

PositionProduct
1GEN 31-51651
1GEN 31-46043
1GEN 31-46168
1Use & Care
12GEN WR74X10202
12COVER ASM,LOWER
12COVER ASM,LOWER
38CAP,HINGE(C) BK
38CAP,HINGE(C) BQ
38CAP,HINGE(C)
39GEN WR02X11721
39CAP,HINGE(U) BQ
39CAP,HINGE(U) BK
42GEN WR02X12064
58GEN WR02X12262
60GEN 4J04328A
82GEN WR84X10060
86EVAP FAN BLADE
93GEN WR02X11697
94SUPPORT CAB LEFT
94GEN WR02X12141
94GEN WR02X12142
95SUPPORT CAB RIGHT BB
95GEN WR02X12143
95GEN WR02X12140
102GEN WR02X11694
110HINGE ASM UPPER
112COVER,HINGE(U) BK
112COVER,HINGE(U) BQ
112GEN WR02X11719
115HINGE ASM CENTER
115HINGE/PIN ASM WH CENTR
115HINGE ASM CENTER
228GEN WR85X10058
241WR55X10025 GE Refrigerator Temperature Sensor
265GEN WR02X11698
304GEN WR02X11318
310COVER THERMISTOR
315GEN 4J04238A
316GEN WR01X10524
317GEN WR01X10477
317GEN WR01X10474
317GEN WR01X10473
318HINGE CNTR BOLT BK
318GEN WR01X10472
318GEN WR01X10475
319GEN WR01X10471
328GEN WR02X11668
336GEN WR02X11669
409GEN WR17X11603
415GEN WR02X12269
430GEN WR17X11610
435RANGE ONLY 40W 120V APPL BULB
436GEN WR02X11656
437REFLECTOR,LAMP FF
512HOLDER SHELF
527HOLDER SHELF
541GEN WR02X11683
603GEN WR09X10115
610WR60X10196 GE Refrigerator Fan Motor Assembly
620GEN WR50X10044
621GEN WR50X10047
623SOCKET ASM,LAMP FZ
624SOCKET ASM,LAMP FF
625GEN WR50X10050
631FREEZER LIGHT SWITCH
637GEN WR02X11658
639GEN WR02X11661
714GEN WR30X10048
722GEN WR60X10146
728GEN WR02X11702
732GEN WR17X11602
736GEN WR02X11306
740WR86X25269 GE Refrigerator R134 Dryer
742GEN WR02X11787
744GEN WR17X11583
801WR55X10942C-includeCORE GE WR55X10942C Refrigerator Main Control + Core
802WR55X10522 GE Refrigerator Display Assembly Printed Wiring Board
810OVERLOAD
811WR84X10055 GE Refrigerator Condenser Fan Motor
812CONDENSER FAN BLADE
813WR87X20798 GE Refrigerator High Side Assembly
814WR07X10086 GE Refrigerator PTC Relay C03
818GEN WR02X11786
821WR55X24064 GE Refrigerator Run Capacitor
826GEN WR50X10043
1730WR23X10300 GE Refrigerator Power Cord Assembly
