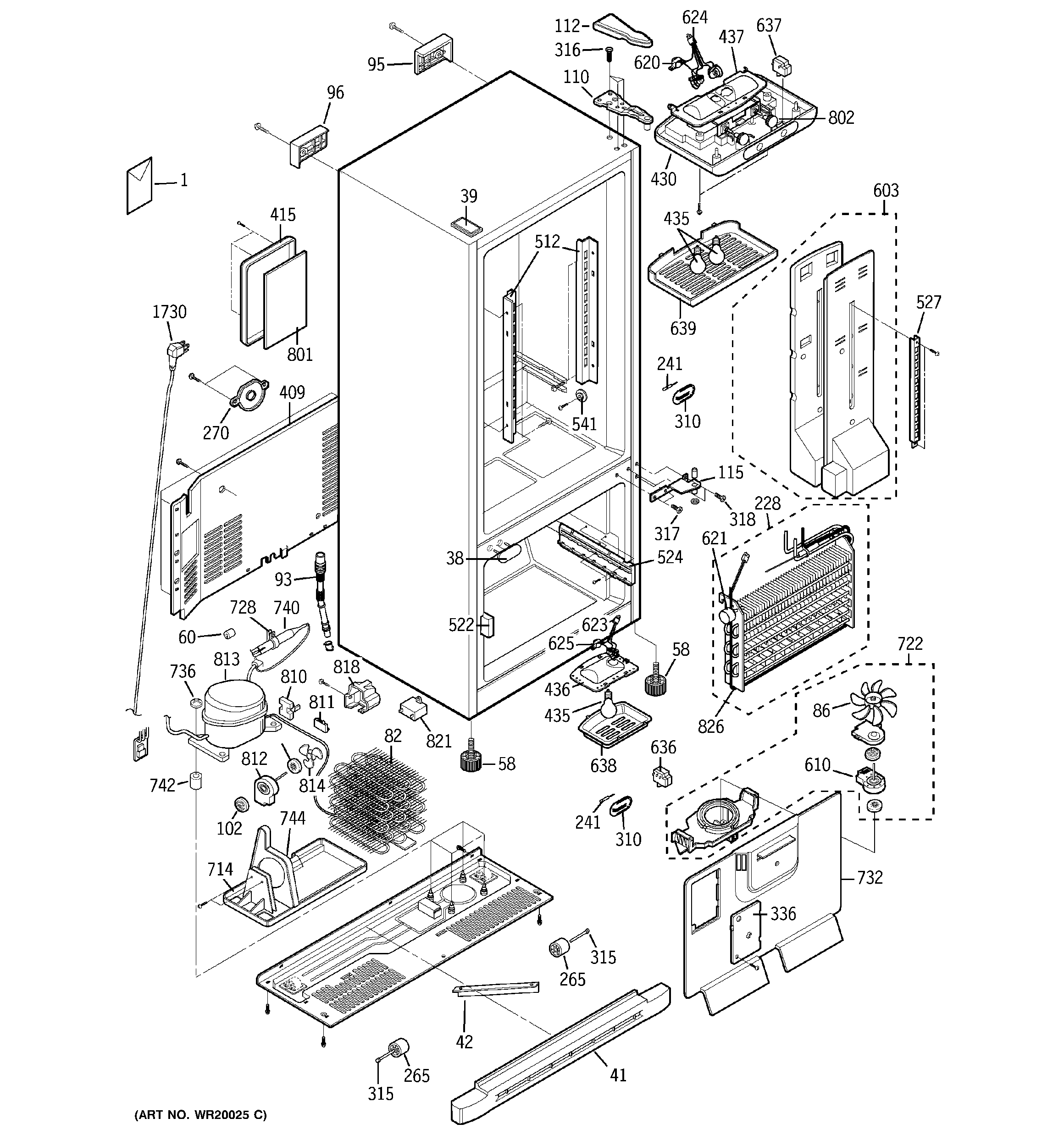

GDS20KCSBWW CABINET

Products

Position	Product
1	GEN 49-60361
1	GEN 31-51728
38	CAP,HINGE(C) BK
38	CAP,HINGE(C)
39	CAP,HINGE(U) BK
39	GEN WR02X11721
41	COVER ASM,LOWER
41	GEN WR17X11839
41	GEN WR74X10202
42	GEN WR02X12064
58	GEN WR02X12262
60	GEN 4J04328A
82	GEN WR84X10060
86	EVAP FAN BLADE
93	GEN WR02X11697
95	SUPPORT CAB RIGHT BB
95	GEN WR02X12141
96	GEN WR02X12140
96	SUPPORT CAB LEFT
102	GEN WR02X11694
110	HINGE ASM UPPER
112	GEN WR02X11719
112	COVER,HINGE(U) BK
115	HINGE ASM CENTER
115	HINGE/PIN ASM WH CENTR
228	GEN WR85X10058
241	WR55X10025 GE Refrigerator Temperature Sensor
265	GEN WR02X11698
270	GEN WR02X11690
310	COVER THERMISTOR
315	GEN 4J04238A
316	GEN WR01X10524
317	GEN WR01X10477
317	GEN WR01X10473
318	HINGE CNTR BOLT BK
318	GEN WR01X10472
336	GEN WR02X11669
409	GEN WR17X11603
415	GEN WR02X12269
430	GEN WR17X11610
435	RANGE ONLY 40W 120V APPL BULB
436	GEN WR02X11656
437	REFLECTOR,LAMP FF
512	HOLDER SHELF
522	GEN WR02X11682
524	GEN WR02X11681
527	HOLDER SHELF
541	GEN WR02X11683
603	GEN WR09X10115
610	WR60X10196 GE Refrigerator Fan Motor Assembly
620	GEN WR50X10044
621	GEN WR50X10047
623	SOCKET ASM,LAMP FZ
624	SOCKET ASM,LAMP FF
625	GEN WR50X10050
637	FREEZER LIGHT SWITCH
638	GEN WR02X11658
639	GEN WR02X11661
714	GEN WR30X10048
722	GEN WR60X10146
728	GEN WR02X11702
732	GEN WR17X11602
736	GEN WR02X11306
740	WR86X25269 GE Refrigerator R134 Dryer
742	GEN WR02X11787
744	GEN WR17X11583
801	WR55X10942C-includeCORE GE WR55X10942C Refrigerator Main Control + Core
802	GEN WR55X10095
810	OVERLOAD
811	WR84X10055 GE Refrigerator Condenser Fan Motor
812	CONDENSER FAN BLADE
813	WR87X20798 GE Refrigerator High Side Assembly
814	WR07X10086 GE Refrigerator PTC Relay C03
818	GEN WR02X11786
821	WR55X24064 GE Refrigerator Run Capacitor
826	GEN WR50X10043
1730	WR23X10300 GE Refrigerator Power Cord Assembly
