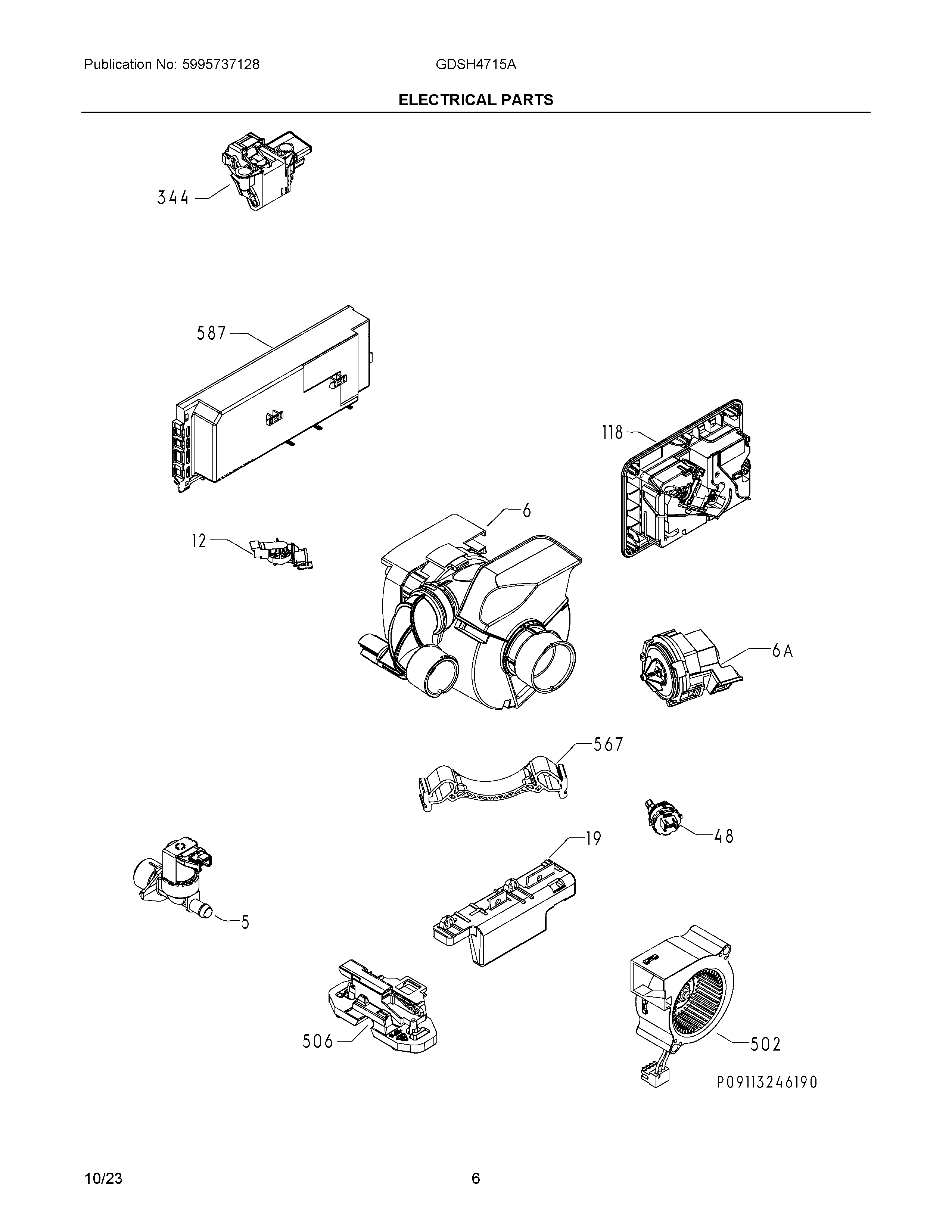

GDSH4715AD0A 04 – ELECTRICAL PARTS

Products

Position	Product
NI	A18268002 Frigidaire Dishwasher Harness
NI	807555203 Frigidaire Dishwasher Harness
NI	5304524544 Frigidaire Dishwasher Harness Assembly
5	807445905 Frigidaire Dishwasher Valve
6A	A00044328 Frigidaire Drain Pump
6	A10281708 Frigidaire Pump Assembly
12	A00055408 Frigidaire Dishwasher Switch
19	LAMP, DOOR INDICATOR, BLUE/WHITE
48	A00040106 Frigidaire Dishwasher Sensor
118	A22520901 Frigidaire Dispenser
344	111315040 Frigidaire Dishwasher Door Lock
502	A05660402 Frigidaire Dishwasher Assembly-Blower
506	A00056506 Frigidaire Switch Assembly
567	117302400 Frigidaire Dishwasher Support
587	117518780 Frigidaire Control Assembly
