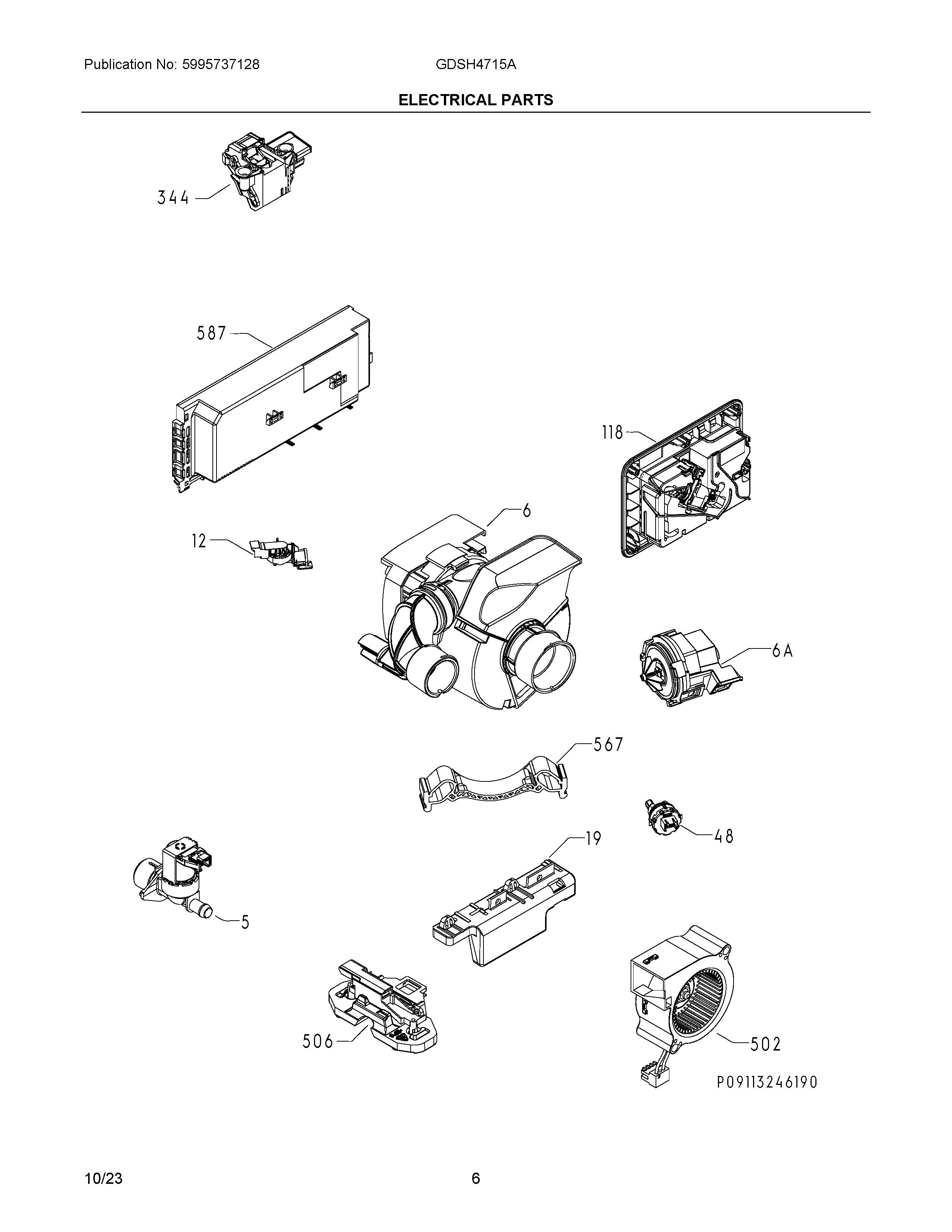

GDSH4715AF0A 04 – ELECTRICAL PARTS

Products

PositionProduct
NIA18268002 Frigidaire Dishwasher Harness
NI807555203 Frigidaire Dishwasher Harness
NI5304524544 Frigidaire Dishwasher Harness Assembly
5807445905 Frigidaire Dishwasher Valve
6AA00044328 Frigidaire Drain Pump
6A10281708 Frigidaire Pump Assembly
12A00055408 Frigidaire Dishwasher Switch
19LAMP, DOOR INDICATOR, BLUE/WHITE
48A00040106 Frigidaire Dishwasher Sensor
118A22520901 Frigidaire Dispenser
344111315040 Frigidaire Dishwasher Door Lock
502A05660402 Frigidaire Dishwasher Assembly-Blower
506A00056506 Frigidaire Switch Assembly
567117302400 Frigidaire Dishwasher Support
587117518780 Frigidaire Control Assembly
