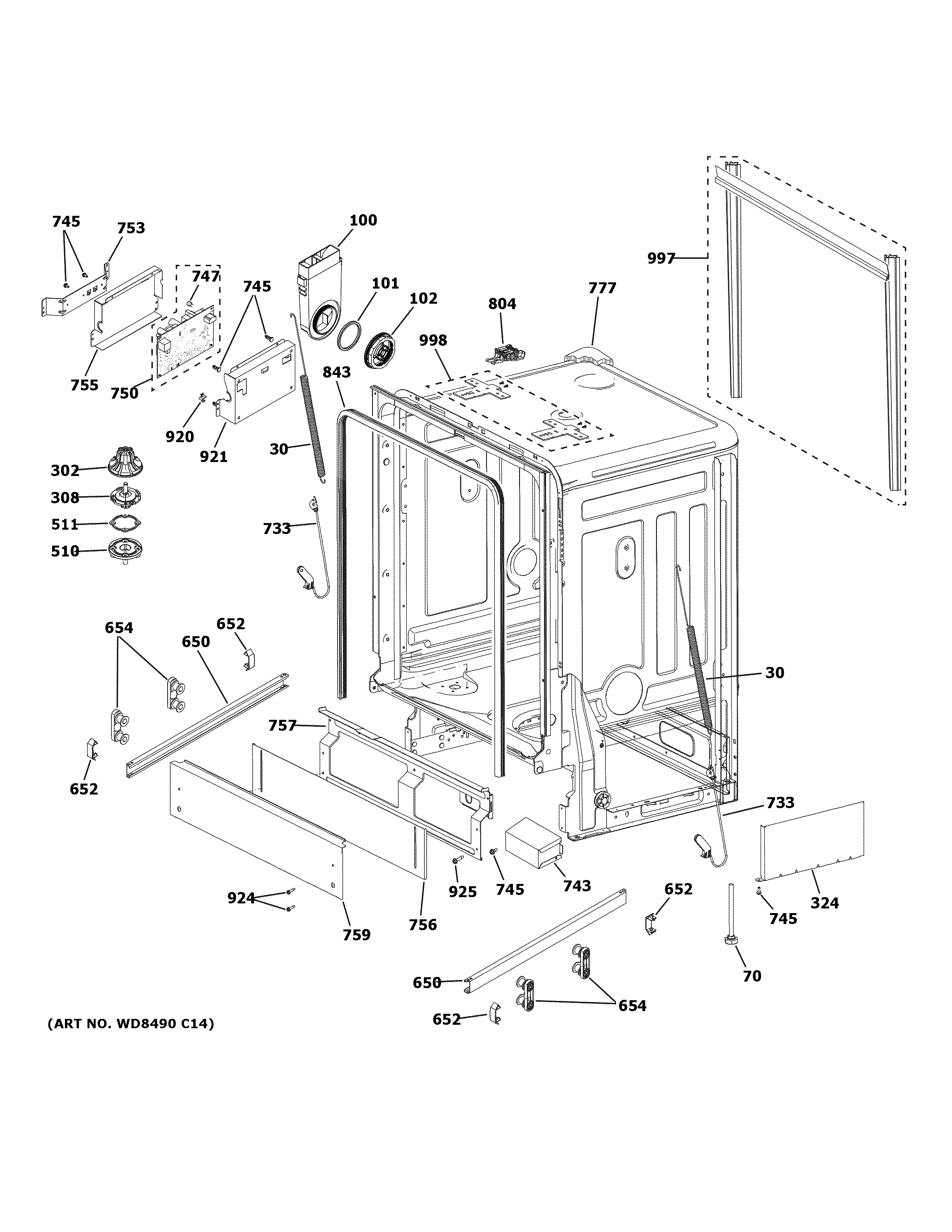

GDT225SGL0BB BODY PARTS

GDT225SGL0BB BODY PARTS

Written by

in

GDT225SGL0BB BODY PARTS

Products

PositionProduct
30WD02X24734 GE Spring Door
70WD02X25806 GE Dishwasher Leveling Leg
100VENT FUNNEL ASM
101WD08X27559 GE Dishwasher Gasket Vent Funnel
102VENT FUNNEL INLET NUT
302WD12X24658 GE Dishwasher Flood Float Cover
308WD12X24657 GE Dishwasher Flood Float & Switch Assembly
324WASH PUMP SHIELD
510WD12X24659 GE Dishwasher Flood Float Stem
511WD08X24660 GE Dishwasher Flood Float Stem Gasket
650WD30X25805 GE Dishwasher Upper Rack Slide
652WD12X24354 GE Dishwasher Rack Slide End Cap
654WD30X24688 GE Dishwasher Slide Support Rack
733WD02X24746 GE Dishwasher Cable Pulley Assembly
743JUNCTION BOX COVER
745WJ01X23759 GE Screw
747WD21X25696 GE Dishwasher Fuse
750WD21X24676 GE Dishwasher Main Control Board
753WD01X24634 GE Dishwasher Control Box Bracket
755WD01X24635 GE Dishwasher Front Control Box
756WD27X24727 GE Dishwasher Adjustable Toekick Black
757FRONT FRAME BRACE
759WD27X24748 GE Dishwasher Black Toekick
777WD30X26201 GE Dishwasher Tub Insulation Blanket
804WD12X24648 GE Dishwasher Door Striker Assembly
843WD08X24750 GE Dishwasher Tub Gasket
920WD02X24632 GE Dishwasher Control Board Clip
921WD01X24633 GE Control Box Back
924WD02X24608 GE Dishwasher Screw
925SCREW GROUND
997WD01X27198 GE Trim Kit
998WD02X25400 GE Dishwasher 24" Mounting Bracket
