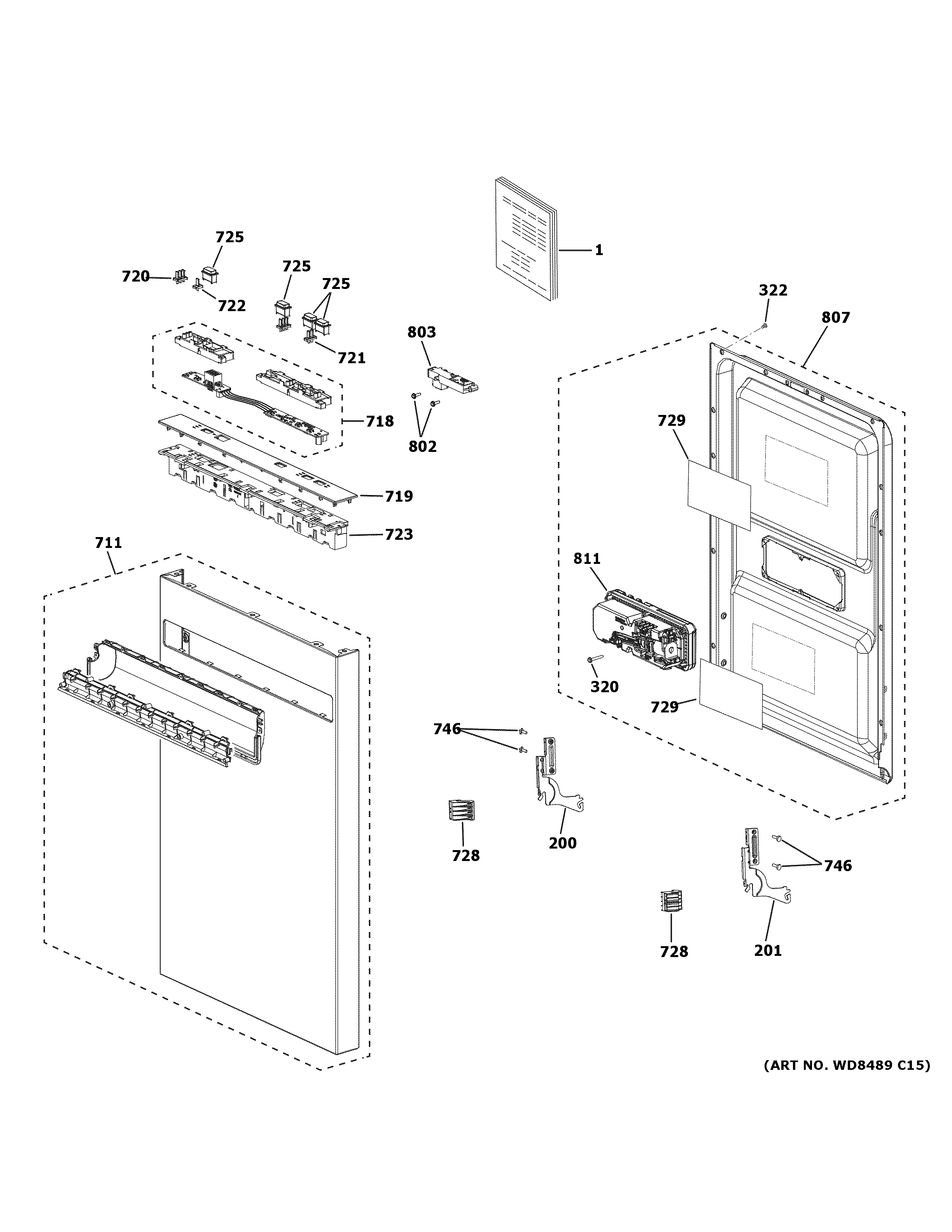

GDT225SGL2WW ESCUTCHEON & DOOR ASSEMBLYadmin2025-04-26T10:11:48+00:00GDT225SGL2WW ESCUTCHEON & DOOR ASSEMBLY ProductsPositionProduct1PM INSTALL INSTRUCTIONS1PRINTED ONLYMINI MANUAL AND WIRING1PM OWNERS MANUAL200WD01X24738 GE Dishwasher Hinge Mechanism Left Hand201WD01X24739 GE Dishwasher Hinge Mechanism Right Hand320WD02X24690 GE Screw322WD02X27558 GE Screw711WD27X24745 GE Dishwasher Outer Door Panel Assembly GDT WW718WD21X32839 GE UI Control Assembly719WD34X24733 GE Dishwasher Console Cover720WD02X26239 GE Dishwasher Light Pipe721LIGHT PIPE 2722WD02X26240 GE Dishwasher Light Pipe723WD12X26198 GE Dishwasher Console Assembly725WD09X24603 GE Dishwasher White Buttons728WD01X26238 GE Door Supporting Block729WD01X25807 GE Door Supporting Foam746WD02X24617 GE Water Valve Screw802WD02X24697 GE Latch Screw Assembly803WD12X24644 GE Dishwasher Door Latch807WD27X32800 GE Inner Door Assembly811WD12X32801 GE Dishwasher Detergent Module
