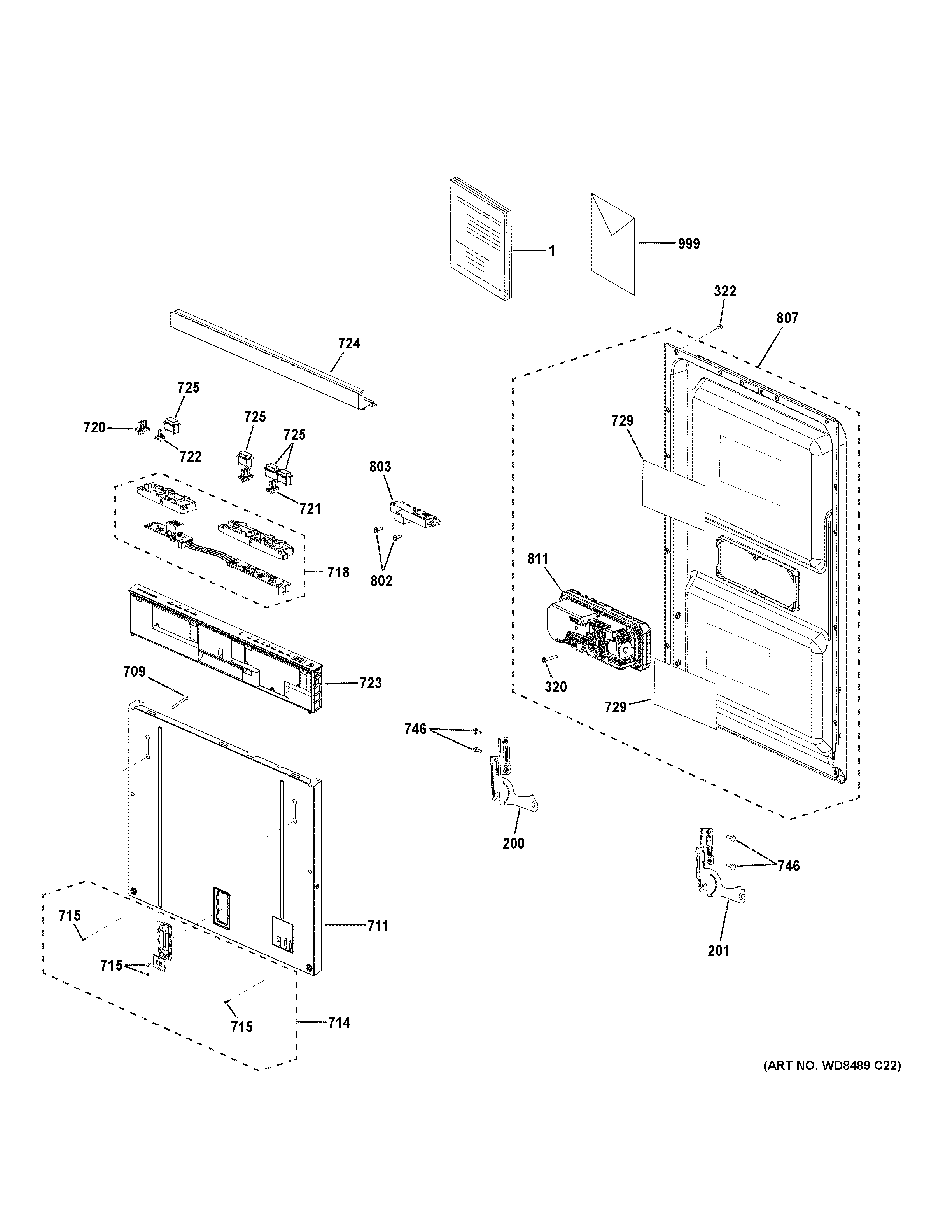

GDT226SIL2II ESCUTCHEON & DOOR ASSEMBLYadmin2025-04-26T10:10:32+00:00GDT226SIL2II ESCUTCHEON & DOOR ASSEMBLY ProductsPositionProduct1PM TEMPLATE1PM INSTALL INSTRUCTIONS1PRINTED ONLYMINI MANUAL AND WIRING1PM OWNERS MANUAL200WD01X24738 GE Dishwasher Hinge Mechanism Left Hand201WD01X24739 GE Dishwasher Hinge Mechanism Right Hand320WD02X24690 GE Screw322WD02X27558 GE Screw709CUSTOM DOOR SCREW711OUTER DOOR PANEL ASSEMBLY714CUSTOM DOOR LOWER LOCK KIT715WD02X28900 GE Lower Door Lock Assembly718WD21X28718 GE Dishwasher UI Control Assembly720WD02X26239 GE Dishwasher Light Pipe721LIGHT PIPE 2722WD02X26240 GE Dishwasher Light Pipe723WD34X28358 GE Console Integrated Door 24"724FILLER BRACKET ASSEMBLY725WD09X24601 GE Dishwasher Dorian Gray Button Assembly729WD01X25807 GE Door Supporting Foam746WD02X24617 GE Water Valve Screw802WD02X24697 GE Latch Screw Assembly803WD12X24644 GE Dishwasher Door Latch807WD27X32800 GE Inner Door Assembly811WD12X32801 GE Dishwasher Detergent Module999WD02X29298 GE Dishwasher Custom Door Template
