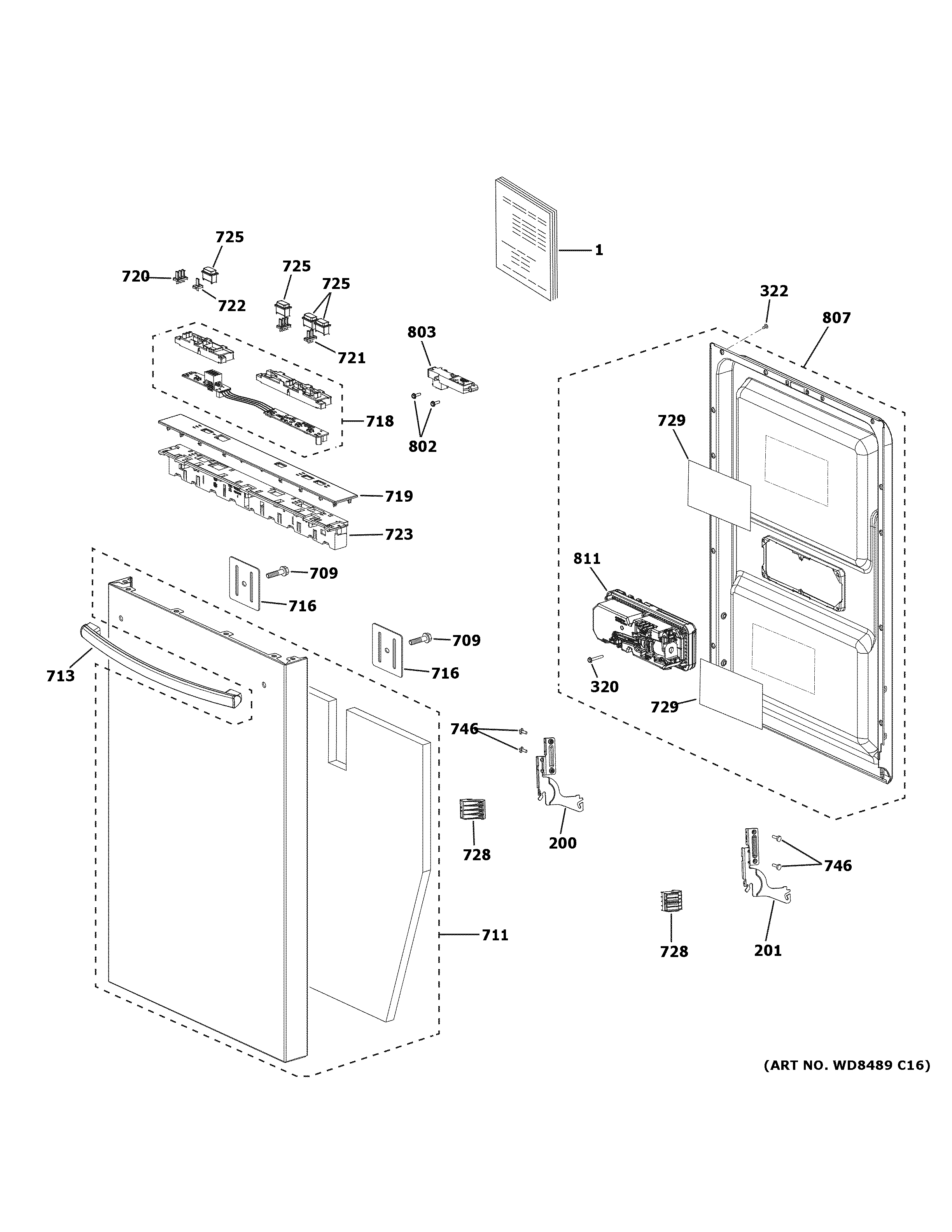

GDT226SSL1SS ESCUTCHEON & DOOR ASSEMBLY

GDT226SSL1SS ESCUTCHEON & DOOR ASSEMBLY

Written by

in

GDT226SSL1SS ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1PM INSTALL INSTRUCTIONS
1PRINTED ONLYMINI MANUAL AND WIRING
1PM OWNERS MANUAL
200WD01X24738 GE Dishwasher Hinge Mechanism Left Hand
201WD01X24739 GE Dishwasher Hinge Mechanism Right Hand
320WD02X24690 GE Screw
322WD02X27558 GE Screw
709HANDLE SCREW
711WD27X25065 GE Stainless Steel Outer Door Pan
713STAINLESS STEEL DOOR HANDLE
716WD01X25062 GE Handle Bracket Assembly
718WD21X28718 GE Dishwasher UI Control Assembly
719WD34X24732 GE Dishwasher Console Cover Stainless Steel
720WD02X26239 GE Dishwasher Light Pipe
721LIGHT PIPE 2
722WD02X26240 GE Dishwasher Light Pipe
723WD12X26198 GE Dishwasher Console Assembly
725WD09X24601 GE Dishwasher Dorian Gray Button Assembly
728WD01X26238 GE Door Supporting Block
729WD01X25807 GE Door Supporting Foam
746WD02X24617 GE Water Valve Screw
802WD02X24697 GE Latch Screw Assembly
803WD12X24644 GE Dishwasher Door Latch
807WD31X24740 GE Dishwasher Inner Door Assembly
811DETERGENT MODULE
