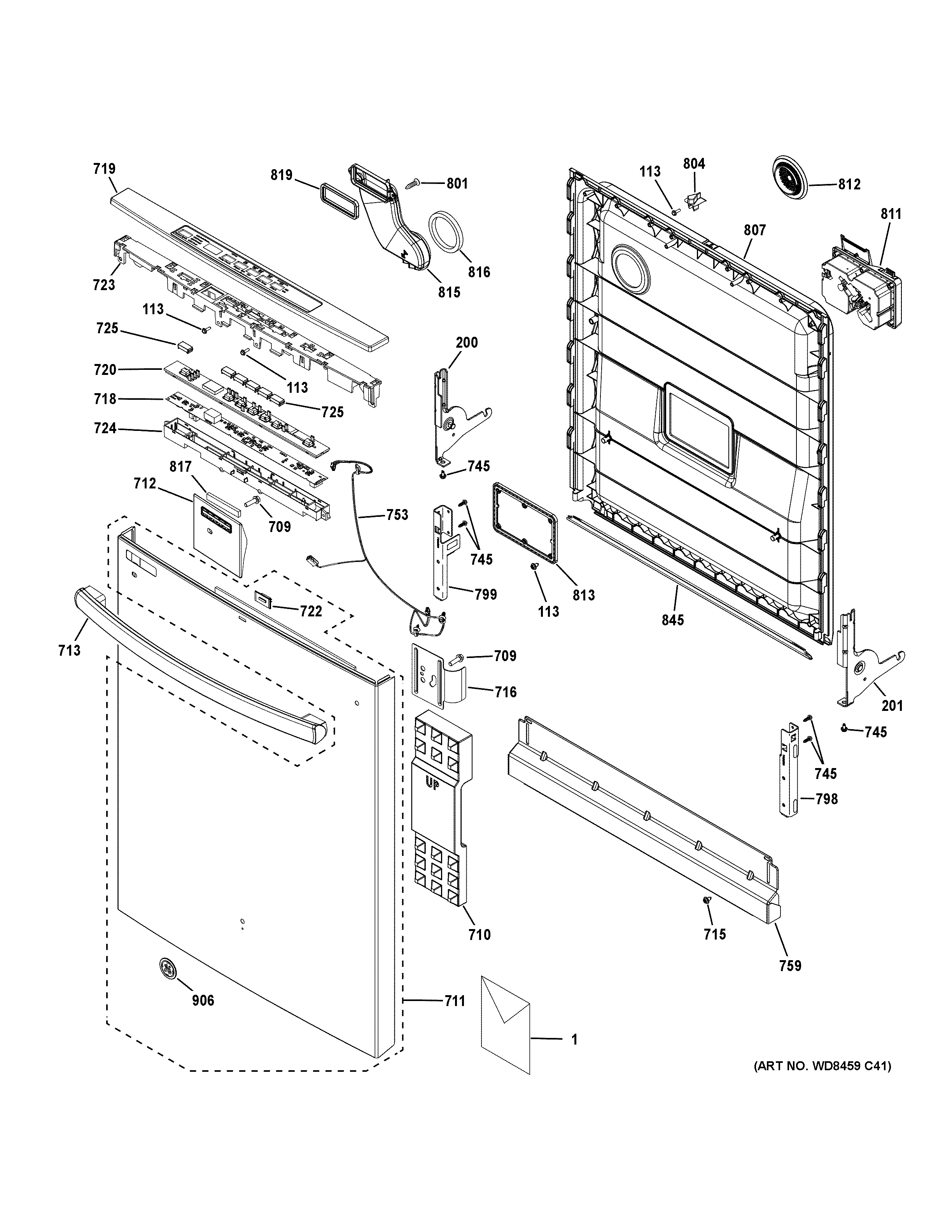

GDT530PGP4BB ESCUTCHEON & DOOR ASSEMBLY

GDT530PGP4BB ESCUTCHEON & DOOR ASSEMBLY

Written by

in

GDT530PGP4BB ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1PM INSTALL INSTRUCTIONS
1PM QUICK START GUIDE
1PM OWNERS MANUAL
1PM MINI MANUAL AND WIRING
113WD02X10067 GE Dishwasher Stainless Steel Screw 8-16 HXW
200WD14X20128 GE Dishwasher Right Door Arm Hinge Assembly
201WD14X20129 GE Dishwasher Left Door Hinge Assembly
709WD01X20934 GE Dishwasher Screw 1/4-28 FL IHXW 15/16
710WD01X10578 GE Dishwasher Foam Door Block
711WD27X24837 GE Outer Door Assembly Service
712WD12X24080 GE Vent Adapter Assembly
713WD09X25569 GE Dishwasher Black Handle Assembly
715WD02X10220 GE Dishwasher Hex Head 10-32 3/8" Screw
716WD01X20135 GE Dishwasher Handle Bracket
718WD21X26778 GE Dishwasher Configured Service 8 Button
719WD34X26485 GE Black Cover Console
720WD12X26484 GE Dishwasher Light Pipe
722WD09X20066 GE Dishwasher Lens and Adhesive Assembly
723WD12X10469 GE Dishwasher Control Cover
724WD12X10470 GE Dishwasher Bottom Housing
725WD09X24427 GE Dishwasher Black Button
745WD01X22514 GE Dishwasher Screw 10-32 GX IHXW 9/16 S
753WD21X26060 GE Dishwasher UI Harness Assembly
759TOE KICK
798WD01X22512 GE Dishwasher Hinge Support Bracket
799WD01X22513 GE Dishwasher Hinge Support Bracket
801WB02T10324 GE Oven Screw 6-20 GXB IHXW 3/8 NI
804WD13X10071 GE Dishwasher Door Strike
807WD31X24834 GE Dishwasher Inner Door Service Assembly
811DETERGENT MODULE
812WD12X10471 GE Dishwasher Grey Hybrid Vent
813WD12X10420 GE Dishwasher Detergent Plate
815WD12X26044 GE Dishwasher Air Diverter Assembly
816DOOR VENT SEAL
817WD08X10102 GE Foam Blanking Top Control
819GASKET VENT
845WD08X21894 GE Dishwasher Door Gasket
906WR04X28513 GE Refrigerator Badge Black Stainless
