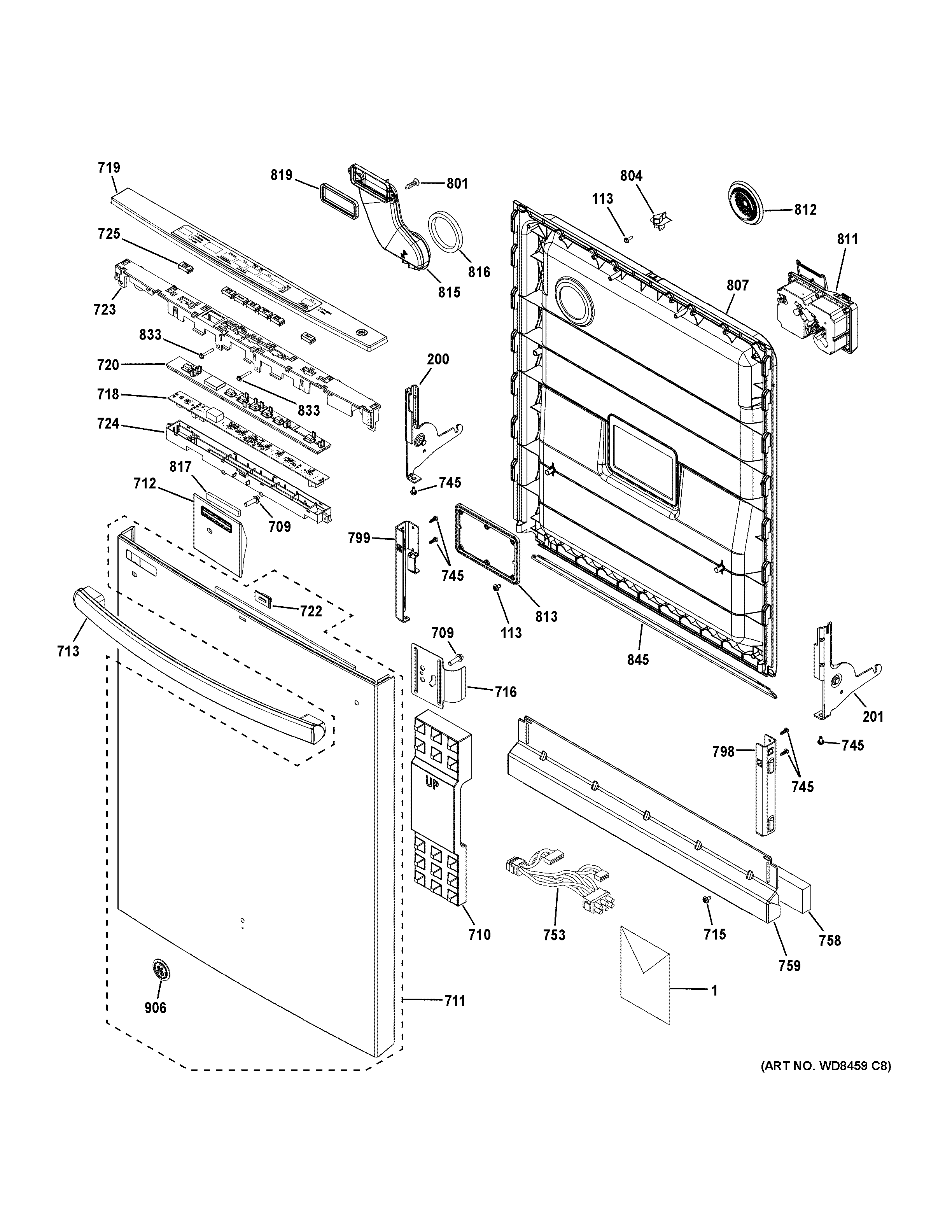

GDT530PSD2SS ESCUTCHEON & DOOR ASSEMBLY

GDT530PSD2SS ESCUTCHEON & DOOR ASSEMBLY

Written by

in

GDT530PSD2SS ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1INSERT MINI MANUAL
1PM MINIMANUAL
1PM INSTALL INSTRUCTIONS
1PM OWNERS MANUAL
113WD02X10067 GE Dishwasher Stainless Steel Screw 8-16 HXW
201ARM HINGE ASM RH
709WB01T10063 GE Oven Screw 1/4-TPI Flat Head Hex
710WD01X10585 GE Dishwasher Door Foam Block
711OUTER DOOR TOP CONTROL
712WD12X24081 GE Dishwasher Vent Adapter Assembly
713WD09X21321 GE Dishwasher Profile Handle Assembly
715WD02X10220 GE Dishwasher Hex Head 10-32 3/8" Screw
716WD01X10599 GE Dishwasher Handle Bracket
718CONFIGURED UI BOARD
719WD34X11829 GE Dishwasher Control Panel
720WD12X10454 GE Dishwasher Silicone Light Pipe
722WD09X20066 GE Dishwasher Lens and Adhesive Assembly
723WD12X10469 GE Dishwasher Control Cover
724WD12X10470 GE Dishwasher Bottom Housing
725BUTTON AND GRAPHICS ASM
745SCR 10-32 TT HXW 14/25 S
753WD21X10545 GE Dishwasher Door Harness Assembly
758WD27X21334 GE Insulation
759TOE KICK
798BRACKET SUPPORT HINGE
799WD35X20486 GE Dishwasher Hinge Assembly Kit
801WD02X10129 GE Dishwasher Screw 8-18 AB HW 1/2"
804WD13X10071 GE Dishwasher Door Strike
807WD31X10142 GE Dishwasher Inner Door & Latch Kit
811DETERGENT MODULE
812WD12X10471 GE Dishwasher Grey Hybrid Vent
813WD12X10420 GE Dishwasher Detergent Plate
815WD35X20855 GE Dishwasher Vent for Non-Fan Models
816DOOR VENT SEAL
817WD08X10102 GE Foam Blanking Top Control
833WD2X295 GE Refrigerator Screw
845WD08X21894 GE Dishwasher Door Gasket
906WR04X10181 GE Refrigerator Dishwasher Nameplate Badge
