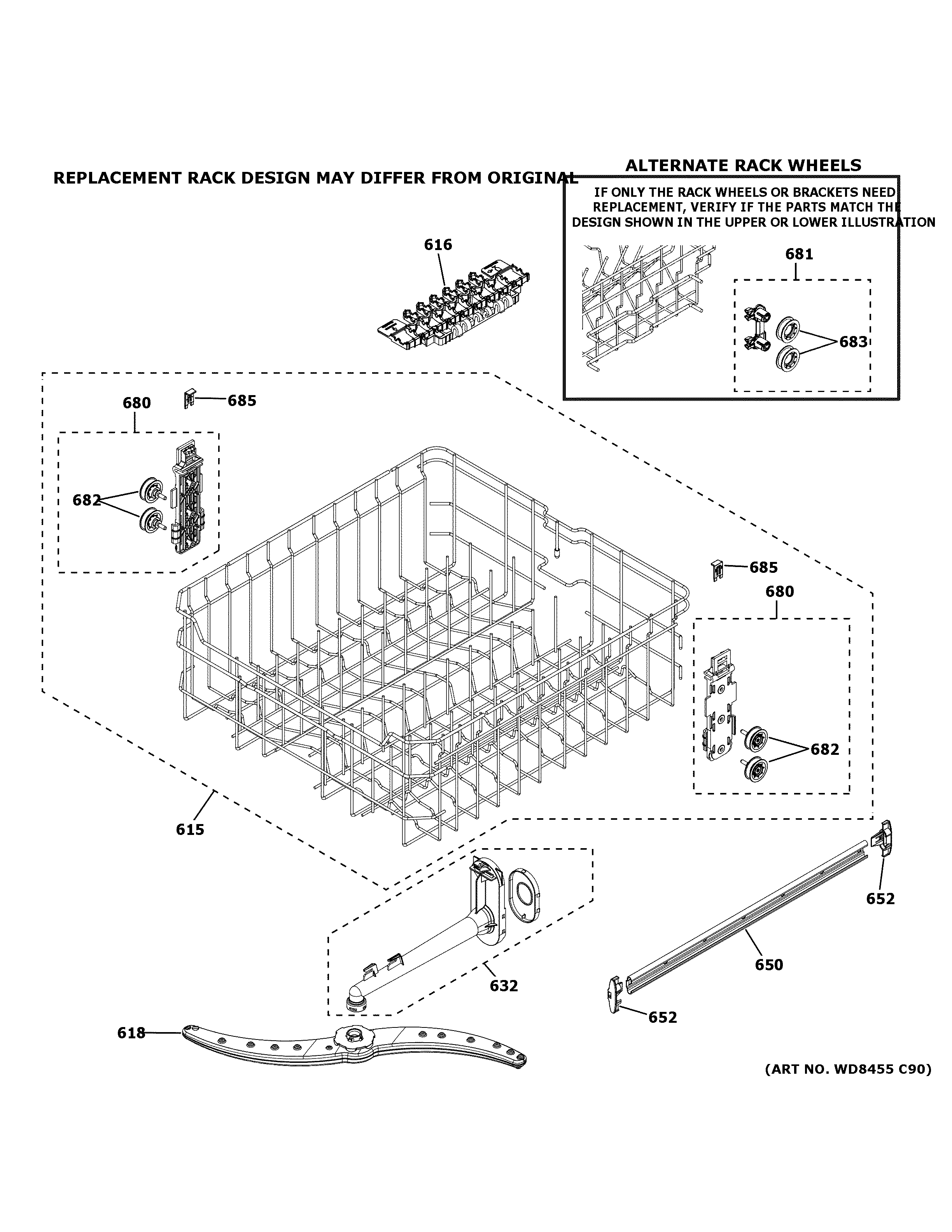

GDT535PGR6BB UPPER RACK ASSEMBLY

GDT535PGR6BB UPPER RACK ASSEMBLY

Written by

in

GDT535PGR6BB UPPER RACK ASSEMBLY

Products

PositionProduct
615UPPER RACK ASSEMBLY
616WD12X30218 GE Shelf Cup
618WD22X33498 GE Dishwasher Mid Spray Arm
632WD22X10090 GE Dishwasher Spray Arm Manifold
650WD30X27741 GE Dishwasher Rack Slide
652END CAP
680WD12X22802 GE Dishwasher Rack Bracket 2 Wheels
681WD12X27743 GE Dishwasher Upper Rack Roller and Stud
682WD12X27578 GE Dishwasher Rack Roller
685WD12X10430 GE Dishwasher Clip Bracket
