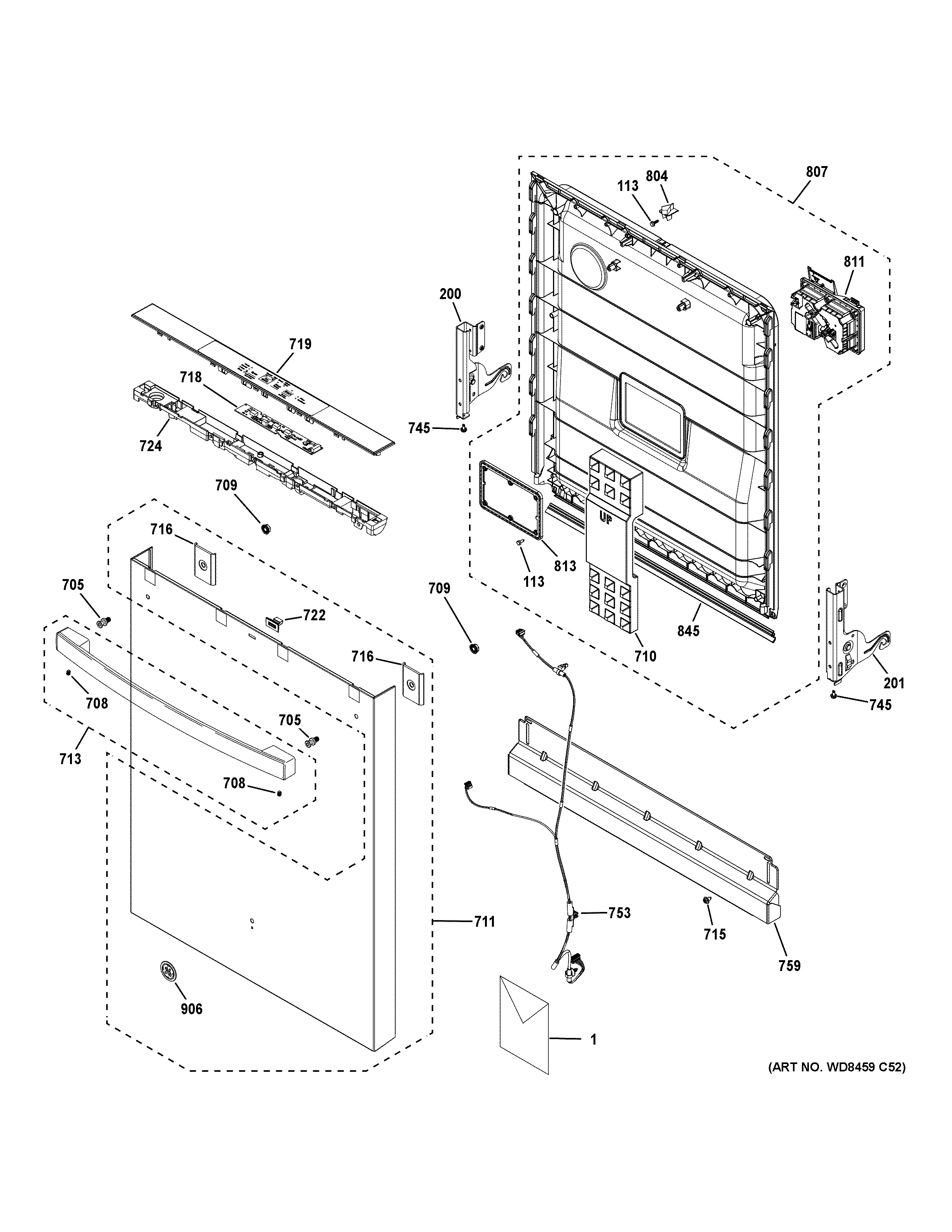

GDT535PGR6WW ESCUTCHEON & DOOR ASSEMBLY

GDT535PGR6WW ESCUTCHEON & DOOR ASSEMBLY

Written by

in

GDT535PGR6WW ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1PM OWNERS MANUAL
1INSERT MINI MANUAL
1PM QUICK OWNERS MANUAL
1PM INSTALL INSTRUCTIONS
1PM MINI MANUAL AND WIRING
113WD01X27719 GE Screw PL HXW 8-18 1/2
200WD01X27721 GE Dishwasher Door Hinge Assembly Left
201WD01X27720 GE Dishwasher Door Hinge Assembly Right
705WD02X30020 GE Dishwasher Door Handle Fastener
708WR01X11014 GE Refrigerator Set Screw
709WD02X25303 GE Lock Nut 5/16-18 x 1/2"
710WD01X29918 GE Door Foam Block
711WD27X30342 GE Dishwasher White Outer Door Panel
713WD09X30080 GE Door Handle White
715WD02X10220 GE Dishwasher Hex Head 10-32 3/8" Screw
716WD02X30678 GE Handle Bracket
718WD21X33541 GE Dishwasher User Interface Control Board
719WD34X30038 GE Console Cover
722WD01X29998 GE Door Lens
724WD12X30039 GE Console Bracket
745WD01X22514 GE Dishwasher Screw 10-32 GX IHXW 9/16 S
753WD21X32718 GE User Interface Harness
759WD27X27840 GE Dishwasher White Toekick
804WD13X10071 GE Dishwasher Door Strike
807WD27X30352 GE Dishwasher Inner Door
811DETERGENT MODULE
813WD12X10420 GE Dishwasher Detergent Plate
845WD08X21894 GE Dishwasher Door Gasket
906WR04X29375 GE Refrigerator GEA Badge Flat Chrome
