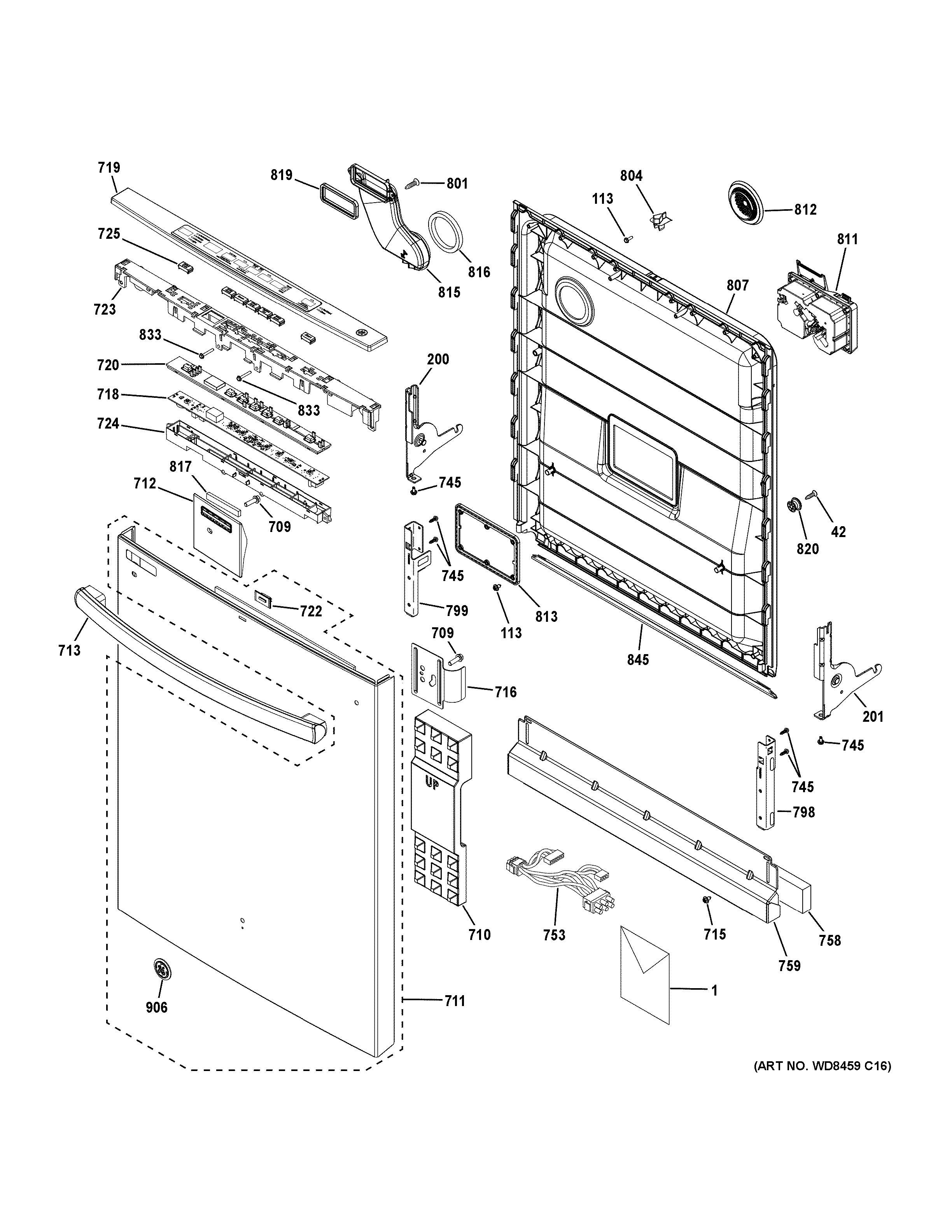

GDT545PGJ2WW ESCUTCHEON & DOOR ASSEMBLYadmin2025-04-26T10:25:25+00:00GDT545PGJ2WW ESCUTCHEON & DOOR ASSEMBLY ProductsPositionProduct1INSERT MINI MANUAL1PM MINI-MANUAL1PM INSTALL INSTRUCTIONS1PM OWNERS MANUAL42SCREW #8-3/4 L HX HD SS113WD02X10067 GE Dishwasher Stainless Steel Screw 8-16 HXW200WD14X20128 GE Dishwasher Right Door Arm Hinge Assembly201WD14X20129 GE Dishwasher Left Door Hinge Assembly709WD01X20934 GE Dishwasher Screw 1/4-28 FL IHXW 15/16710WD01X10578 GE Dishwasher Foam Door Block711WD34X11857 GE Dishwasher Kit Outer Door Assembly WH712WD12X24082 GE Dishwasher Vent Adapter Assembly713WD09X10100 GE Dishwasher Door Handle Assembly715WD02X10220 GE Dishwasher Hex Head 10-32 3/8" Screw716WD01X20135 GE Dishwasher Handle Bracket718CONFIGURED UI BOARD719WD34X22261 GE Dishwasher Control Console Cover720WD12X10456 GE Dishwasher Silicone Light Pipe722WD09X20066 GE Dishwasher Lens and Adhesive Assembly723WD12X10469 GE Dishwasher Control Cover724WD12X10470 GE Dishwasher Bottom Housing725WD09X21693 GE Dishwasher Button and Graphics Assembly745WD01X22514 GE Dishwasher Screw 10-32 GX IHXW 9/16 S753WD21X10545 GE Dishwasher Door Harness Assembly758WD27X21334 GE Insulation759WD27X26120 GE Dishwasher White Toekick Assembly798WD01X22512 GE Dishwasher Hinge Support Bracket799WD01X22513 GE Dishwasher Hinge Support Bracket801WB02T10324 GE Oven Screw 6-20 GXB IHXW 3/8 NI804WD13X10071 GE Dishwasher Door Strike807WD27X29398 GE Inner Door811DETERGENT MODULE812WD12X10471 GE Dishwasher Grey Hybrid Vent813WD12X10420 GE Dishwasher Detergent Plate815WD35X20855 GE Dishwasher Vent for Non-Fan Models816DOOR VENT SEAL817WD08X10102 GE Foam Blanking Top Control819GASKET VENT820WD01X21977 GE Dishwasher Door Mounting Basket833WD2X295 GE Refrigerator Screw845WD08X21894 GE Dishwasher Door Gasket906WR04X10181 GE Refrigerator Dishwasher Nameplate Badge
