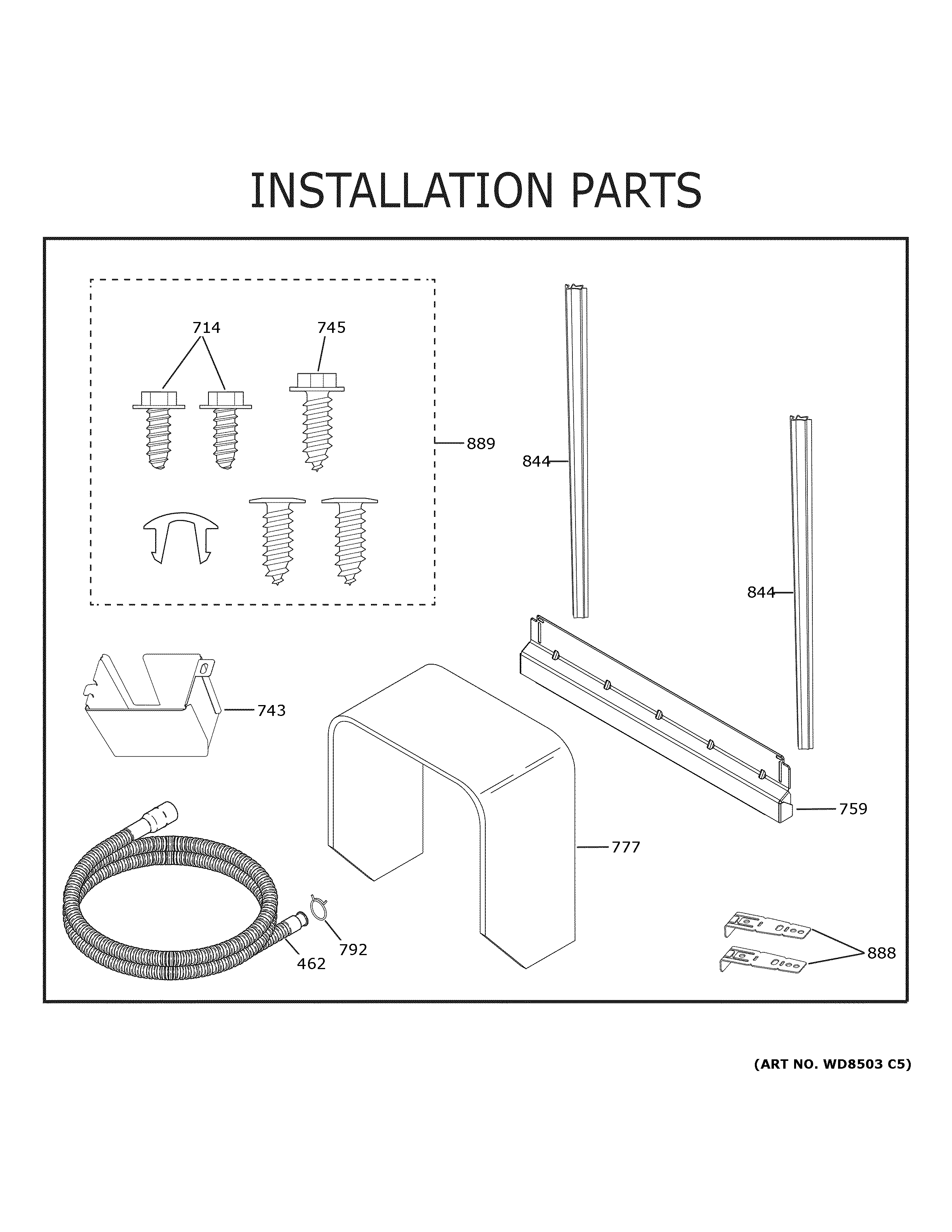

GDT630PFM5DS INSTALLATION PARTS

Written by

Products

Position	Product
462	DRAIN TUBE ASM
714	WD02X10160 GE Screw
743	WD12X10412 GE Dishwasher Wiring Cover
745	WD01X22514 GE Dishwasher Screw 10-32 GX IHXW 9/16 S
759	TOE KICK
777	TUB INSULATION
792	WD01X10104 GE Dishwasher Hose Clamp
844	WD01X29479 GE Dishwasher Black Tub Trim
888	WD01X21740 GE Dishwasher Countertop Mounting Bracket
889	CT SCREW ASM
