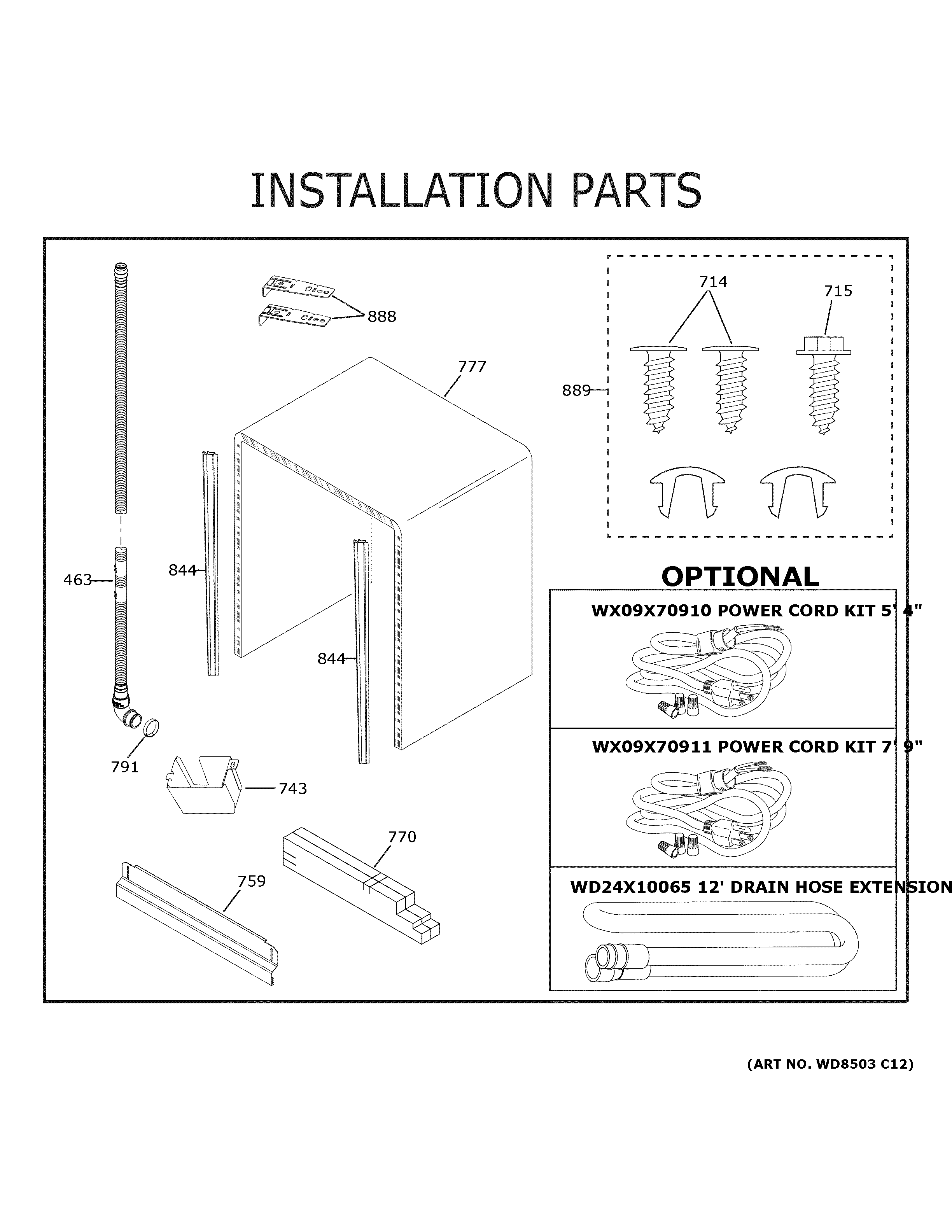

GDT630PFM6DS INSTALLATION PARTS

GDT630PFM6DS INSTALLATION PARTS

Written by

in

GDT630PFM6DS INSTALLATION PARTS

Products

PositionProduct
463HIGH LOOP DRAIN HOSE
714WR01X10065 GE Screw
715WD02X10220 GE Dishwasher Hex Head 10-32 3/8" Screw
743WD12X10412 GE Dishwasher Wiring Cover
759TOE KICK
770WD30X28098 GE Dishwasher Insulation Bag Assembly
777TUB INSULATION
791WD01X24246 GE Dishwasher Clamp
844WD01X29479 GE Dishwasher Black Tub Trim
888WD01X27759 GE Mounting Bracket
889WD02X27760 GE Dishwasher Countertop Bracket Screws AS
