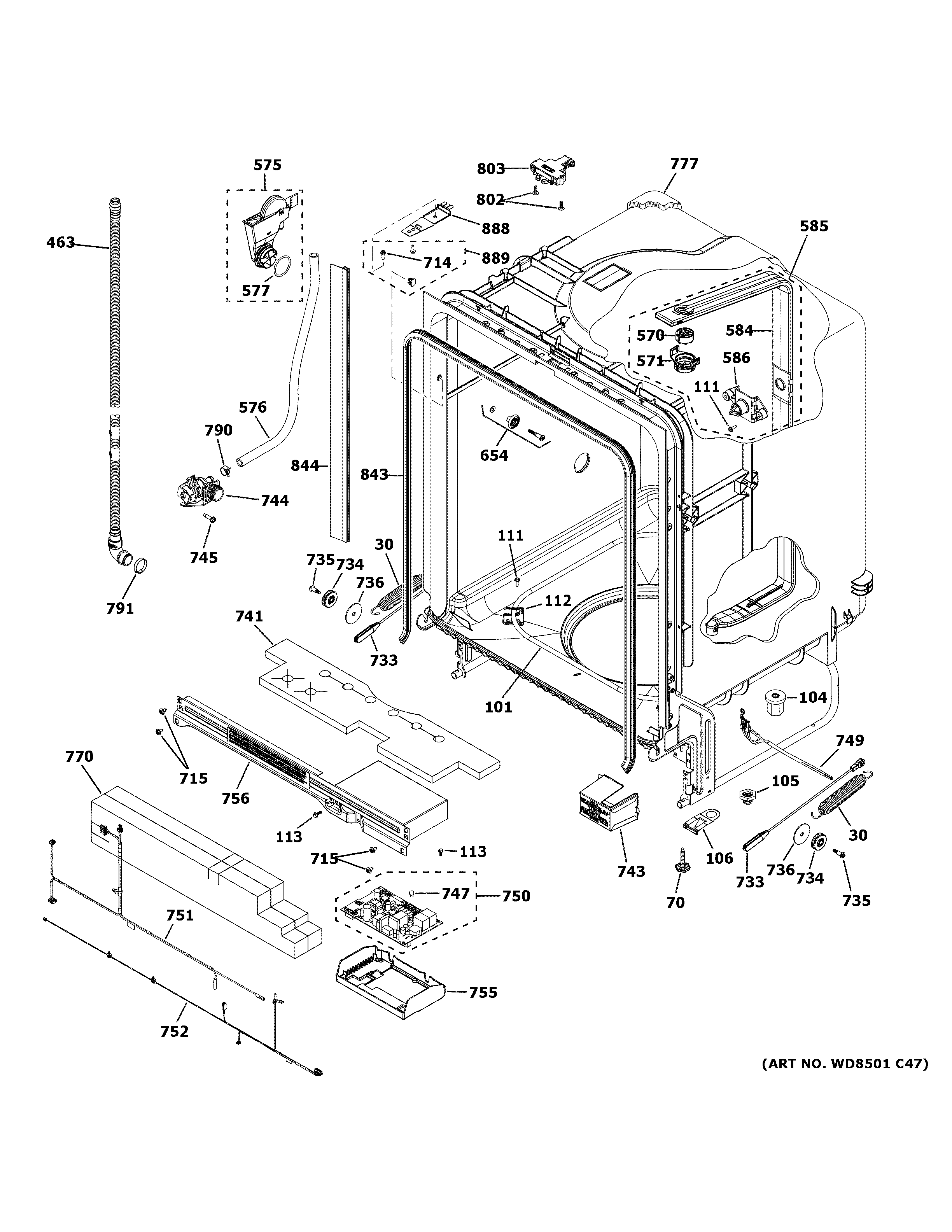

GDT630PGM6WW BODY PARTS (1)

GDT630PGM6WW BODY PARTS (1)

Written by

in

GDT630PGM6WW BODY PARTS (1)

Products

PositionProduct
30WD03X20445 GE Dishwasher Door Spring
70WD02X31882 GE Leveling Leg
101HEATING ELEMENT
104WD01X10070 GE Dishwasher Nut
105WD02X28518 GE Dishwasher Heater Nut
106WD01X27718 GE Dishwasher Grounding Plate
111WD02X10067 GE Dishwasher Stainless Steel Screw 8-16 HXW
112WD01X24381 GE Dishwasher Clip Heater Twist Lock
113WD01X27719 GE Screw PL HXW 8-18 1/2
463HIGH LOOP DRAIN HOSE
570WD22X20689 GE Dishwasher Impeller
571WD22X20688 GE Dishwasher Hub
575WD12X28478 GE Dishwasher Fill Funnel
576WD24X27726 GE Dishwasher Fill Funnel Hose
577WD08X23817 GE Dishwasher O-Ring
584WD12X25680 GE Dishwasher Main Conduit
585WD12X32041 GE Main Conduit
586WD12X32039 GE Dishwasher Conduit Docking Port
654WD12X10433 GE Dishwasher Tub Roller and Stud Assembly
714WR01X10065 GE Screw
715WD02X10220 GE Dishwasher Hex Head 10-32 3/8" Screw
733WD01X10569 GE Dishwasher Door Cable
734WD16X21836 GE Dishwasher Pulley
735WD01X21837 GE Dishwasher Screw 10-32
736WD01X20593 GE Dishwasher Friction Washer
741INSULATION BOTTOM FRONT
743WD12X10412 GE Dishwasher Wiring Cover
744WATER VALVE ASM
745WD01X22514 GE Dishwasher Screw 10-32 GX IHXW 9/16 S
747WD21X25696 GE Dishwasher Fuse
749WD21X26318 GE Dishwasher Jumper Harness
750WD21X29604 GE Machine Control Board Configured
751WD21X32680 GE Dishwasher Ac Harness
752WD21X26860 GE Dishwasher Direct Connect Harness Assembly
755WD30X29079 GE Dishwasher Control Box Bottom
756WD30X28638 GE Dishwasher Control Box
770WD30X28098 GE Dishwasher Insulation Bag Assembly
777TUB INSULATION
790WD01X22786 GE Dishwasher Hose Clamp
791WD01X24246 GE Dishwasher Clamp
802WR01X10380 GE Refrigerator Stainless Steel Screw 8-18 AB TSQ 5/8
803WD21X10490 GE Dishwasher Standard Tub Side Door Latch
843GASKET TUB PLASTIC
844WD01X29478 GE White Tub Trim
888WD01X27759 GE Mounting Bracket
889WD02X27760 GE Dishwasher Countertop Bracket Screws AS
