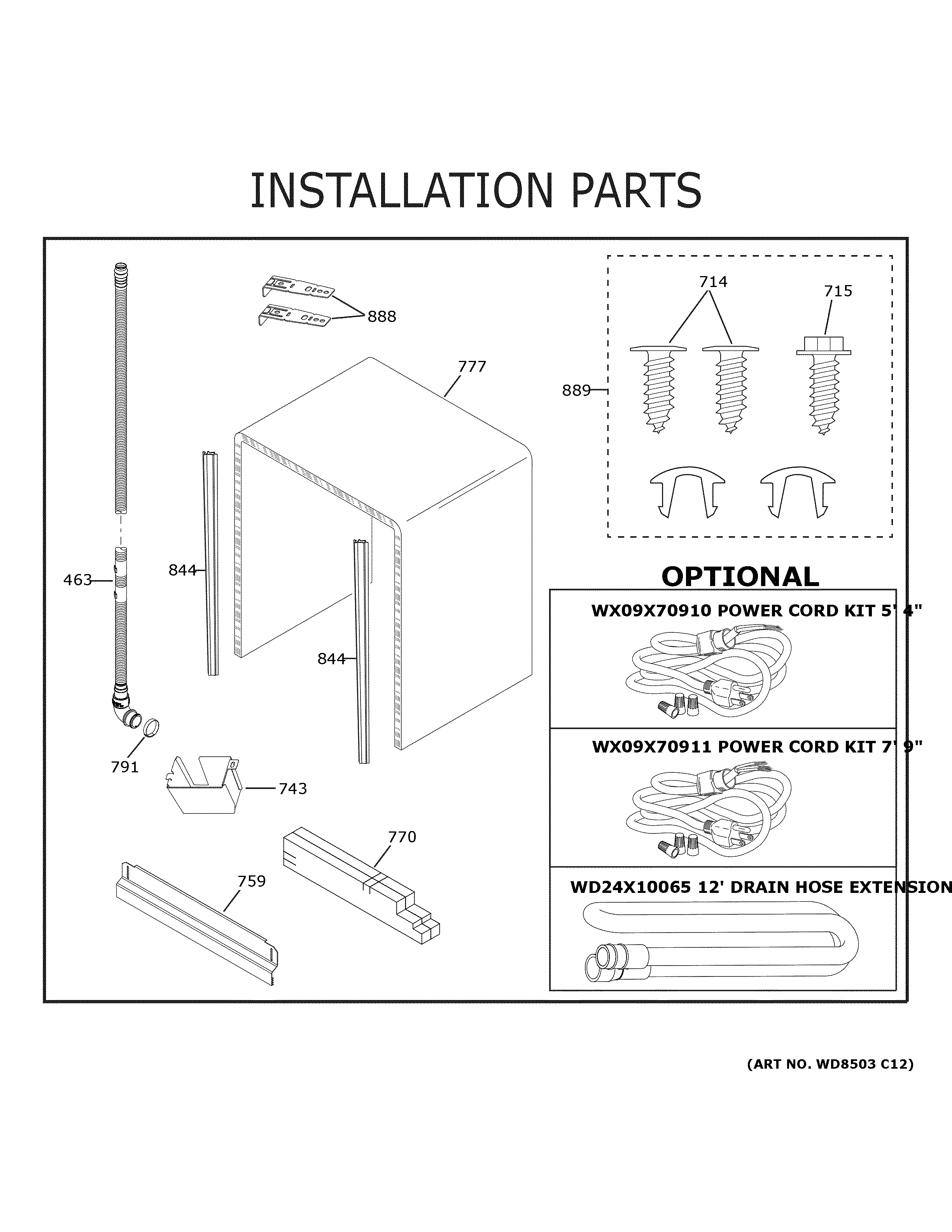

GDT630PGM6WW INSTALLATION PARTS

GDT630PGM6WW INSTALLATION PARTS

Written by

in

GDT630PGM6WW INSTALLATION PARTS

Products

PositionProduct
463HIGH LOOP DRAIN HOSE
714WR01X10065 GE Screw
715WD02X10220 GE Dishwasher Hex Head 10-32 3/8" Screw
743WD12X10412 GE Dishwasher Wiring Cover
759WD27X26120 GE Dishwasher White Toekick Assembly
770WD30X28098 GE Dishwasher Insulation Bag Assembly
777TUB INSULATION
791WD01X24246 GE Dishwasher Clamp
844WD01X29478 GE White Tub Trim
888WD01X27759 GE Mounting Bracket
889WD02X27760 GE Dishwasher Countertop Bracket Screws AS
