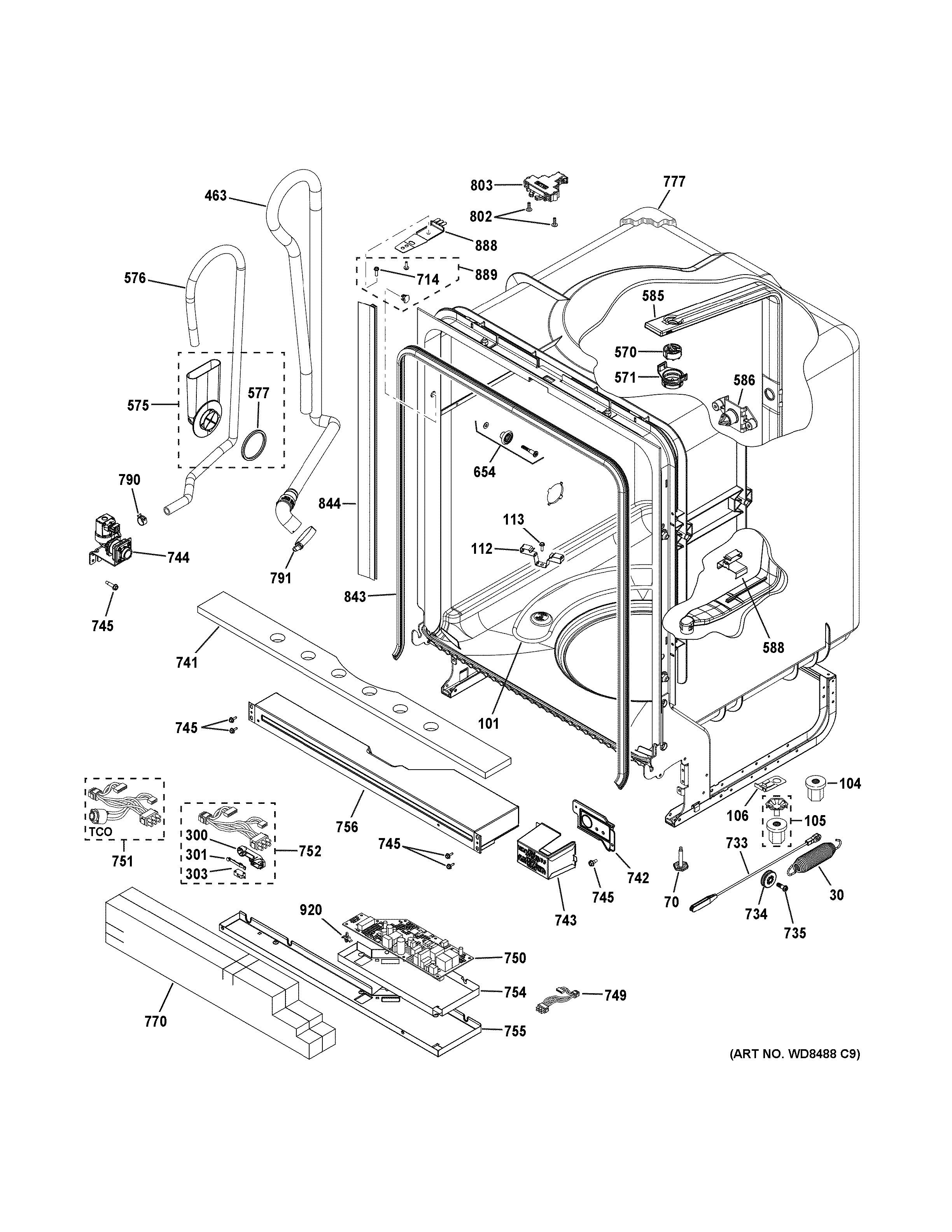

GDT635HMJ5ES BODY PARTS

GDT635HMJ5ES BODY PARTS

Written by

in

GDT635HMJ5ES BODY PARTS

Products

PositionProduct
30SPRING DOOR
70WD02X31882 GE Leveling Leg
101HEATING ELEMENT
104WD01X10070 GE Dishwasher Nut
105WD02X28518 GE Dishwasher Heater Nut
106WD02X26579 GE Dishwasher Grounding Plate
112WD01X22507 GE Dishwasher Heater Support
113WD02X10067 GE Dishwasher Stainless Steel Screw 8-16 HXW
300WD01X23496 GE Switch
301LEVER SWITCH FLOOD
303WD21X23498 GE Dishwasher Flood Switch
463HIGH LOOP DRAIN HOSE
570WD22X20689 GE Dishwasher Impeller
571WD22X20688 GE Dishwasher Hub
575WD49X23818 GE Dishwasher Funnel Service Kit
576WD24X27659 GE Dishwasher Fill Funnel Hose
577WD08X23817 GE Dishwasher O-Ring
585WD12X21681 GE Dishwasher Main Conduit
586WD12X32039 GE Dishwasher Conduit Docking Port
588WD01X23982 GE Dishwasher Conduit Clip
654WD12X10433 GE Dishwasher Tub Roller and Stud Assembly
714WD02X10160 GE Screw
733WD01X10569 GE Dishwasher Door Cable
734WD16X21836 GE Dishwasher Pulley
735WD01X21837 GE Dishwasher Screw 10-32
741WD01X22620 GE Dishwasher Insulation Bottom Front
742WD12X25060 GE Junction Box Bracket Assembly
743WD12X10412 GE Dishwasher Wiring Cover
744WATER VALVE AND HARNESS SE
745WD01X22514 GE Dishwasher Screw 10-32 GX IHXW 9/16 S
749WD21X23559 GE Dishwasher Wire Harness
750WD21X24901C-includeCORE GE WD21X24901C Dishwasher Electronic Control Board + Core
751HARNESS ASM AC
752WD21X23856 GE Dishwasher Direct Connect Harness Assembly
754WD01X21974 GE Dishwasher Dielectric Shield
755WD30X21714 GE Dishwasher Bottom Control Box
756WD27X32298 GE Control Box Assembly Top
770WD01X23916 GE Insulation Assembly Bag
777TUB INSULATION
790WD01X22786 GE Dishwasher Hose Clamp
791WD01X24246 GE Dishwasher Clamp
802WR01X10380 GE Refrigerator Stainless Steel Screw 8-18 AB TSQ 5/8
803WD21X10490 GE Dishwasher Standard Tub Side Door Latch
843GASKET TUB PLASTIC
844WD01X29479 GE Dishwasher Black Tub Trim
888WD01X21740 GE Dishwasher Countertop Mounting Bracket
889CT SCREW ASM
920WD01X21975 GE Dishwasher Control Board Clip
