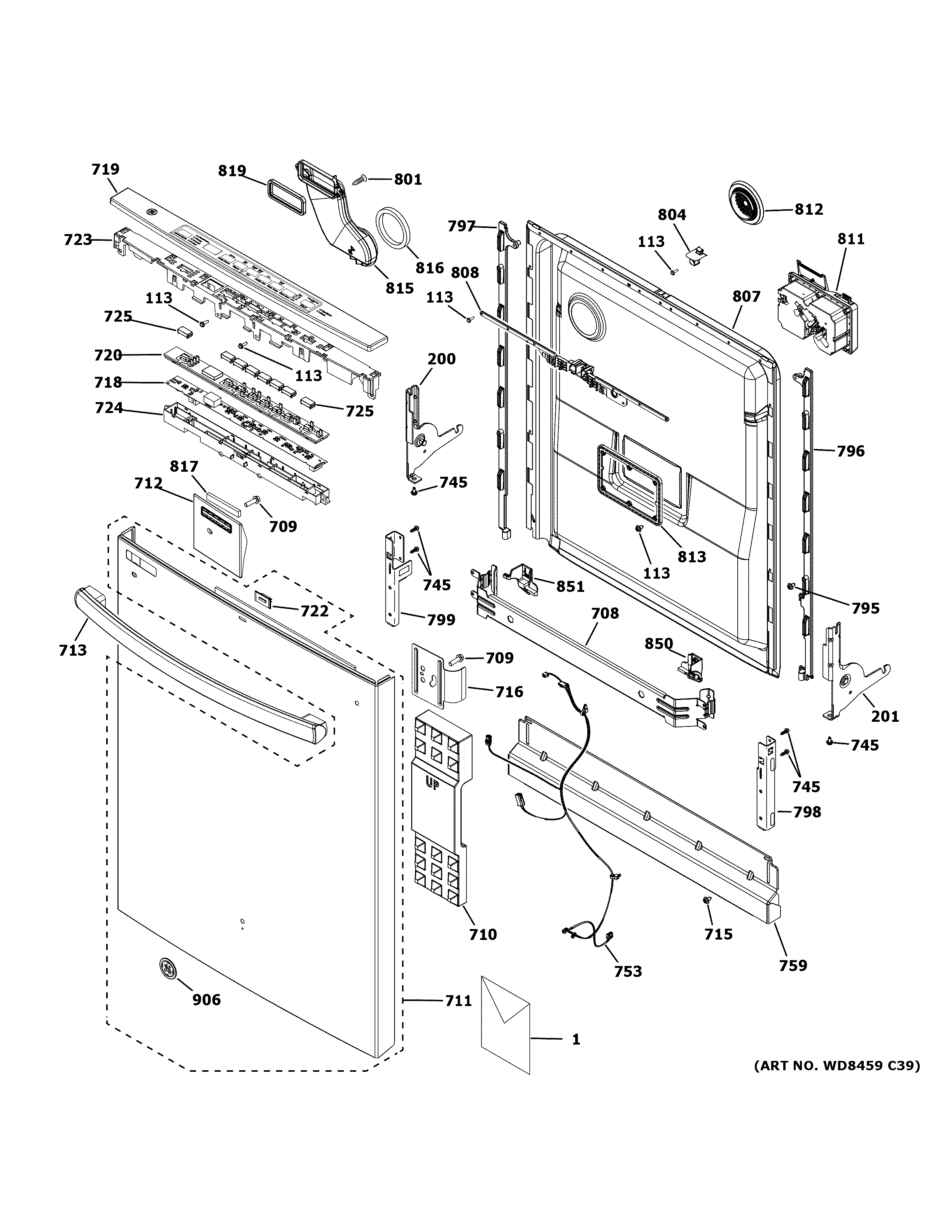

GDT635HMM4ES ESCUTCHEON & DOOR ASSEMBLY

GDT635HMM4ES ESCUTCHEON & DOOR ASSEMBLY

Written by

in

GDT635HMM4ES ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1PM INSTALL INSTRUCTIONS
1PM QUICK START GUIDE
1PM OWNERS MANUAL
1PM MINI MANUAL AND WIRING
113WD02X10067 GE Dishwasher Stainless Steel Screw 8-16 HXW
200WD14X20128 GE Dishwasher Right Door Arm Hinge Assembly
201WD14X20129 GE Dishwasher Left Door Hinge Assembly
708WD30X10045 GE Dishwasher Door Brace Assembly
709WD01X20934 GE Dishwasher Screw 1/4-28 FL IHXW 15/16
710WD01X10578 GE Dishwasher Foam Door Block
711WD27X24843 GE Dishwasher Service Outer Door Assembly ES
712VENT ADAPTER ASM
713WD09X25560 GE Dishwasher Stainless Steel Handle
715WD02X10220 GE Dishwasher Hex Head 10-32 3/8" Screw
716WD01X20135 GE Dishwasher Handle Bracket
718WD21X26050 GE Dishwasher Configured Service Button 8
719WD34X24445 GE Dishwasher Graphics Console Cover Assembly
720WD12X23316 GE Dishwasher Silicone Light Pipe
722WD09X20066 GE Dishwasher Lens and Adhesive Assembly
723WD12X20184 GE Dishwasher Top Control Console
724WD12X10470 GE Dishwasher Bottom Housing
725WD09X24425 GE Dishwasher Button
745WD01X22514 GE Dishwasher Screw 10-32 GX IHXW 9/16 S
753WD21X26358 GE Dishwasher UI Harness Assembly
759TOE KICK
795WD02X22628 GE Dishwasher Plastite Screw T15 8-16
796WD01X22836 GE Dishwasher Right Hand Attach Strip
797ATTACHMENT STRIP LH
798WD01X22512 GE Dishwasher Hinge Support Bracket
799WD01X22513 GE Dishwasher Hinge Support Bracket
801WB02T10324 GE Oven Screw 6-20 GXB IHXW 3/8 NI
804WD13X10071 GE Dishwasher Door Strike
807WD27X26524 GE Inner Door Service Assembly
808WD13X22837 GE Dishwasher Top Strip Attachment
811DETERGENT MODULE
812WD12X10472 GE Dishwasher Dark Gray Vent
813WD12X10462 GE Dishwasher Detergent Plate
815WD12X26044 GE Dishwasher Air Diverter Assembly
816DOOR VENT SEAL
817WD08X10102 GE Foam Blanking Top Control
819GASKET VENT
850WD12X22540 GE Dishwasher Right Hand Door Trim
851WD12X22541 GE Dishwasher Door Trim Left Hand
906WR04X29375 GE Refrigerator GEA Badge Flat Chrome
