GDT635HSR6SS ESCUTCHEON & DOOR ASSEMBLY

GDT635HSR6SS ESCUTCHEON & DOOR ASSEMBLY

Written by

in

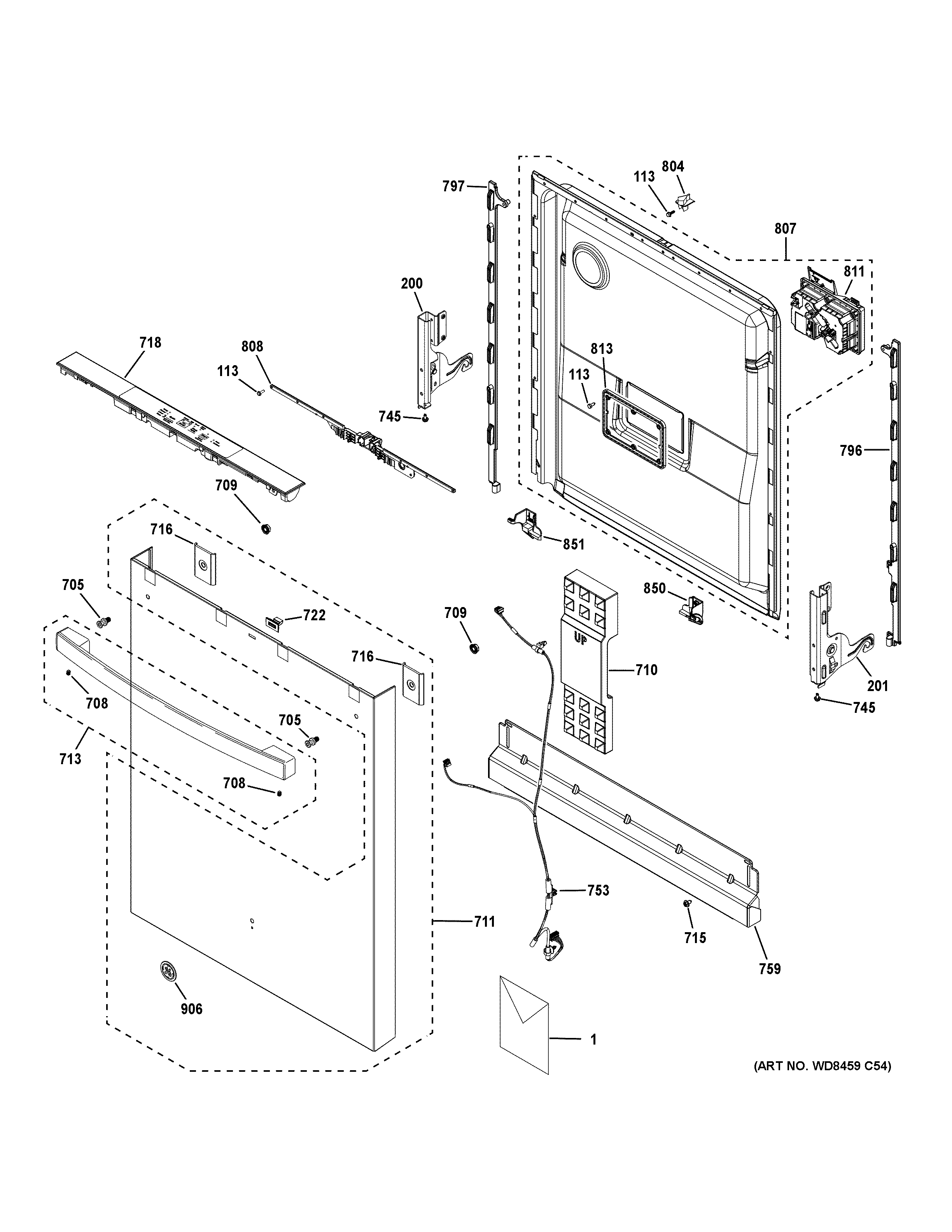

GDT635HSR6SS ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1PM OWNERS MANUAL
1PM QUICK OWNERS MANUAL
1PM INSTALL INSTRUCTIONS
113WD01X27719 GE Screw PL HXW 8-18 1/2
200WD01X27721 GE Dishwasher Door Hinge Assembly Left
201WD01X27720 GE Dishwasher Door Hinge Assembly Right
705WD02X30020 GE Dishwasher Door Handle Fastener
708WR01X11014 GE Refrigerator Set Screw
709WD02X25303 GE Lock Nut 5/16-18 x 1/2"
710WD01X29918 GE Door Foam Block
711WD27X30338 GE Dishwasher Outer Door Stainless Steel P
713WD09X30021 GE Dishwasher Stainless Steel Door Handle
715WD02X10220 GE Dishwasher Hex Head 10-32 3/8" Screw
716WD02X30678 GE Handle Bracket
718WD21X33551 GE Console Cover And Configured U
722WD01X29998 GE Door Lens
745WD01X22514 GE Dishwasher Screw 10-32 GX IHXW 9/16 S
753WD21X32718 GE User Interface Harness
759BLACK TOE KICK
796WD01X22836 GE Dishwasher Right Hand Attach Strip
797ATTACHMENT STRIP LH
804WD13X10071 GE Dishwasher Door Strike
807WD27X30353 GE Stainless Steel Inner Door
808WD13X22837 GE Dishwasher Top Strip Attachment
811DETERGENT MODULE
813WD12X10462 GE Dishwasher Detergent Plate
850WD01X26418 GE Dishwasher Right Hand Door Trim
851WD01X26419 GE Dishwasher Door Trim Left Hand
906WR04X29375 GE Refrigerator GEA Badge Flat Chrome
