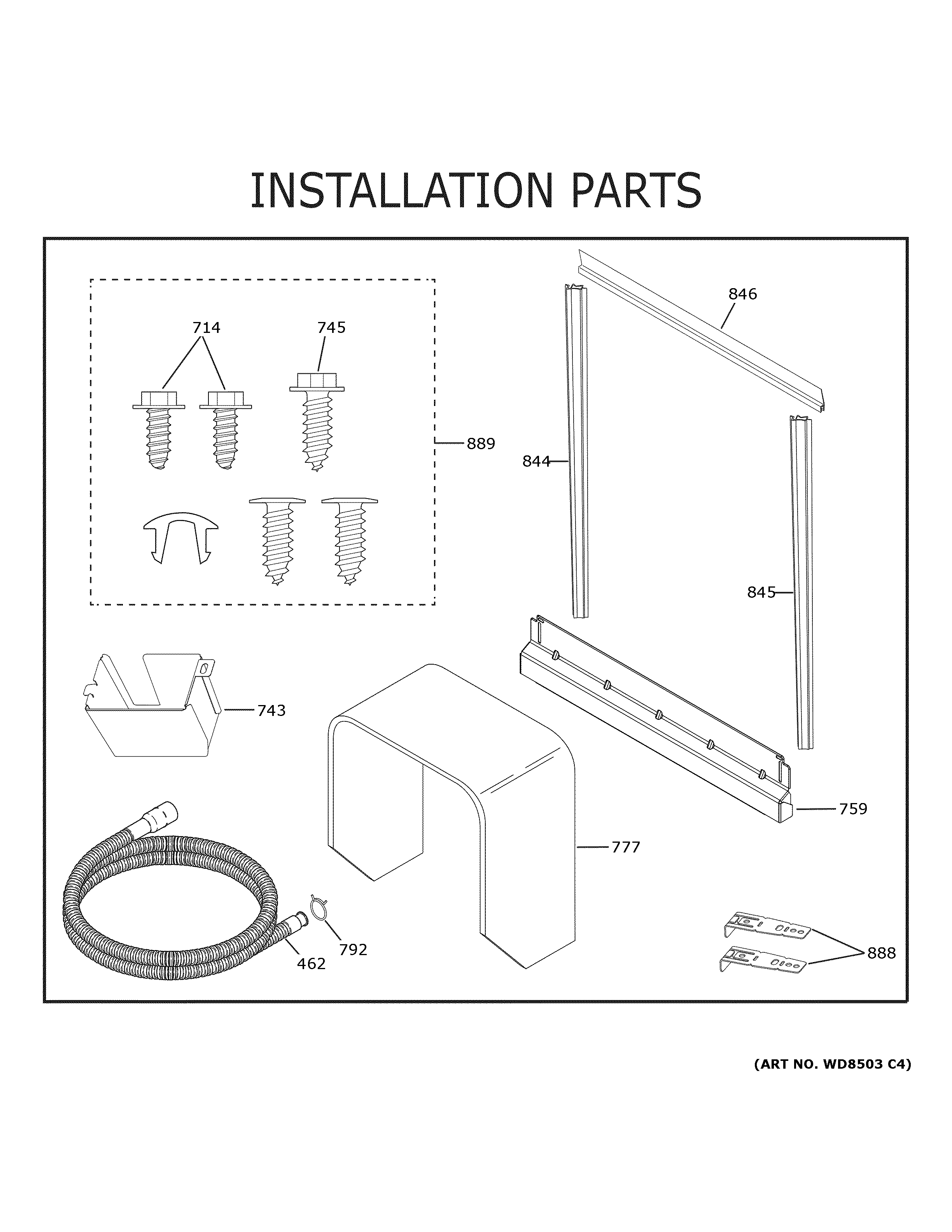

GDT665SGN2WW INSTALLATION PARTS

GDT665SGN2WW INSTALLATION PARTS

Written by

in

GDT665SGN2WW INSTALLATION PARTS

Products

PositionProduct
462DRAIN TUBE ASM
714WD02X10160 GE Screw
743WD12X10412 GE Dishwasher Wiring Cover
745WD01X22514 GE Dishwasher Screw 10-32 GX IHXW 9/16 S
759WD27X26120 GE Dishwasher White Toekick Assembly
777WD30X28658 GE Dishwasher Tub Insulation Blanket
792WD01X10104 GE Dishwasher Hose Clamp
844WD08X20208 GE Dishwasher Tub Trim
845WD08X20207 GE Dishwasher Tub Trim
846WD08X20209 GE Dishwasher Tub Trim
888WD01X21740 GE Dishwasher Countertop Mounting Bracket
889CT SCREW ASM
