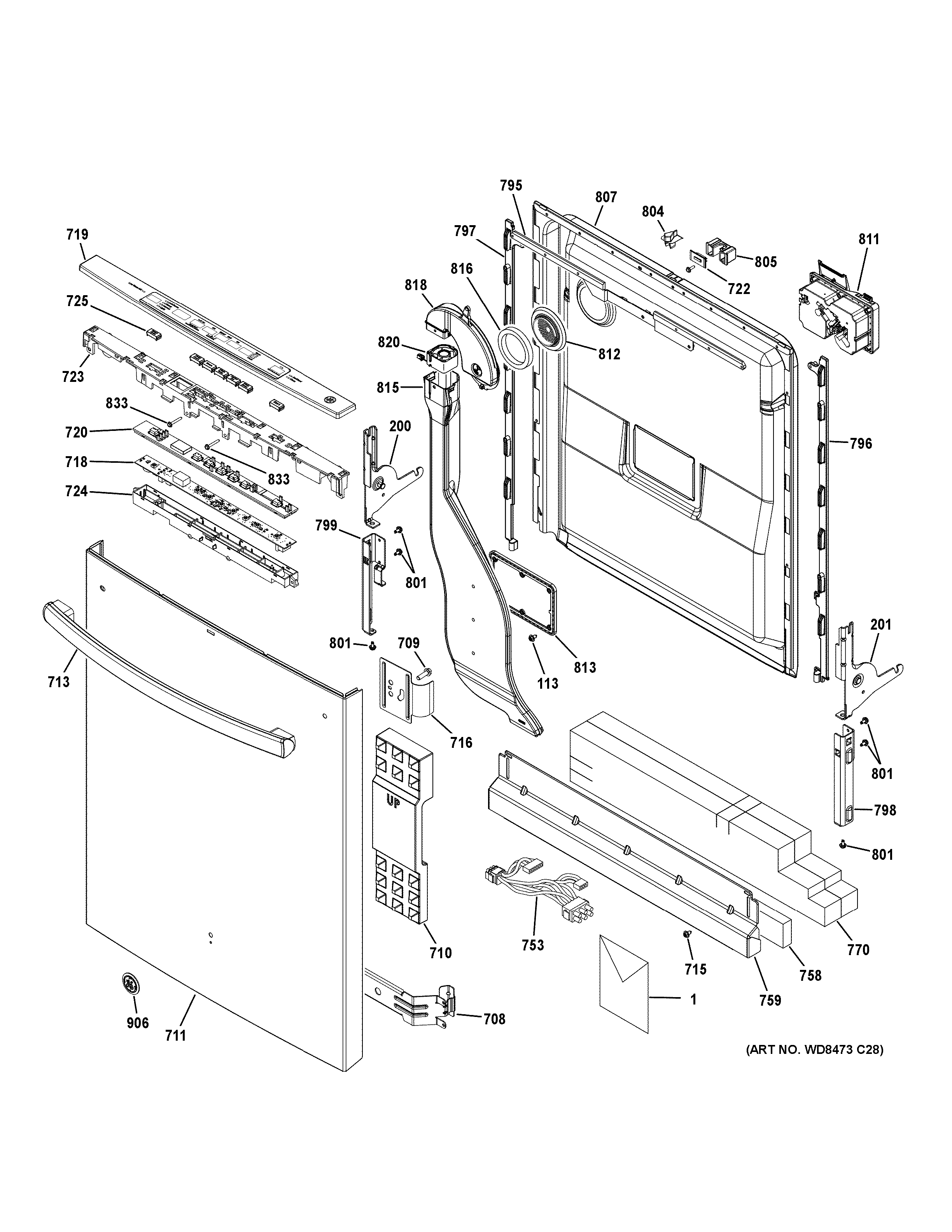

GDT680SGH4BB ESCUTCHEON & DOOR ASSEMBLY

GDT680SGH4BB ESCUTCHEON & DOOR ASSEMBLY

Written by

in

GDT680SGH4BB ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1SCR 1/4-20 BT CB .563 ZN
1PM OWNERS MANUAL
1INSERT MINI MANUAL
1PM MINI-MANUAL
1PM INSTALL INSTRUCTIONS
113WD02X10067 GE Dishwasher Stainless Steel Screw 8-16 HXW
200WD14X20129 GE Dishwasher Left Door Hinge Assembly
201WD14X20128 GE Dishwasher Right Door Arm Hinge Assembly
708WD30X10045 GE Dishwasher Door Brace Assembly
709WH02X10123 GE Screw 1/4-20 TPT
710WD01X10585 GE Dishwasher Door Foam Block
711WD34X20529 GE Dishwasher Outer Door Assembly Kit
713WD09X10086 GE Dishwasher Door Handle Assembly
715WD02X10220 GE Dishwasher Hex Head 10-32 3/8" Screw
716WD01X20135 GE Dishwasher Handle Bracket
718WD21X22177 GE Dishwasher Top User Interface
719BEZEL & CVR CONSOLE ASM
720SILICONE LIGHT PIPE
722WD09X20066 GE Dishwasher Lens and Adhesive Assembly
723WD12X20184 GE Dishwasher Top Control Console
724WD12X10470 GE Dishwasher Bottom Housing
725WD09X22799 GE Dishwasher Button and Graphics
753WD21X20149 GE Dishwasher Door Harness Assembly
758WD27X21334 GE Insulation
759TOE KICK
770WD01X21775 GE Dishwasher Bag Insulation Assembly
795WD01X10639 GE Dishwasher Top Attachment Strip
796WD01X22836 GE Dishwasher Right Hand Attach Strip
797ATTACHMENT STRIP LH
798WD01X22513 GE Dishwasher Hinge Support Bracket
799WD01X22512 GE Dishwasher Hinge Support Bracket
801WD01X22514 GE Dishwasher Screw 10-32 GX IHXW 9/16 S
804WD13X10071 GE Dishwasher Door Strike
805WD13X22837 GE Dishwasher Top Strip Attachment
807DOOR INNER SS
811DETERGENT MODULE
812WD12X10472 GE Dishwasher Dark Gray Vent
813WD12X10462 GE Dishwasher Detergent Plate
815WD12X20218 GE Dishwasher Vent Conduit Assembly
816DOOR VENT SEAL
818WD35X20856 GE Dishwasher Vent and Condenser Fan Models
820WD24X20256 GE Dishwasher Vent Fan Assembly
833WD02X20140 GE Dishwasher Screw 10-16 PL PNT 2.25"
906WR04X10181 GE Refrigerator Dishwasher Nameplate Badge
