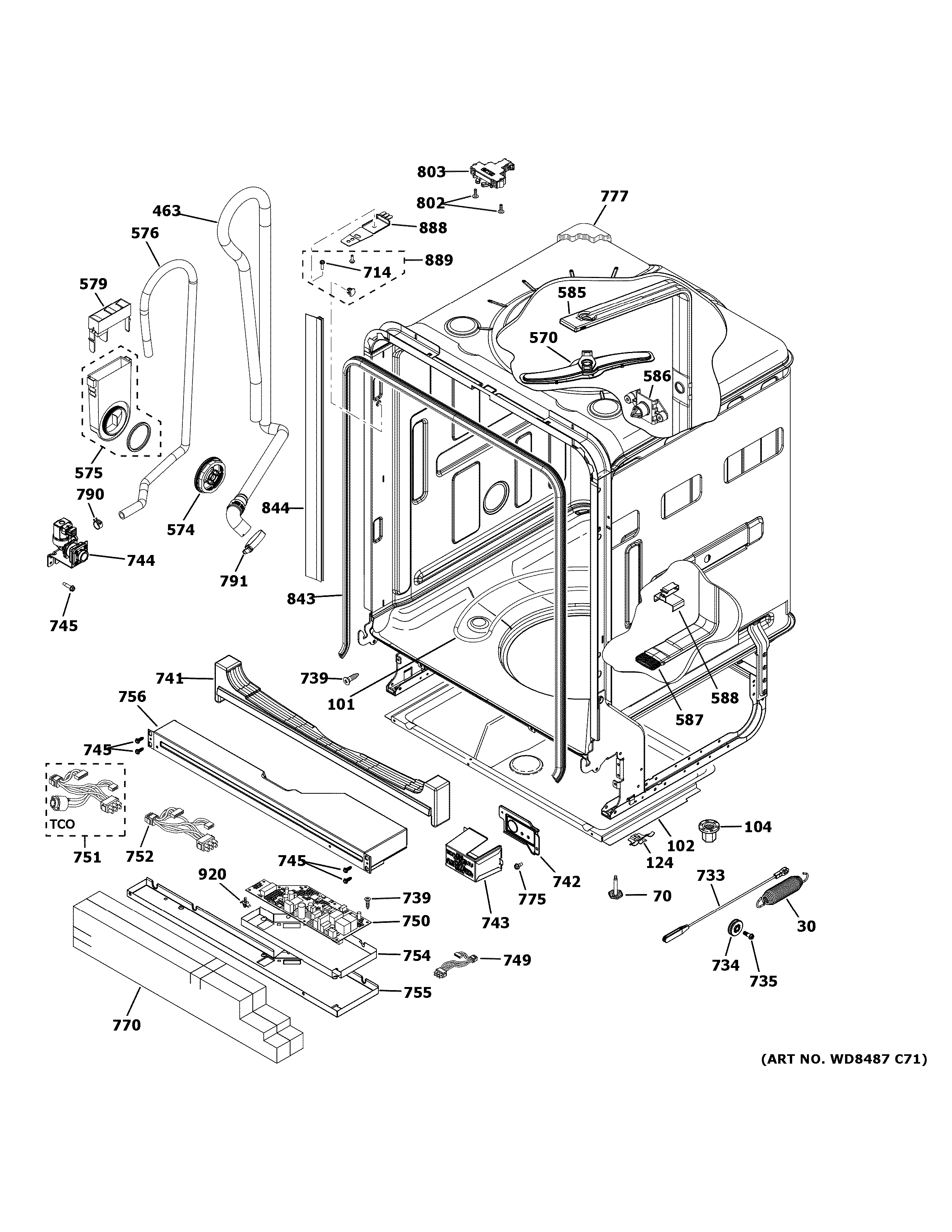

GDT680SSH2SS BODY PARTS

GDT680SSH2SS BODY PARTS

Written by

in

GDT680SSH2SS BODY PARTS

Products

PositionProduct
30SPRING DOOR
70WD02X31882 GE Leveling Leg
101HEATING ELEMENT
102WD18X20461 GE Dishwasher Leak Pan
104WD01X10070 GE Dishwasher Nut
124WD18X20464 GE Dishwasher Leak Pan Clip
463HIGH LOOP DRAIN HOSE
570WD35X20794 GE Dishwasher Upper Wash Arm Assembly
574WD49X25081 GE Dishwasher Fill Funnel Service Kit
576WD24X10064 GE Dishwasher Fill Hose
579WD12X20834 GE Dishwasher Fill Funnel Cap
585CONDUIT MAIN ASM
586WD12X20118 GE Dishwasher Docking Port Stainless Steel
587WD08X10098 GE Dishwasher Conduit Seal
588SHIELD CONDUIT
714WD02X10160 GE Screw
733WD01X10569 GE Dishwasher Door Cable
734WD16X21836 GE Dishwasher Pulley
735WD02X10206 GE Dishwasher Pulley Screw
739WZ5X158D GE Screw Package of 12
741WD01X23558 GE Dishwasher Front Tub Spacer
742WD12X25060 GE Junction Box Bracket Assembly
743WD12X10412 GE Dishwasher Wiring Cover
744WATER VALVE AND HARNESS SE
745SCR 10-32 TT HXW 14/25 S
749HARNESS ASM JUMPER
750WD21X22276 GE Dishwasher Control Board Kit
751WD49X23781 GE Dishwasher Water Circulation Pump Assembly
752WD21X20124 GE Dishwasher Harness Assembly Direct Connect
754SHIELD DIELECTRIC
755WD30X21714 GE Dishwasher Bottom Control Box
756WD27X10390 GE Dishwasher Control Box
770WD01X21775 GE Dishwasher Bag Insulation Assembly
775WD2X5166 GE Dishwasher Screw
777INSULATION TUB BLANKET
790WH1X2036 GE UNIX Clamp
791WD01X24246 GE Dishwasher Clamp
802WR01X10065 GE Screw
803WD21X10490 GE Dishwasher Standard Tub Side Door Latch
843WD08X22095 GE Dishwasher Tub Gasket
844WD01X31618 GE Dishwasher Tub Trim Kit
888WD01X21740 GE Dishwasher Countertop Mounting Bracket
889CT SCREW ASM
920WD01X21975 GE Dishwasher Control Board Clip
