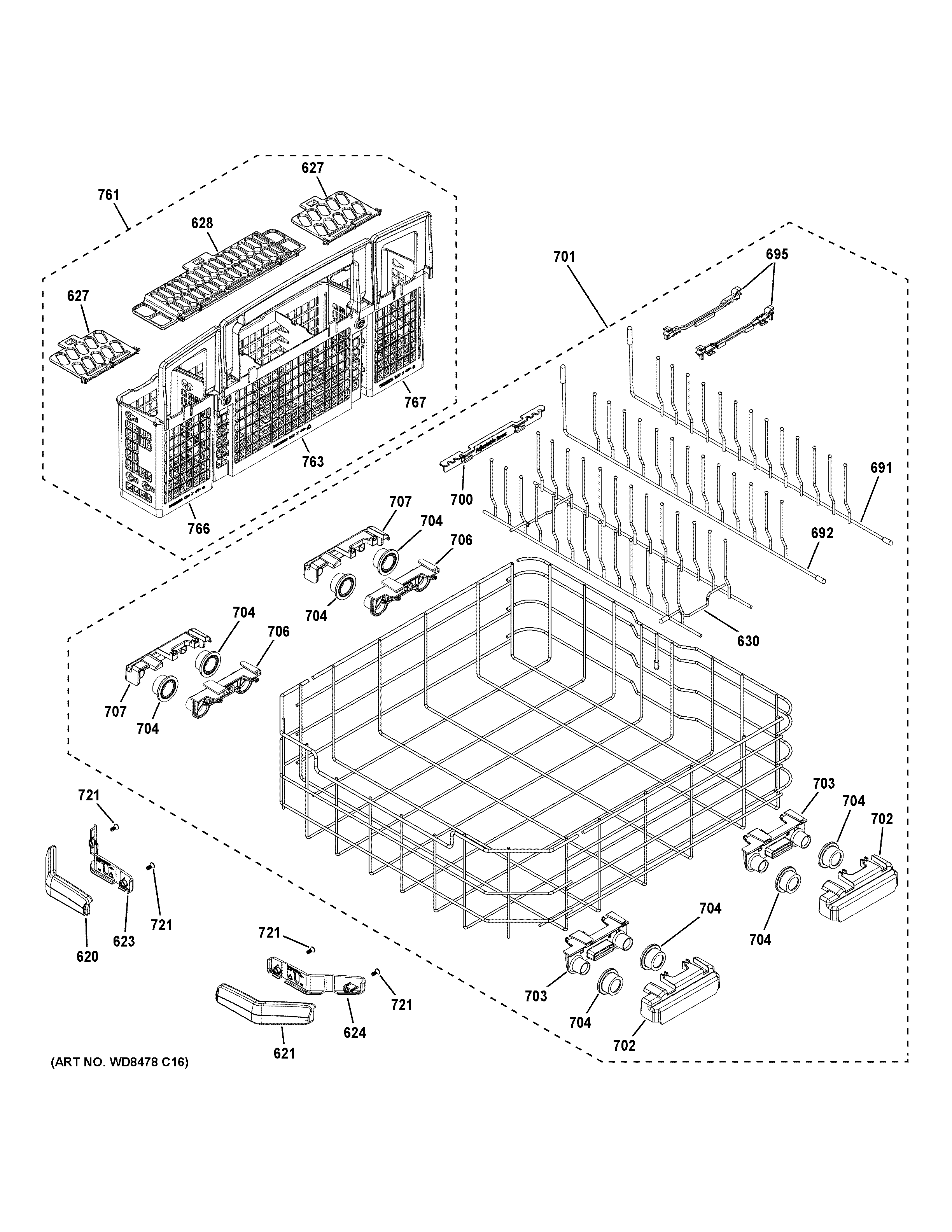

GDT680SSH2SS LOWER RACK ASSEMBLY

GDT680SSH2SS LOWER RACK ASSEMBLY

Written by

in

GDT680SSH2SS LOWER RACK ASSEMBLY

Products

PositionProduct
620COVER HANDLE FRONT
621WD09X20167 GE Dishwasher Front Cover Handle
623COVER HANDLE REAR
624COVER HANDLE REAR
627LID BASKET SIDE
628WD28X20153 GE Middle Basket Lid
630TINE BLOCK COATED
691WD28X20165 GE Dishwasher Tine Assembly
692WD28X20164 GE Dishwasher Tine Assembly
695WD12X20171 GE Dishwasher Tine Clip
700WD28X20166 GE Dishwasher Tine Clip
701LOWER RACK
704WD12X26146 GE Dishwasher Lower Rack Roller
706RACK CARRIER AND ROLLER KIT
707COVER ROLLER
721WD02X20176 GE Dishwasher Stainless Steel 8-16 FLT Screw
761WD28X22867 GE Dishwasher Silverware Basket
