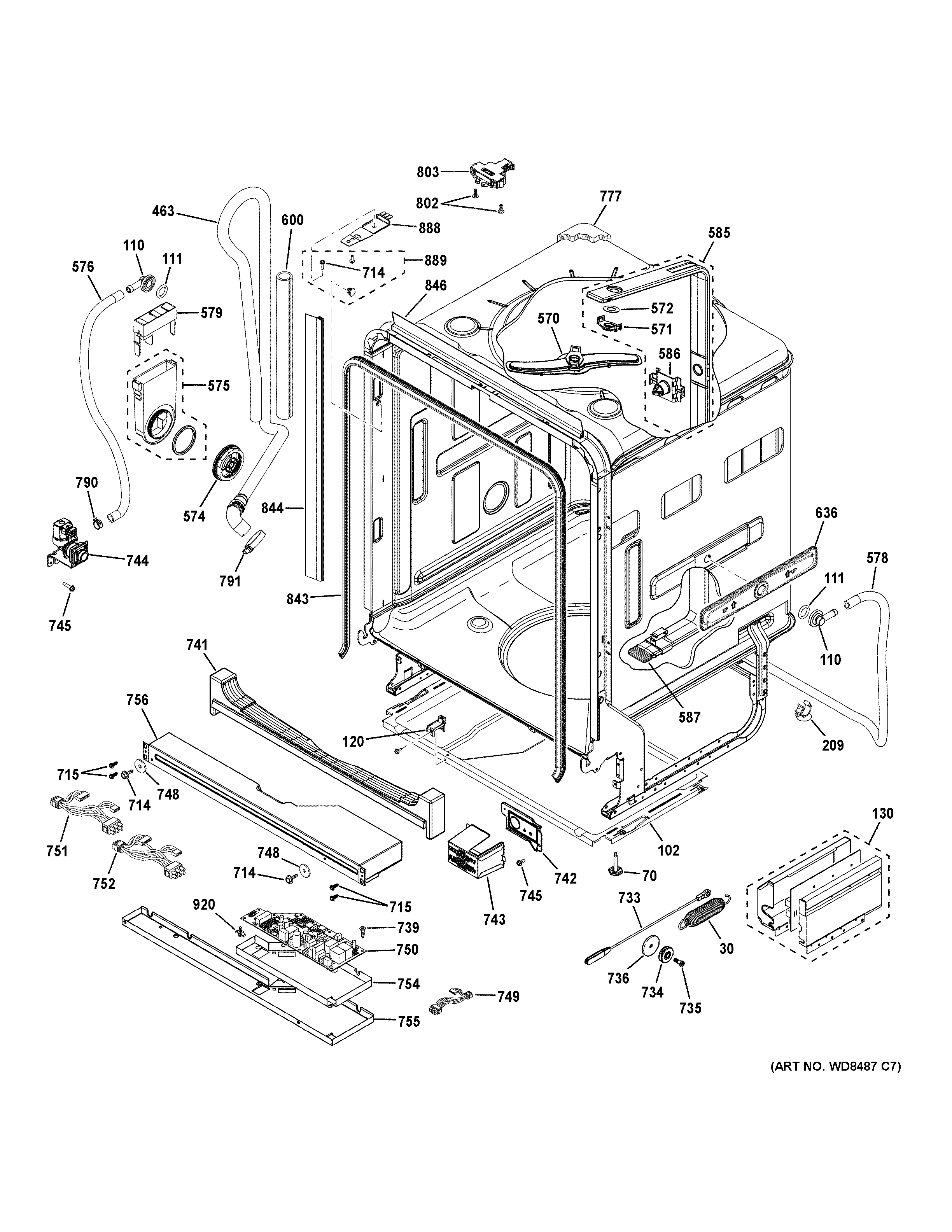

GDT740SIF8II BODY PARTS (1)

GDT740SIF8II BODY PARTS (1)

Written by

in

GDT740SIF8II BODY PARTS (1)

Products

PositionProduct
30WD03X20446 GE Dishwasher Door Spring
70WD02X31882 GE Leveling Leg
102WD18X20461 GE Dishwasher Leak Pan
111WD12X25419 GE Dishwasher Inlet Sideblaster
120WD21X20552 GE Dishwasher Leak Pan Sensor
130INVERTER ASM DISH PUMP
209WD01X22855 GE Dishwasher Clip Hose Side Blaster
463HIGH LOOP DRAIN HOSE
570WD22X22501 GE Dishwasher Upper Spray Arm Assembly
571WD12X22503 GE Dishwasher Upper Spray Arm
572WD08X22502 GE Dishwasher Gasket Upper Spray Arm
574WD49X25081 GE Dishwasher Fill Funnel Service Kit
576WD24X10064 GE Dishwasher Fill Hose
578WD21X20339 GE Dishwasher Fill Hose
585CONDUIT MAIN ASM
586WD12X20118 GE Dishwasher Docking Port Stainless Steel
587WD08X10098 GE Dishwasher Conduit Seal
600WD24X22856 GE Dishwasher Drain Hose Isolator
636WD22X21034 GE Dishwasher Side Blaster Assembly
714WD02X10160 GE Screw
715WD02X10220 GE Dishwasher Hex Head 10-32 3/8" Screw
733WD01X20332 GE Dishwasher Cable Assembly
734WD16X20592 GE Dishwasher Hinge Pulley
735WD01X21837 GE Dishwasher Screw 10-32
736WD01X20593 GE Dishwasher Friction Washer
739WZ5X158D GE Screw Package of 12
741WD01X23558 GE Dishwasher Front Tub Spacer
742WD12X25060 GE Junction Box Bracket Assembly
743WD12X10412 GE Dishwasher Wiring Cover
744WD15X22948 GE Dishwasher Water Inlet Valve
745WD01X22514 GE Dishwasher Screw 10-32 GX IHXW 9/16 S
748WD02X23297 GE Dishwasher Washer & Screw Assembly
749WD21X22847 GE Dishwasher Harness Assembly Jumper
750WD21X31911 GE Configured Main Board
751WD21X20588 GE Dishwasher AC Harness Assembly
752HARNESS ASM DC
754WD01X21974 GE Dishwasher Dielectric Shield
755WD30X21714 GE Dishwasher Bottom Control Box
756WD27X10390 GE Dishwasher Control Box
777TUB INSULATION
790WD01X22786 GE Dishwasher Hose Clamp
791WD01X24246 GE Dishwasher Clamp
802WR01X10380 GE Refrigerator Stainless Steel Screw 8-18 AB TSQ 5/8
803WD21X10490 GE Dishwasher Standard Tub Side Door Latch
843WD08X22095 GE Dishwasher Tub Gasket
844WD01X31618 GE Dishwasher Tub Trim Kit
888WD01X21740 GE Dishwasher Countertop Mounting Bracket
889CT SCREW ASM
920WD01X21975 GE Dishwasher Control Board Clip
