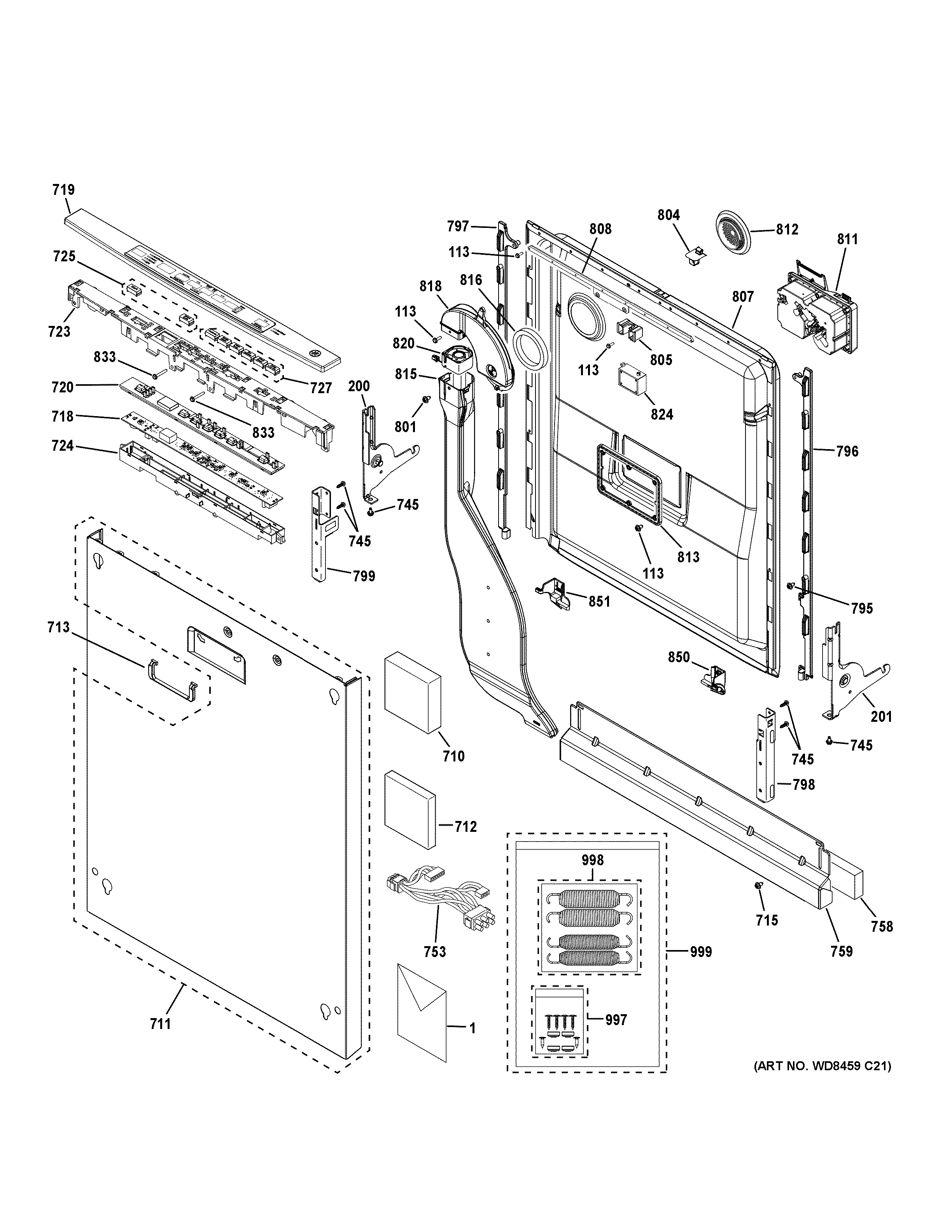

GDT740SIFAII ESCUTCHEON & DOOR ASSEMBLY

GDT740SIFAII ESCUTCHEON & DOOR ASSEMBLY

Written by

in

GDT740SIFAII ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1PM OWNERS MANUAL
1PM INSTALL INSTRUCTIONS
1PM MINI MANUAL
113WD02X10067 GE Dishwasher Stainless Steel Screw 8-16 HXW
200WD14X20128 GE Dishwasher Right Door Arm Hinge Assembly
201WD14X20129 GE Dishwasher Left Door Hinge Assembly
710BLOCK FOAM DOOR
711WD01X25659 GE Door Panel Trim
712BLOCK FOAM DOOR
713WD13X10027 GE Dishwasher Trim Panel Handle
715WD02X10220 GE Dishwasher Hex Head 10-32 3/8" Screw
718CONTROL UI LCD ASTN
719COVER CONSOLE ASM IML
720WD21X20299 GE Dishwasher Silicone Light Pipe
723TOP CONTROL CONSOLE
724WD12X20225 GE Dishwasher Bottom Housing
725BUTTON AND GRAPHICS ASM
727BUTTON AND GRAPHICS ASM
745WD01X22514 GE Dishwasher Screw 10-32 GX IHXW 9/16 S
753WD21X20149 GE Dishwasher Door Harness Assembly
758WD27X21334 GE Insulation
759TOE KICK
795WD02X22628 GE Dishwasher Plastite Screw T15 8-16
796WD01X22836 GE Dishwasher Right Hand Attach Strip
797ATTACHMENT STRIP LH
798WD01X22512 GE Dishwasher Hinge Support Bracket
799WD01X22513 GE Dishwasher Hinge Support Bracket
801WB02T10324 GE Oven Screw 6-20 GXB IHXW 3/8 NI
804WD13X10071 GE Dishwasher Door Strike
805WD13X22837 GE Dishwasher Top Strip Attachment
807WD31X29639 GE Dishwasher Inner Door
808WD01X20220 GE Dishwasher Top Attachment Strip
811WD12X32799 GE Dishwasher Detergent Module
812WD24X20586 GE Dishwasher Vent Cover
813WD12X10462 GE Dishwasher Detergent Plate
815WD12X20218 GE Dishwasher Vent Conduit Assembly
816DOOR VENT SEAL
818WD12X23336 GE Dishwasher Transition Assembly
820WD24X20331 GE Dishwasher Vent Fan Assembly
824SPEAKER
833SCR 10-16 PL TR 2.25 S
850WD01X26418 GE Dishwasher Right Hand Door Trim
851WD01X26419 GE Dishwasher Door Trim Left Hand
997WD02X32581 GE Door Hardware and Template Kit
998WD02X32580 GE Door Balance Kit
999WD35X20417 GE Trim Panel Accessory Kit
