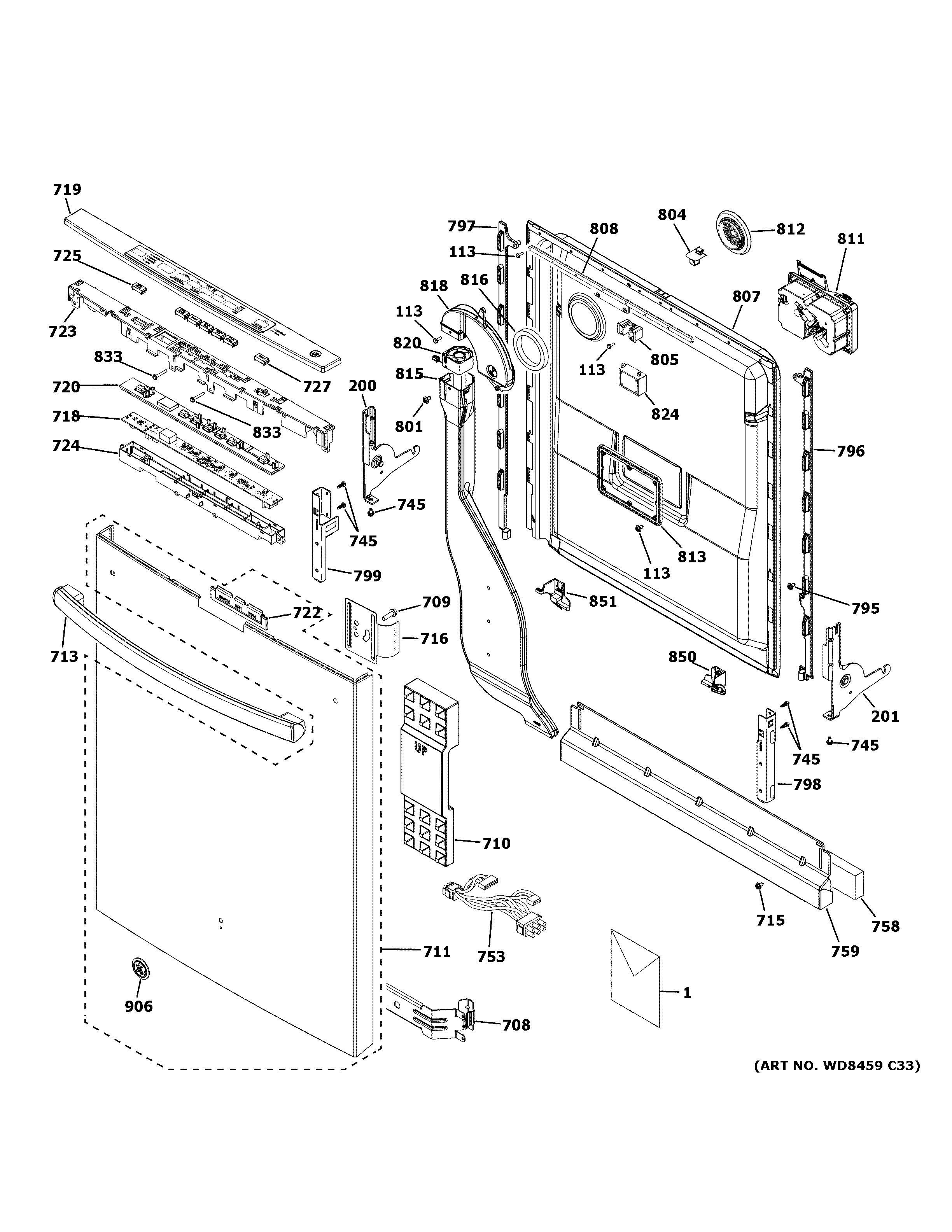

GDT740SSF0SS ESCUTCHEON & DOOR ASSEMBLY

GDT740SSF0SS ESCUTCHEON & DOOR ASSEMBLY

Written by

in

GDT740SSF0SS ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1INSERT MINI MANUAL
1PM INSTALL INSTRUCTIONS
1PM OWNERS MANUAL
1PM MINI-MANUAL
113WD02X10067 GE Dishwasher Stainless Steel Screw 8-16 HXW
200WD14X20128 GE Dishwasher Right Door Arm Hinge Assembly
201WD14X20129 GE Dishwasher Left Door Hinge Assembly
708WD30X10045 GE Dishwasher Door Brace Assembly
709WD01X20934 GE Dishwasher Screw 1/4-28 FL IHXW 15/16
710WD01X10585 GE Dishwasher Door Foam Block
711WD34X20532 GE Dishwasher Kit Door Assembly Outer
713WD09X21321 GE Dishwasher Profile Handle Assembly
715WD02X10220 GE Dishwasher Hex Head 10-32 3/8" Screw
716WD01X20135 GE Dishwasher Handle Bracket
718WD21X22074 GE Dishwasher Kit Service UI LCD ASTN
719WD34X24296 GE Dishwasher Console Cover & Button
720WD21X20299 GE Dishwasher Silicone Light Pipe
722WD09X20226 GE Dishwasher Lens and Adhesive Assembly
723WD12X20223 GE Dishwasher Top Control Console
724WD12X20225 GE Dishwasher Bottom Housing
725BUTTON AND GRAPHICS ASM
727BUTTON AND GRAPHICS ASM
745WD01X22514 GE Dishwasher Screw 10-32 GX IHXW 9/16 S
753WD21X20149 GE Dishwasher Door Harness Assembly
758WD27X21334 GE Insulation
759TOE KICK
795WD02X22628 GE Dishwasher Plastite Screw T15 8-16
796WD01X22836 GE Dishwasher Right Hand Attach Strip
797ATTACHMENT STRIP LH
798WD01X22512 GE Dishwasher Hinge Support Bracket
799WD01X22513 GE Dishwasher Hinge Support Bracket
801WB02T10324 GE Oven Screw 6-20 GXB IHXW 3/8 NI
804WD13X10071 GE Dishwasher Door Strike
805WD13X22837 GE Dishwasher Top Strip Attachment
807WD31X29639 GE Dishwasher Inner Door
808WD01X20220 GE Dishwasher Top Attachment Strip
811WD12X32799 GE Dishwasher Detergent Module
812WD24X20586 GE Dishwasher Vent Cover
813WD12X10462 GE Dishwasher Detergent Plate
815WD12X20218 GE Dishwasher Vent Conduit Assembly
816DOOR VENT SEAL
818WD12X23336 GE Dishwasher Transition Assembly
820WD24X20331 GE Dishwasher Vent Fan Assembly
824SPEAKER
833WD02X20140 GE Dishwasher Screw 10-16 PL PNT 2.25"
850WD12X22540 GE Dishwasher Right Hand Door Trim
851WD12X22541 GE Dishwasher Door Trim Left Hand
906WR04X10181 GE Refrigerator Dishwasher Nameplate Badge
