GDU4050XPW3 02 – TUB

GDU4050XPW3 02 – TUB

Written by

in

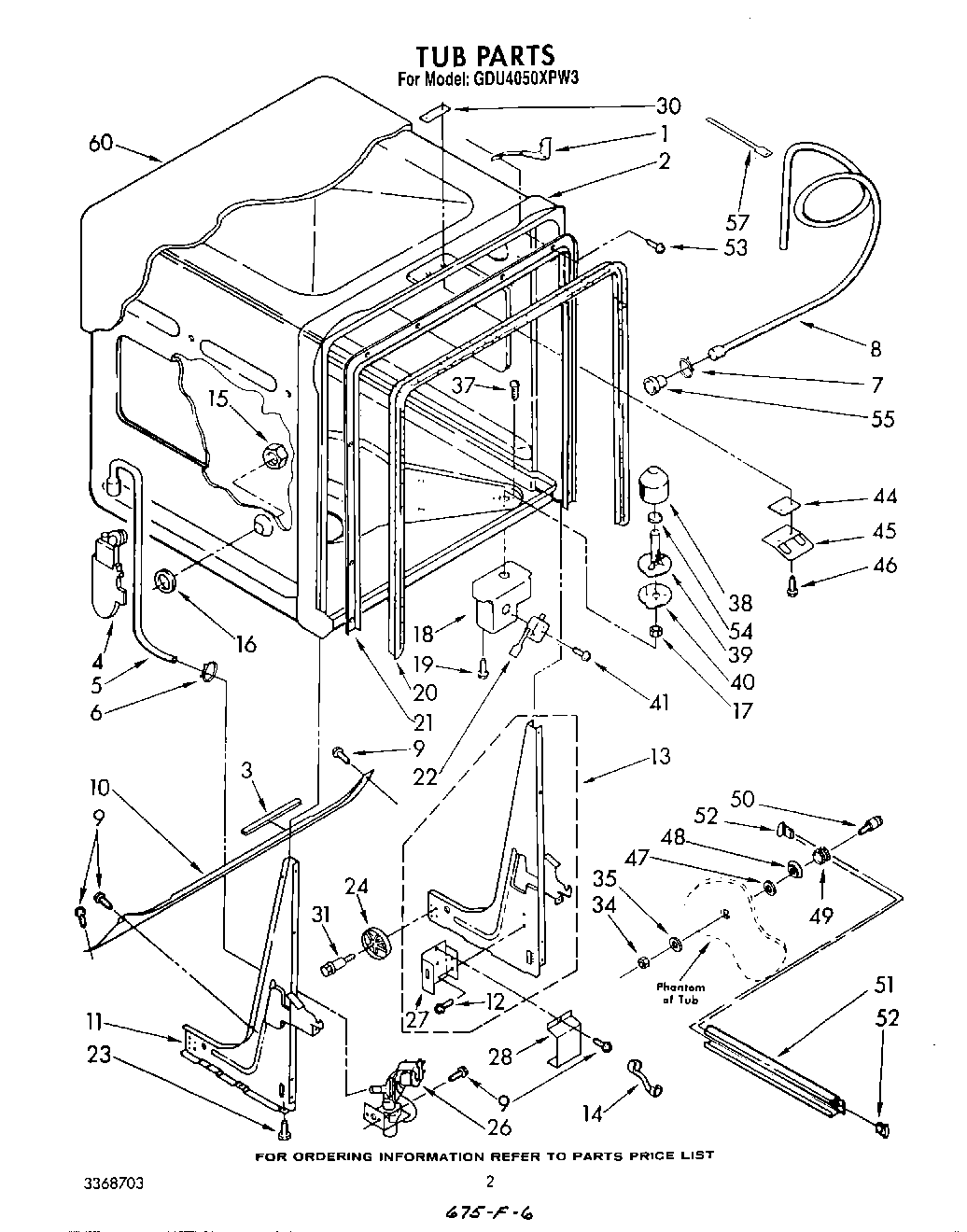

GDU4050XPW3 02 – TUB

Products

PositionProduct
WPL LIT3368703
WPL LIT304830
WPL LIT304282
WPL LIT3367228
1Bracket, Mounting (2)
2tub assembly
3Edge Protector
4Inlet, Water
5Hose, Inlet
6WP596669 Whirlpool Hose Clamp
7WP356138 Whirlpool Hose Clamp
8675544 Whirlpool Drain Hose
9WP90767 Whirlpool Screw
10Brace
11Leg & Hinge Assembly, L.H.
12Screw, 8-32 x 3/8 Hex Washer Head Slotted Tapping Ground (1)
13Leg & Hinge Assembly, R.H.
14Relief, Strain
15Nut, 7/18-16
16Gasket
17Nut
18Bracket, Overflow Switch
19Screw, 8 x 1/2 (3)
20Gasket
21Retainer, Gasket
22Switch, Pressure
238193716 Whirlpool Leveling Leg
24WP302819 Whirlpool Dishwasher Wheel
26Valve, Water Inlet
27Box, Terminal
28300068 Whirlpool Dishwasher Cover Assembly
30Nut, Twin Spring
31Screw, Shoulder
34Nut, Lock
35Washer (8)
37WP488729 Whirlpool Refrigerator Door Screw
38Float
39Standpipe, Overflow
40Gasket, Overflow
41Screw, 4-40 x 3/4
44Shim
45Strike
46WP308685 Whirlpool Microwave Screw
47Washer (8)
48Washer, Cup
49Roller, Rack Track
50Screw, Shoulder (8)
51Track (2)
52Endcap, Front or Rear (2)
53Screw, 8-18 x 5/8 (10)
54Gasket, Standpipe (2)
55WPL 301656
57WPW10144763 Whirlpool Tie Wire
60350956 Whirlpool Spray Assembly
60Enamal, Toast (1 Qt. Uncut)
60Paint, Spray (13 Oz.) (Platinum)
60Golden Harvest (Uncut)
60Golden Harvest
6072110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
60Toast
60WP72107 Whirlpool Touchup
60799344 Whirlpool Refrigerator Paint
6072017 Whirlpool Appliance Touch-Up Paint White
6072113 Whirlpool Touch-Up Paint
60Platinum (Uncut)
60WPL 72112
60Kit, Epoxy Patch (White)
60Tine Tip Repair Kit (Blue-Enough For Two Complete Dishracks)
60Vinyl Touch Up (Blue)
60W11086533 Whirlpool Dishwasher Shield
60Leveler (Thinner) (2oz.)
6072032 Whirlpool Touch Up Paint Black
60WP300096 Whirlpool Dishwasher Air Gap
60285006 Whirlpool Spray
60Enamel, Black (1 Qt. Uncut)
60350942 Whirlpool Spray Paint
60350930 Whirlpool White Spray Paint
