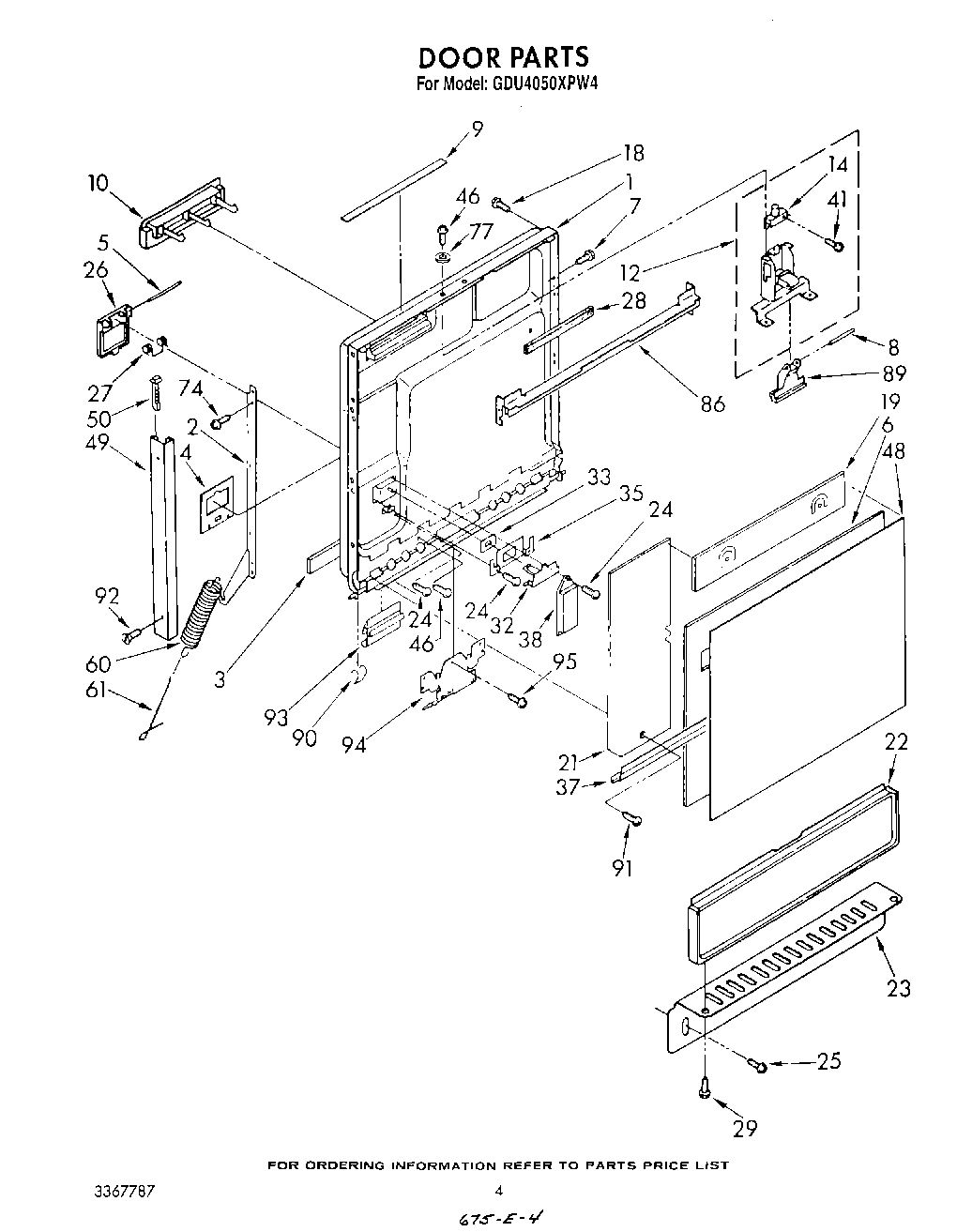

GDU4050XPW4 03 – DOOR

Products

Position	Product
1	Door, Inner
2	Support, Door (L.H.)
2	Support, Door (R.H.)
3	Gasket, Door
4	Barrier
5	4387043 Whirlpool Door Latch Kit
6	Spacer, Panel
7	WP489069 Whirlpool Compactor Screw
8	Pin, Pivot
9	Label, User Guide
10	Screen, Vent
12	Latch Assembly
14	Switch, Interlock
18	Screw, 8 x 1-7/8 (2)
19	Barrier, Console
21	Barrier, Door
22	WP3367793 Whirlpool Black Access Panel
23	Plate, Toe
24	WP304231 Whirlpool Dishwasher Screw
25	WP90767 Whirlpool Screw
27	WP8066018 Whirlpool Spring Assembly
28	Baffle
29	WP302868 Whirlpool Screw
32	Lever, Catch
33	Seal, Lever
35	Retainer
37	Edging, Panel
38	Actuator
41	Screw, 6-32 x 1
48	xPanel, Front
49	Trim, Door (L.H.)
49	Trim, Door R.H.
50	Clip, Trim Guard (2)
60	675611 Whirlpool Spring Assembly
61	WP716401 Whirlpool Dishwasher Retainer
74	WP488627 Whirlpool Refrigerator Screw
77	Washer (2)
86	Rail, Support
89	WPL 304408
90	Clip, Wire
91	W11693756 Whirlpool Screw Assembly
92	Screw, 8 x 1/2 (4)
93	Retainer, Clip
94	Shield, Harness
95	Screw, 8-18 x 5/8
